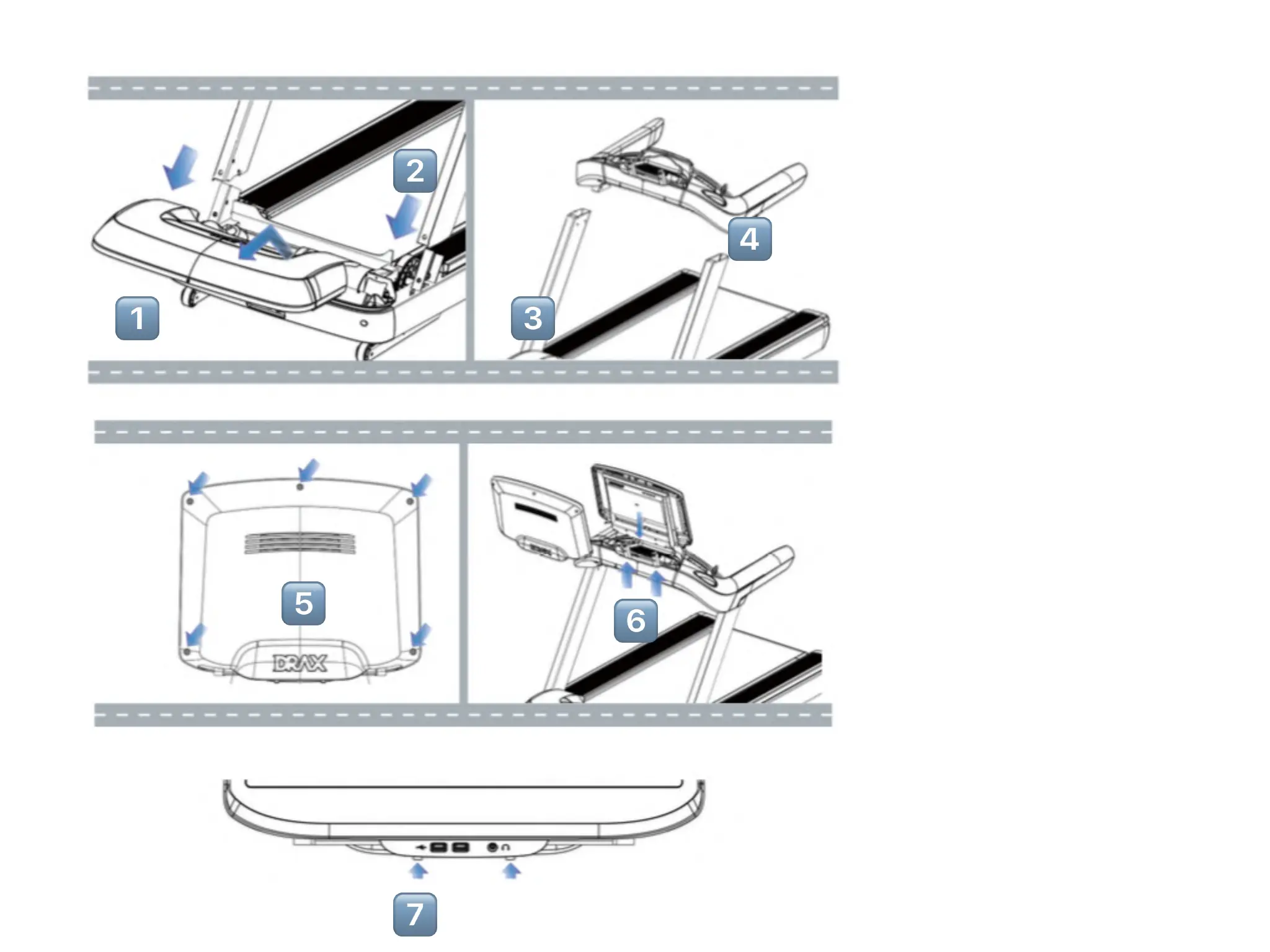

1. Remove motor cover
2. Connect cable set from
frame through left side support
post into console
3. Fasten both side support
post with bolts
4. Fasten console with bolts
5. Open back cover of console
6. Connect cable set from
console frame into console
7. Make sure plastic parts set
into original position before
fasten bolts.
[in case of new product
shipped from factory, no need
to proceed no. 5 ~ no. 7]
!
"
#
$
%
&
'
