4. Pull mode pin up through
bottom of membrane until it
snaps into place.
5. Fit membrane onto top of
pump connector, ensuring
that the lip lays flatly over the
edge, all the way around.
7. Place the membrane cap
over the membrane, and
snap into place to secure
the membrane.
8. To disassemble, follow all
steps in opposite order. When
removing duckbill valve, use
tab to pull valve free. DO NOT
PULL ON VALVE.
6. Hook the end of the handle
onto the mode pin and press
the middle of the handle
firmly onto the hinge on the
pump connector.

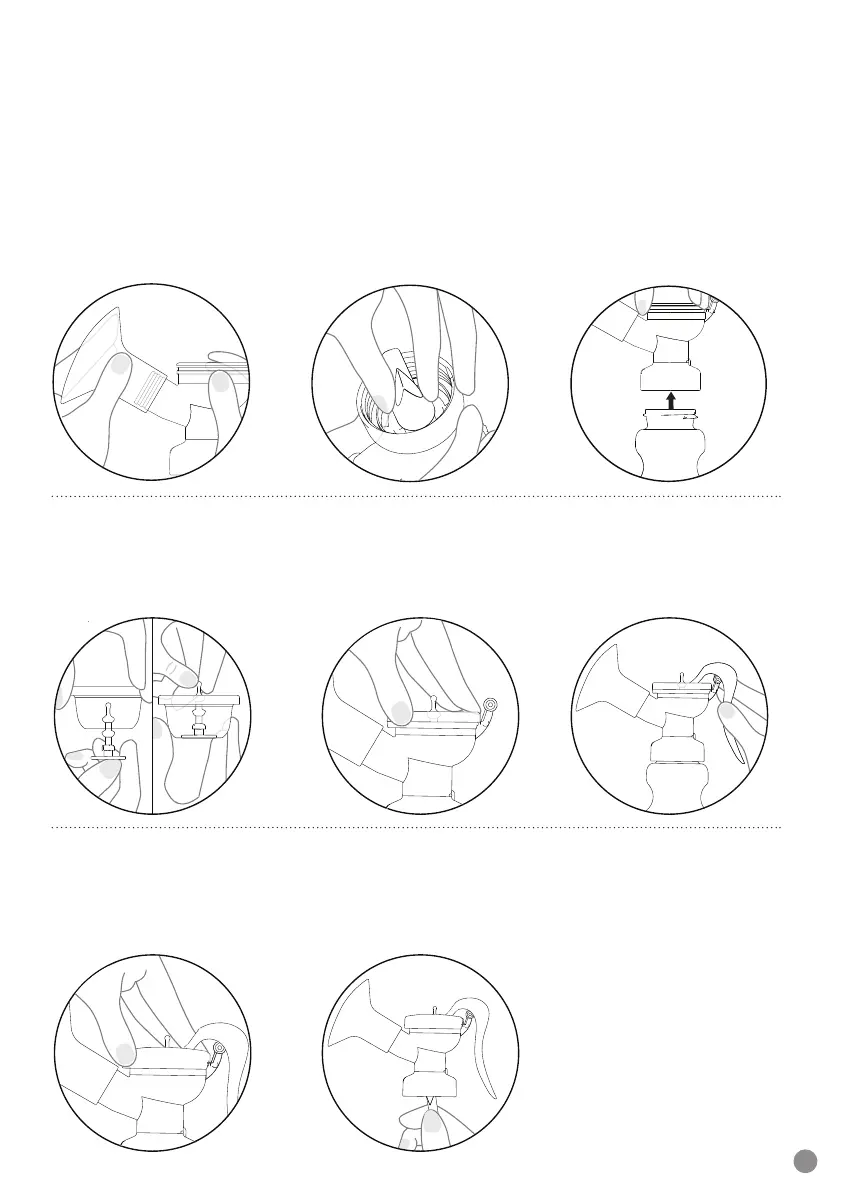

ASSEMBLY
Wash hands before touching & assembling pump.
ENSURE ALL PARTS ARE CLEAN & STERILIZED. LET PARTS COOL AND HANDLE CAREFULLY.
1. Position SoftShape
TM
Silicone Shield over the neck
of the pump connector.
Check that the shield has
been positioned in both rings
on the neck of the connector.
2. Secure duckbill valve
onto underside of pump
connector, making sure that
it has been pushed on all the
way. Check that slit on valve
can open completely.
3. Screw on vessel to connector.
4
