“ELEGANCE” Rev.4 Ver.2 07/2013
2
Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed
parts are included in the package by marking all the components on the “Detailed Diagram of
Shower Door Components”. Examine boxes and packages for shipping damage. If the unit has
been damaged, has a finishing defect, or is missing parts, please contact our customer support
department within 5 business days of the delivery date. Please note that DreamLine
TM
will not
replace any damaged products or missing parts free of charge after 5 business days or if the
product has been installed. Feel free to contact DreamLine
TM
if you have any questions.
2. Please note that you should consult your local building codes with questions on installation
compliance standards. Building and plumbing codes may vary by location, and DreamLine is
not responsible for code compliance standards for your project and will not accept any
returns.
3. If this unit is going to be installed in a new construction, install all of the required plumbing and
drainage before installing the shower. Use a competent and licensed (if required by local code)
plumber for all plumbing installation.
4. Prior to installation, ensure that the installation surface is leveled and solid and will be able to
support the total weight of the unit. Also, make sure the walls are at right angles. Irregular
installation surface level or improper angle of side walls will result in serious problems for your
installation. Please, note that some adjustments and drilling might be necessary during the
installation process.
5. Please, NOTE! The doors that are under 37¾” do not have out-of-plumb adjustment. Make
sure your walls are at right angles
6. a) If the width of your door is less than 37¾” and you are installing the door without stationary
glass, you only need to refer to (Diagram A) with (Packing List A).
b) If the width of your door is 37¼” and over, and you are installing the door and stationary
glass with glass shelves, you have to use (Diagram A and B) with (Packing List A and B) to
complete the installation

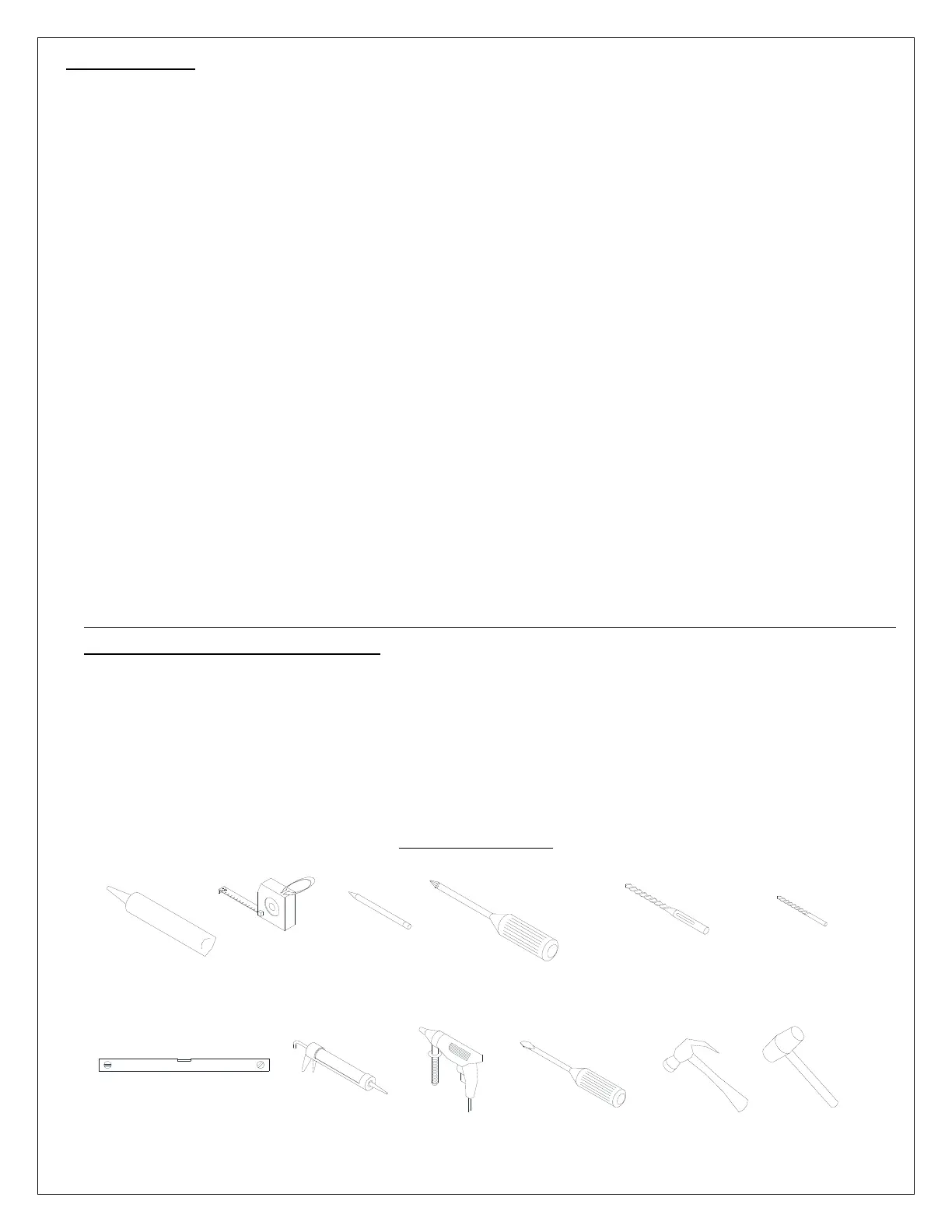

Tools Required
Hammer
Electric
Drill
Caulk
Gun
Level
Phillips
Screwdriver
Pencil
Measure
Tape
Caulk
Drill bit
(Ø=5/16")
Drill bit
(Ø=3/16")
Flat
Screwdriver
Mallet
To Next Page
