Dreamline FLEX - Page 13

“FLEX” Enclosure Rev.1, Ver.3 03/2014
13
13. Attach Flanged Anti-water strip
(07) to the vertical edge of the
Stationary glass.
Cut Bottom Anti-water strip
(08) in two pieces to cover the
bottom edge of the door from
pivot to both sides of the Glass
door.
Attach both pieces of the
Bottom Anti-water strip to the
bottom edge of the Glass door.

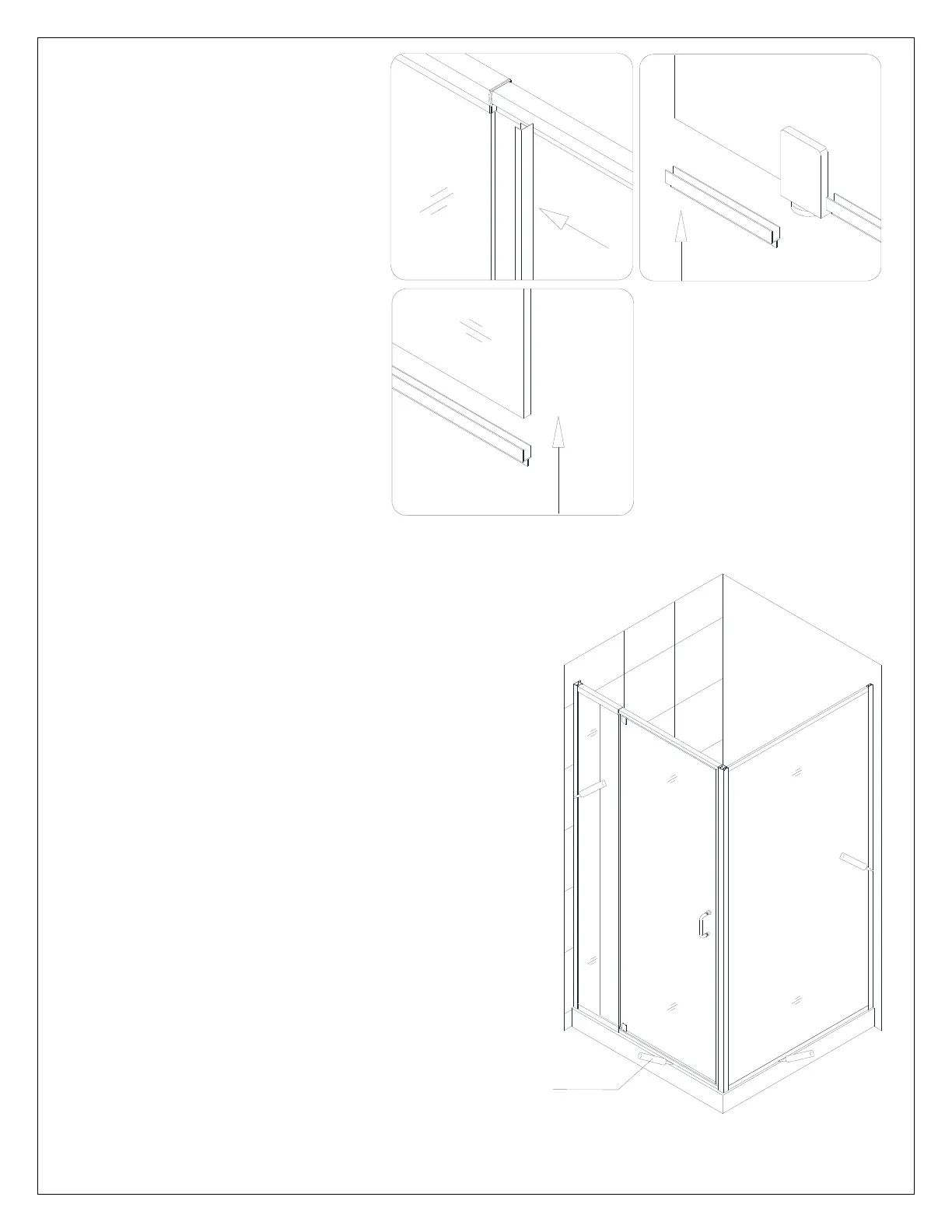

See Fig. 17 for details.
14. Apply the silicone along the connection edges of the
Wall profile (01), Return wall profile (11), bottom
Expanding rail and the base of the Return glass
panel (09) from both inside and outside the shower.
See Fig. 18 for details.
Fig. 17
Fig. 18
Waterproof
Silicone
1
2
3
Outside
