Dreamline FLEX - Page 12

“FLEX” Enclosure Rev.1, Ver.3 03/2014
12

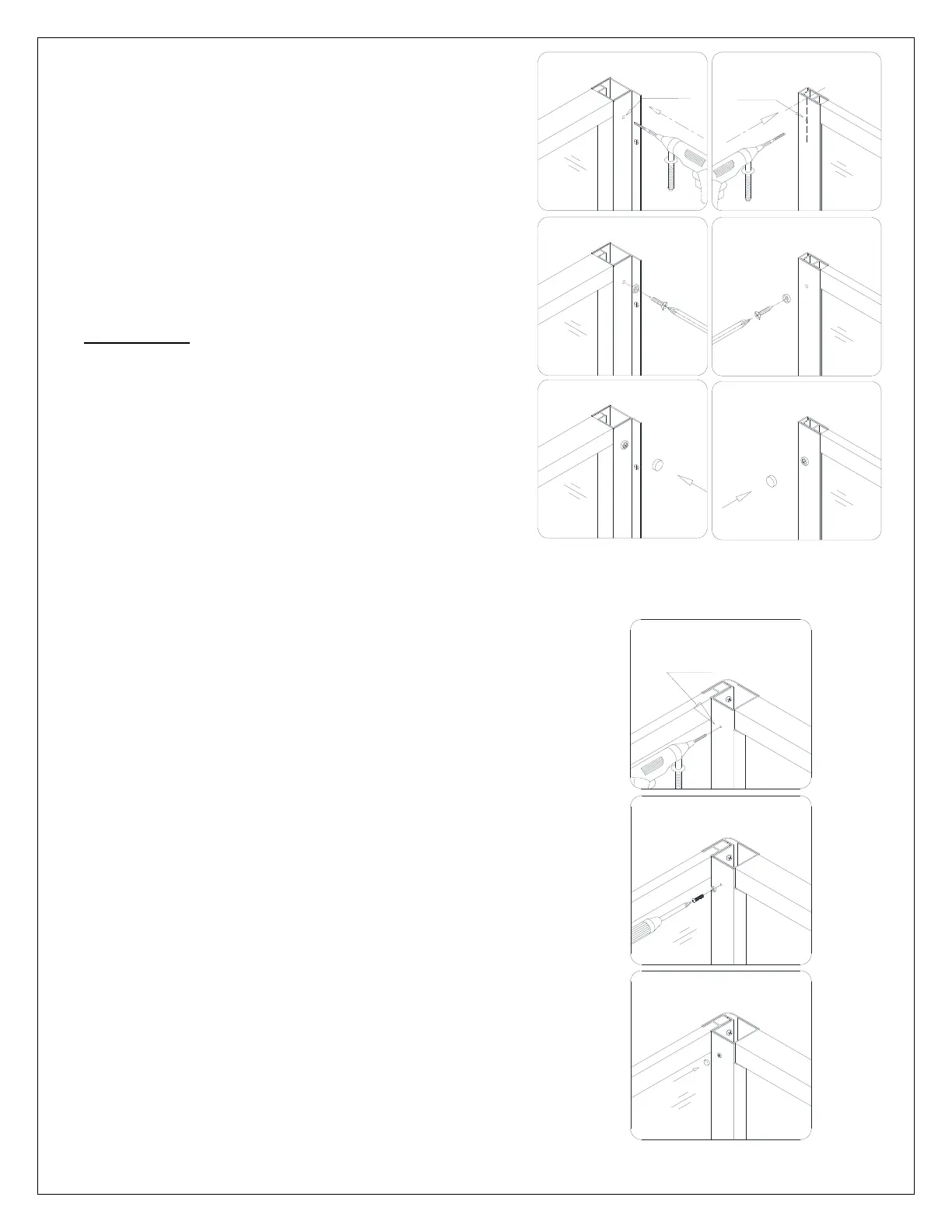

11. Do the final adjustments to the Door assembly
(02) and Return glass panel (09) if required. Open
and close the Glass door to make sure that the
magnetic strips are fully attracted to each other.
Drill holes into the aluminum profile of the Door
assembly through the predrilled holes in the Wall
profile (01) using an Ø 1/8” drill bit.
Drill holes into the aluminum profile of the Return
glass panel through the predrilled holes in the
Return wall profile (11) using an Ø 1/8” drill bit.
ATTENTION:
Do not drill the profiles throughout, only the
first layer.
Secure the Door assembly and the Return glass
panel inside the Wall profile and Return wall
profile using the Round head screws ST4.2×10
(04) with the raised white washers.
Cover the exposed screw heads with the
Decorative covers (06).
See Fig. 15 for details.
12. Drill holes into the aluminum profile of the Door assembly
(02) through the predrilled holes in the Corner profile (10)
using an Ø 1/8 drill bit.
Secure the Door assembly inside the Corner profile using
the Round head screws ST4.2×10 (04) with the raised white
washers. Cover the exposed screw heads with the Decorative
covers (06).
See Fig. 16 for details.
Fig. 15
Fig. 16
1
2
3
Ø 1
/
8”
1
2
3
4
5
6
Ø 1/8"
Ø 1/8"
