Shower Enclosure Installation
NOTE: The installation of this shower enclosure
requires two installers.
NOTE: The shower enclosure can be installed on the
shower base or custom threshold.
1. Prior to the Shower door installation, Shower base
installation and plumbing must be completed.
See Fig. 1 for details.
2. The width of the shower enclosure is adjustable
and can be adjusted to the size of your shower
base or custom threshold.
Mark position of the Wall profile (01) and the
Return wall profile (11) on the wall according
to the model size and dimensions provided in
the size table.
Place the Wall profile and the Return wall
profile onto the Shower base or threshold
against the finished wall and level it vertically.

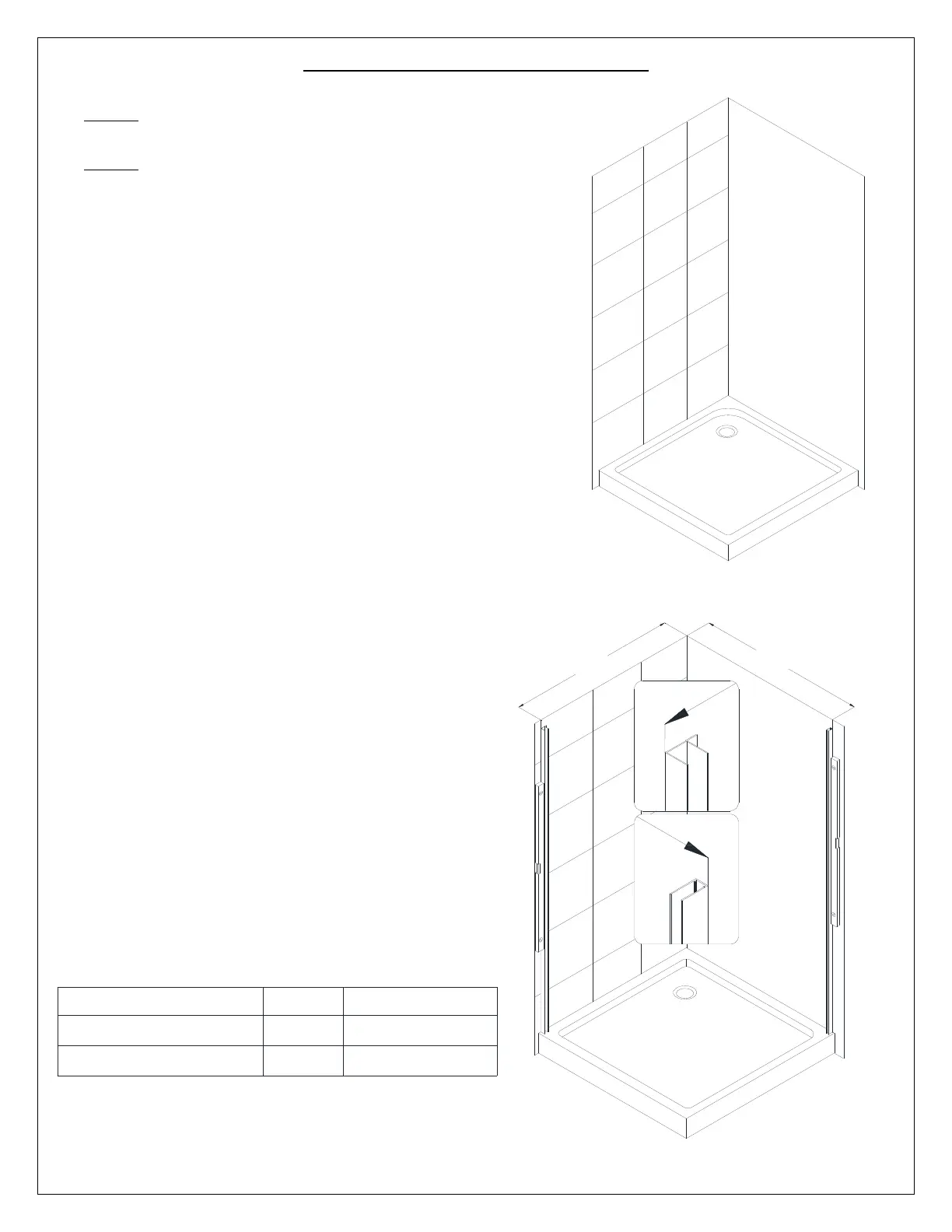

See Fig. 2 and table below for details.
Model No.
W1
W2
SHDR-2230300-RT-01
SHDR-2234340-RT-01
30 1/2"
34 1/2"
28 1/2" - 32 1/2"
32 1/2" - 36 1/2"
Fig. 2
Fig. 1
2
1
W1
W2
