5. Slide the Corner profile (10) over the aluminum vertical edge of
the Return glass panel (09). Drill the holes into the aluminum
profile on the Return glass panel using an Ø 1/8 drill bit through
the predrilled holes in the Corner profile.
Secure the Corner profile to the Return glass panel with the
Round head screws ST4.2×10 (04). Set this Return glass panel
assembly aside.

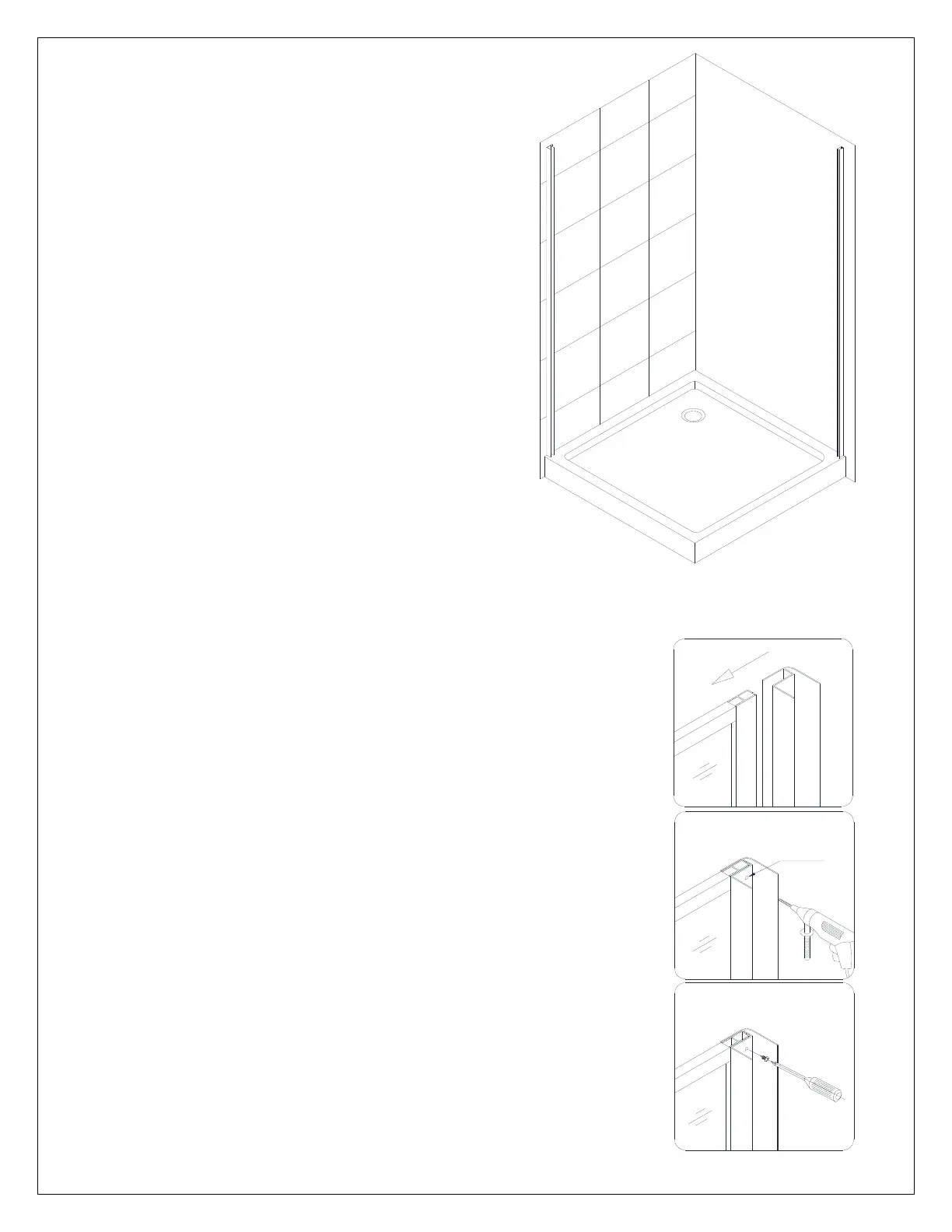

See fig. 6 and Fig. 7 for details.
1
2
3
Ø 1/8"
Fig. 6
Fig. 5
