Dremel Multi-Vise 2500 - Service Parts and Diagram

-7-
CODE
PART
NO. NO. DESCRIPTION
1 2610945903 Base Screw Assembly
2 2610945904 Base Assembly
3 2610945905 Fixed Vise Assembly
(Service only)
4 2610945906
Clamping Vise Assembly
(Service only)
5 2610945907
Jaw Pads (Service only)
CODE
PART
NO. NO. DESCRIPTION
6 2610945908 Ball and Stem Assembly
7 2610934368 Socket
8 2610934393 Union Nut
9 2610917207 Wrench
10
2610934392
Rotary Tool Holder
11 2610935595 Bar Brake Thumbscrew
12
2610934367
Base Nut

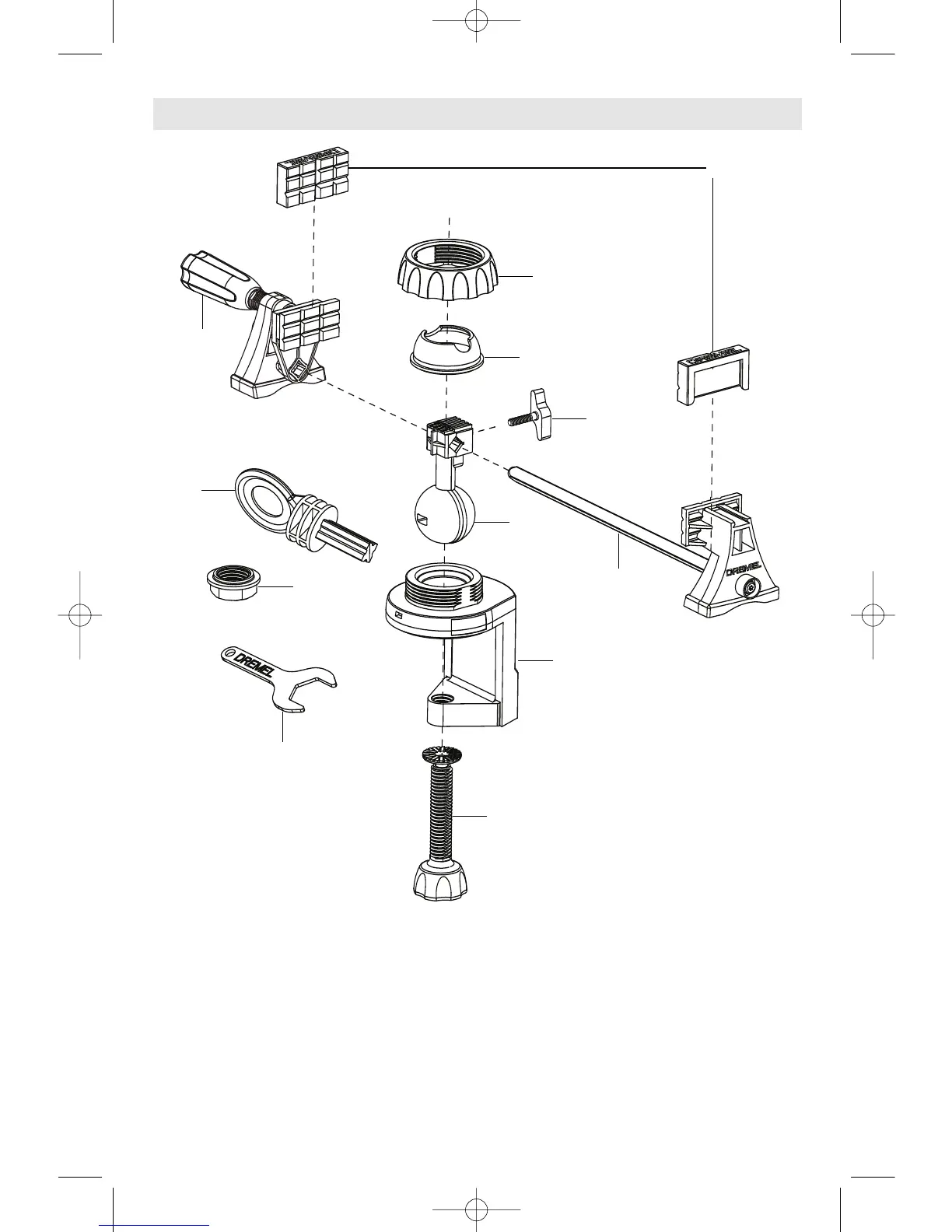

Service parts & diagram
1
2
11
7
12
3
4
9
5
6
8
10
DM 2610944292 01-07 1/16/07 4:14 PM Page 7
