-9-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive
safety measures reduce the risk of starting the tool accidentally.
US40 Dremel
®
Ultra-Saw
Model number US40
* Rated speed n 13,000/min
* Max. abrasive wheel diameter 4" (102 mm)
Amperage rating 7.5 A
Wheel arbor .433" (11 mm)
Max. cutting depth 3/4" (21.5 mm)
Voltage rating 120V 60Hz

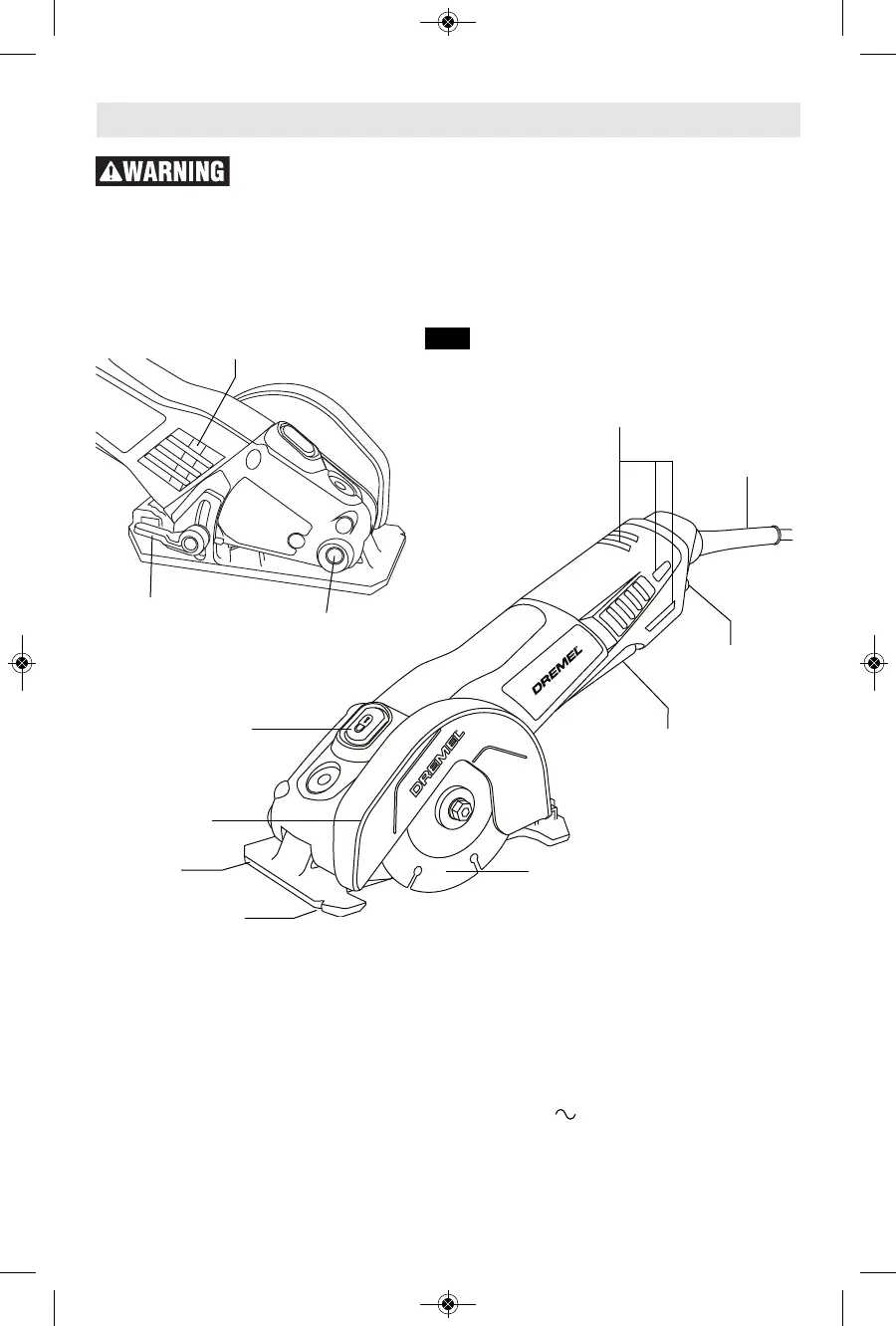

FIG. 1
* Accessory speed rating must be equal to or greater than the tool’s speed rating. Do not
exceed the recommended wheel diameter.
NOTE: For tool specifications refer to the nameplate on your tool.
Spindle Lock
Foot
Ventilation
Openings
Abrasive Wheel
Ventilation Openings
Paddle Switch with
"Lock-OFF" feature
Cord
"Lock-On" Button
Depth
Adjustment
Lever
Dust Port
Flush Cut Foot
Line Guide
INTENDED USE
This Dremel US40 tool is intended for cuts in wood, plastic, metal, drywall, fiberboard and tile
using the applicable Ultra-Saw accessories.
