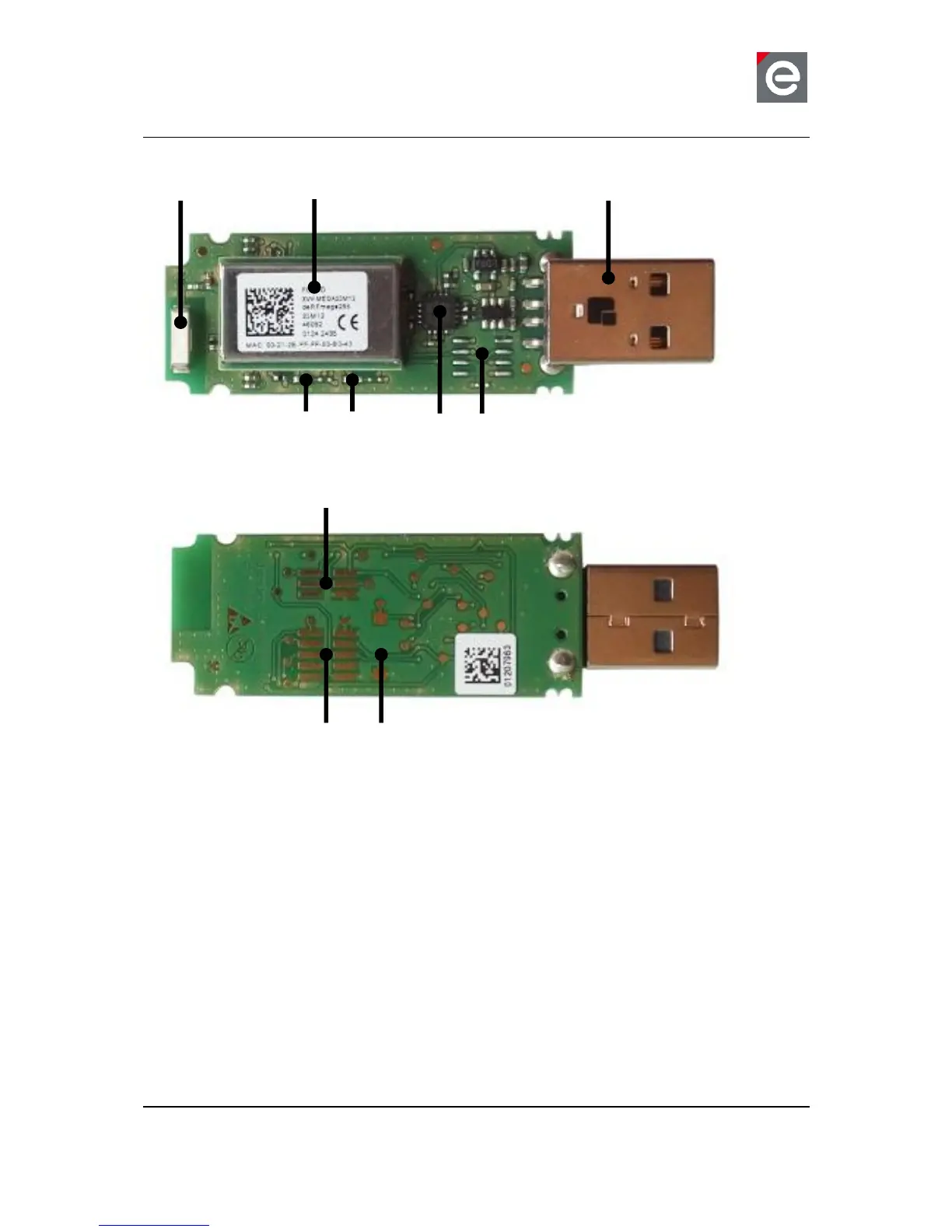

Figure 1: ConBee in detail
3.2. How does the USB Dongle work?
The functional parts of the ConBee are shown in a schematic overview in Figure 2.
The USB Dongle will be supplied by the USB 5.0 V domain. Therefore the USB power supply
must be sufficient to support the additional load. An onboard low-drop-out voltage regulator
generates a stable 3.3 V voltage to supply the radio module on the USB Dongle.
The onboard placed radio module deRFmega256-23M12 by dresden elektronik contains an
8-bit AVR microcontroller with an integrated low-power 2.4 GHz transceiver for ZigBee and
IEEE 802.15.4 applications. The ConBee is shipped with bootloader software and pre-
installed ZigBee firmware. Each USB Dongle contains a world-wide unique identifier, named
MAC-ID. It consists of an 8 byte address, including the vendor ID and product ID. The MAC-
ID is stored in the MCU internal EEPROM.
