Dri-Eaz HVE3000 User Manual

07-01782F F479 3 Dri-Eaz Products, Inc.
PARTS IDENTIFICATION
IMPORTANT! BEFORE FIRST USE:
The grab handle/vacuum hose guide (see Fig. A) is shipped inside the filter basket (Fig. D). Remove the guide
from the basket and install it as shown using the four screws provided. Do not overtighten the screws. The unit is
now ready to be set up as an extractor or booster. Two Velcro straps are also enclosed in the filter basket (Fig.
D). Use these straps to secure the extractor hose when not in use.
P
1
2
A
B
Power cord lock. Secures
plugs in sockets.
Automatic pumpout drain
outlet. Fitted with a 1½ in.
outlet. To use a garden hose,
replace with the supplied ¾
in. fitting. Keep capped
when not in use.
Vacuum outlet. Connect
to truckmount for use as
booster. Keep capped
when not in use.
Handle
Control panel and
power cord sockets.
Details in Fig. C.
Power cord retention
clips. Secure cord(s) here
while using the unit.
HEPA exhaust filter grill.
Thumbscrews allows easy
filter replacement.

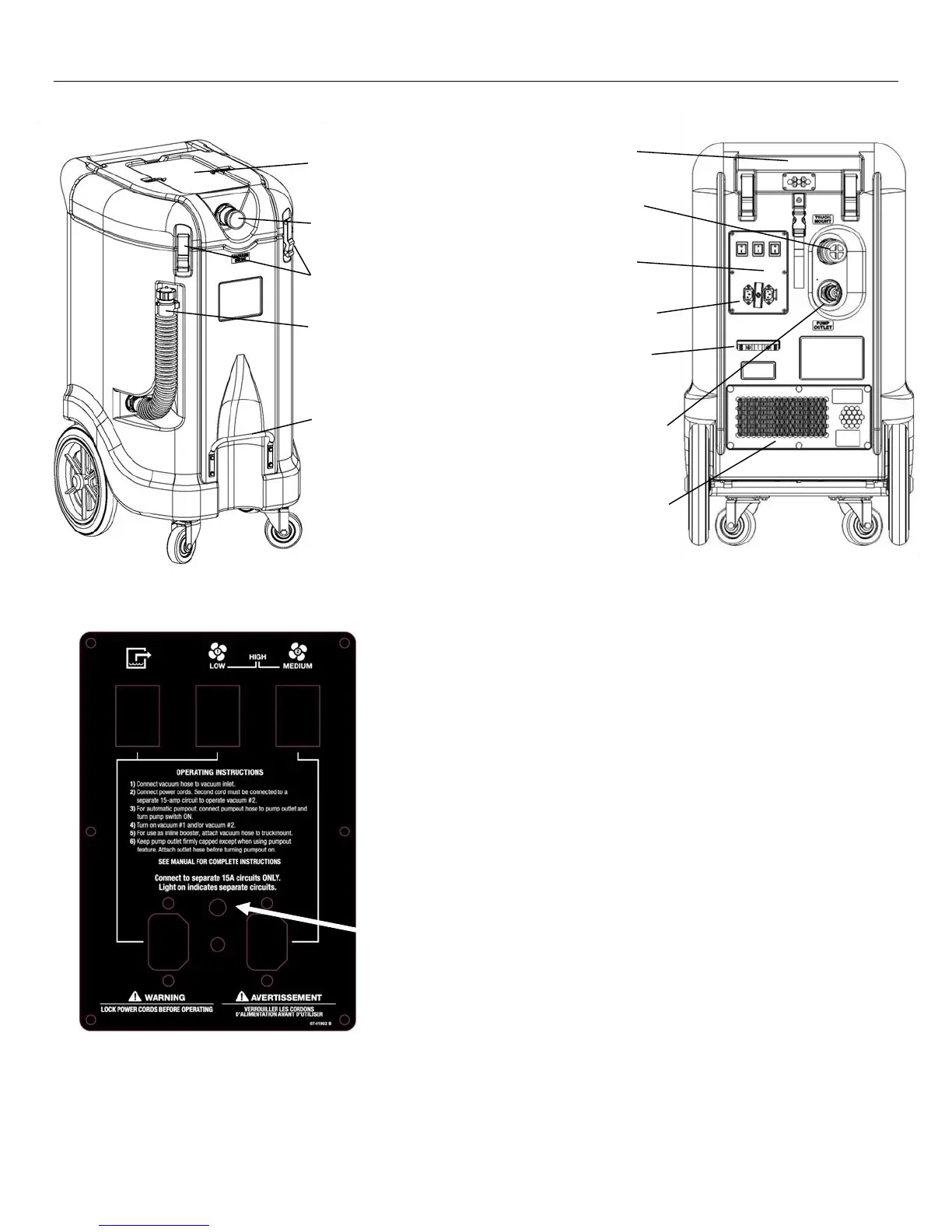

FIG. B: REAR
FIG. C: CONTROL PANEL DETAIL
P: Automatic pumpout switch. Turn on to activate automatic pumpout
system. NOTICE! When automatic pumpout system is activated, sump pump
can turn on any time liquid is present in tank. Liquid may eject from Pump
Outlet with considerable force and cause injury. Always attach suitable drain
hose before activating automatic pumpout system.
1, 2: Vacuum blower switches.
LOW: Blower 1 ON, Blower 2 OFF. Cord A required.
MEDIUM: Blower 1 OFF, Blower 2 ON. Cord B required.
HIGH: Blower 1 ON, Blower 2 ON. Cords A and B required.
A: Power cord socket. Provides power to sump pump and blower 1.
B: Power cord socket: Provides power to blower 2.
IMPORTANT! Secure power cords into sockets with lock.
Independent circuit indicator light: Glows bright green when the two cords
are properly connected to separate circuits. No light appears if a) the two
cords are connected to the same circuit or b) if only one cord is connected.
When using both power cords, do not operate the unit unless the green light
is illuminated.
P
1
2
A
B
Vacuum inlet (from
extraction tool).
Gravity drain hose.
Keep capped and clipped
into place when not in
use.
Grab handle/vacuum
hose guide. Direct hose
through guide before use
to avoid tipping.
Filter basket cover.
Remove by lifting
clamps.
Cover assembly
latches (×4)
FIG. A: FRONT
Also included: 25 ft.
section of 2 in. vacuum
hose.
