Option 1: Using with the D-Handle Alone
Attach the D-Handle alone to the sides of the Front Cover,
using the Hex Key and two Hex Head Bolts.
Note: Slide the Hex Key through the hole in the Handle to access
the Bolt on the long side of the Handle.
Option 2: Using with the Side Handle Alone
Attach the Side Handle to one of the three locations on the
Polisher/Sander head by threading it securely in place.
Option 3: Using with Both Auxiliary Handles Together
Hold the D-Handle in place on the head of the Polisher/Sander
and thread the Side Handle through the short side of the
D-Handle in place of one of the Hex Head Bolts. Use a Hex Head
Bolt and the Hex Key to secure the large side of the D-Handle to
the other side of the Polisher/Sander head.

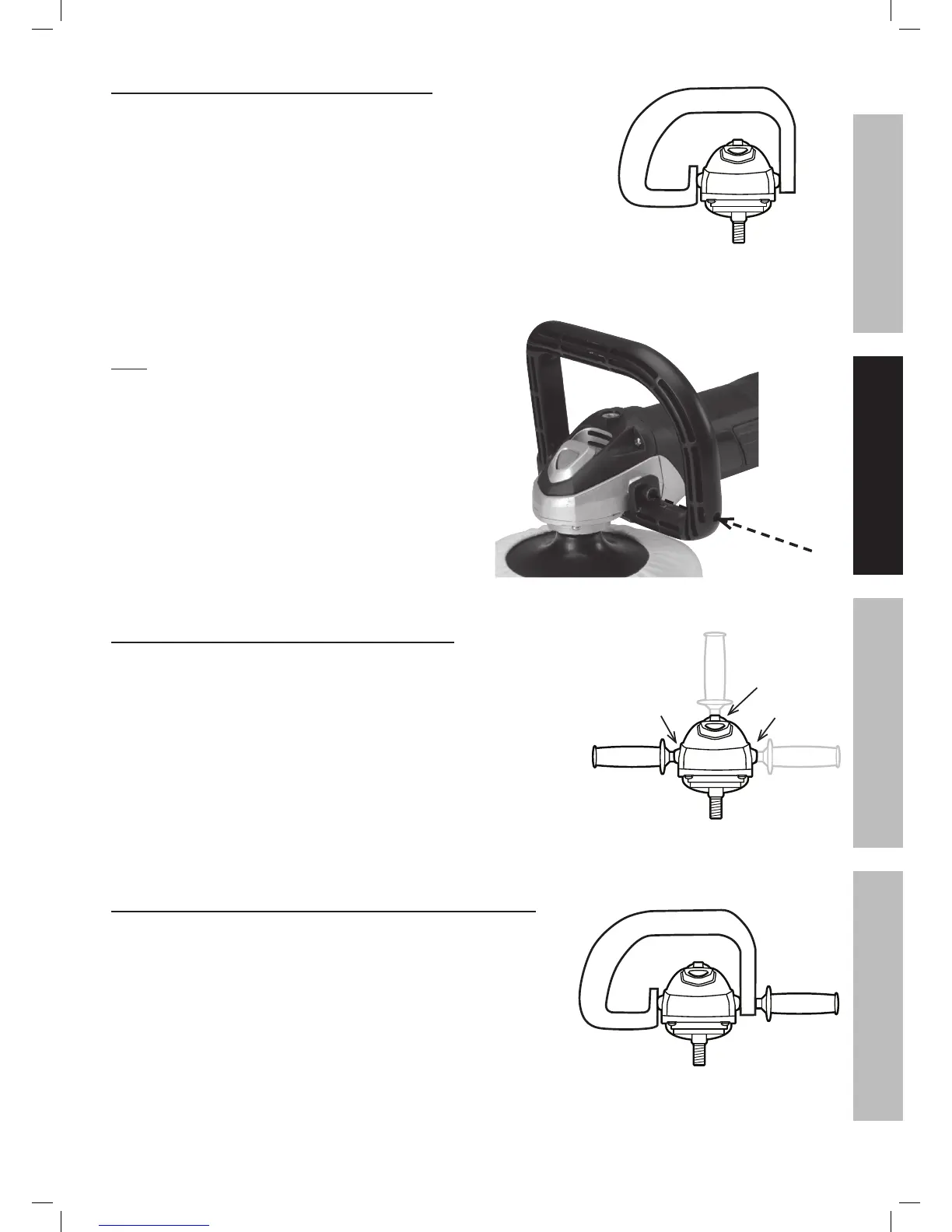

Figure B
Insert Hex Key
through here
to access Bolt
Figure C: D-Handle Installed
Figure D
Install Side
Handle Here
Or Here
Or Here
Figure E
