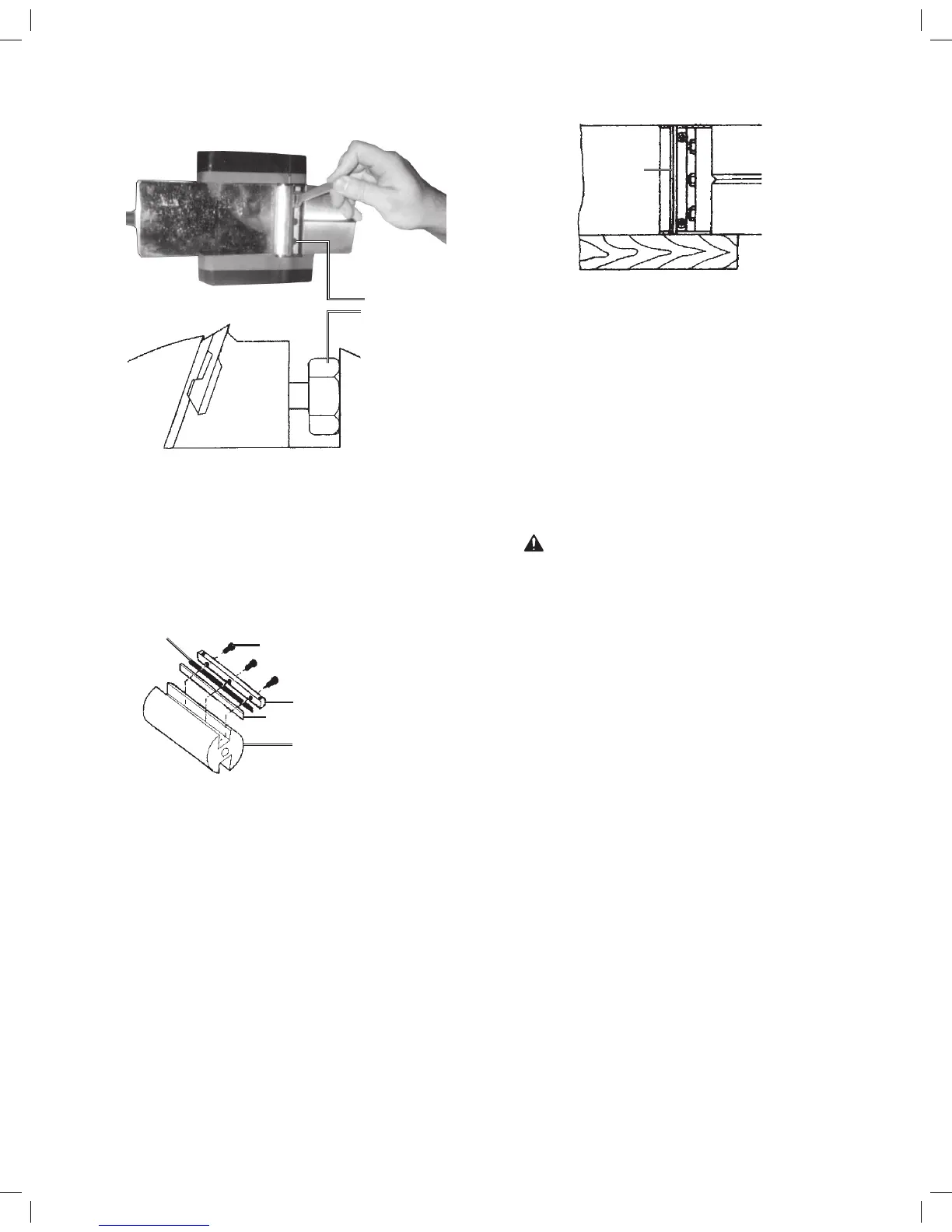

Page 12 For technical questions, please call 1-800-444-3353. SKU 91062
a.
(BOTTOM VIEW)
HEX HEAD
SCREW (60)
that secure the Blades, Press Blade
Plate (56), and Blade Holder to the
Blade Shaft (63).
b. Slide the Blades lengthwise out of the
Blade Shaft, using a piece of wood to
c.
HEX HEAD SCREW (60)
BLADE (57)
BLADE HOLDER (59)
PRESS BLADE PLATE (56)
BLADE SHAFT (63)
Once the Blades have been removed,
clean the Blades, Press Blade Plate,
Blade Holder, and the Blade Shaft
thoroughly before installing the reversed
or new Blades to allow for a more
accurate Blade setting.
d. When installing the reversed or new
Blades, it is important that they be
properly adjusted so that they align
evenly with the Front Base Plate (54)
and Rear Base Plate (61). Slide the
Blades lengthwise into the Blade Shaft,
using a piece of wood.
e.
(BOTTOM VIEW)
ALIGN
BLADES
USING
PIECE
OF WOOD
Place a straight edge or piece of wood
along the side surfaces of the Front
Base Plate and Rear Base Plate. Then,
slide the Blades against the straight
edge or piece of wood.
f. Finally, use an open end wrench to
retighten the three Hex Head Screws
that secure the Blades, Press Blade
Plate, and Blade Holder to the Blade
Shaft.
5. WARNING! If the supply cord of
this power tool is damaged, it must be
replaced only by a qualied service
technician.
