5.2 Assembling the hot air distribution plenum (A and B).

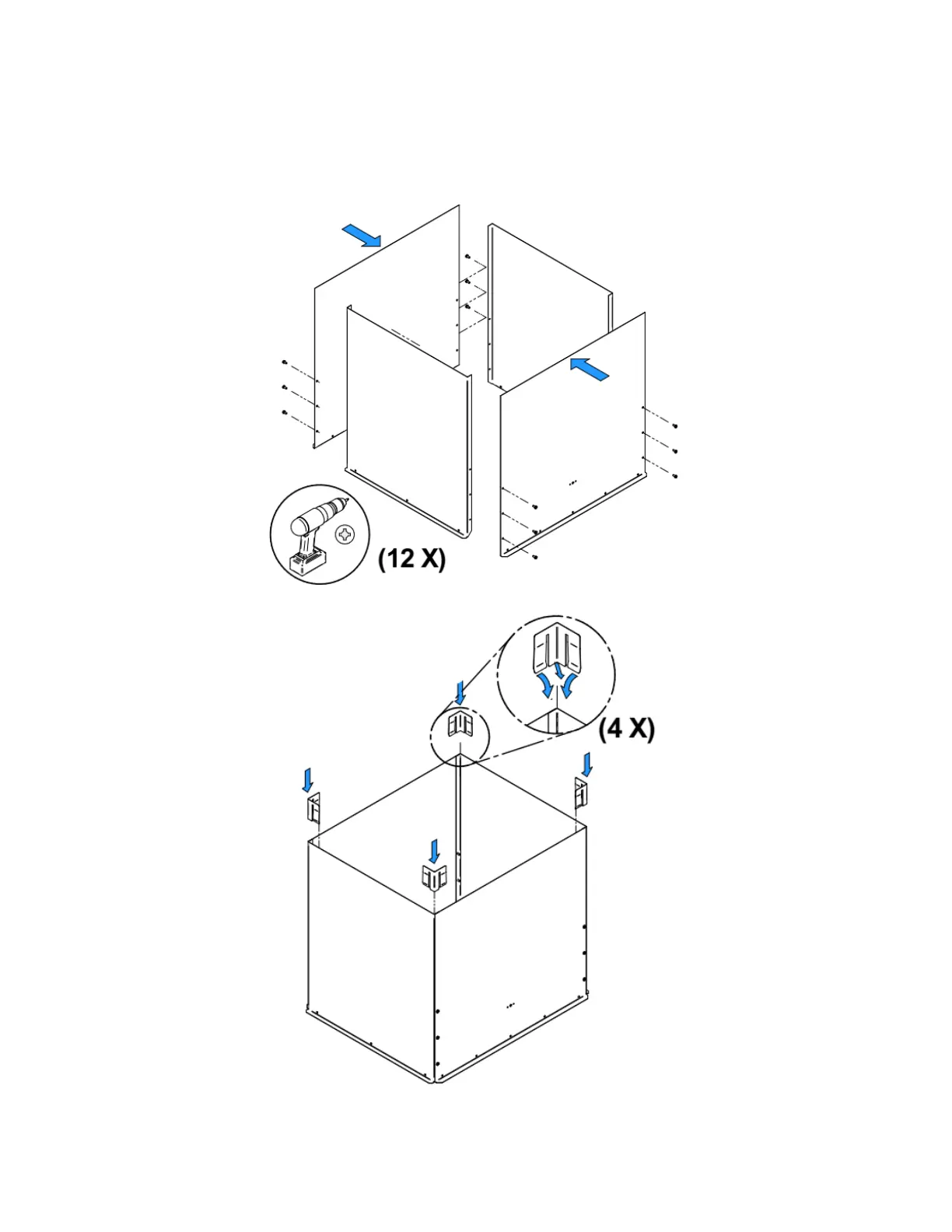

5.2.1 Assembling the plenum extension (A) by means of 12 screws (C) and corner

reinforcements (E)
