Dry-Matic DM07D - Page 3

DM - Operating Instructions, Installation Instructions, Wiring diagrams Version 3.1.765 August 2019 3
User instructions continued on next pages
Factory Calibrated
(do not adjust)
Aux Heat Setpoint
(Factory set at 12ºC)
11
6
16
Sensor
Cat 5 Patch Lead
Cable Socket
Power Supply Transfomer
Fan Boost On for large House.
Note :- Discharge each
Capacitor to common before
operating the switch
Fuse
P )
)
E ) From Switchboard
N )
P )
N ) To Heater
E )
P )
N ) To Fan
E )
) A
C Summer Vent Switch
M
Current Transformer
DM07C Attic Controller
Summer Vent Kit
Your Dry-Matic is designed to provide summer time ventilation when it is hot in the ceiling by providing a DM controller
override that operates fan at full speed (approx double the airflow of DM in heat r
ecovery mode) and drives a motorised
diverting branch that draws cool fresh air through the soffit from outside.
A
C
M
Vent switch typically mounted be-
side hall controller.
Motorised Diverting Branch
Air from Attic
Air from Out-
side
N
DM Attic Controller
DM auto Mode
Summer Vent Mode
Air into DM
DM attic control factory fitted with
link between A and C, remove and
replace with components shown.
P
C
1
2
C
1
2
769M
Factory Calibrated
(do not adjust)
Aux Heat Setpoint
(Factory set at 12ºC)
11
6
16
Sensor
Cat 5 Patch Lead
Cable Socket
Power Supply Transfomer
Fan Boost On for large House.
Note :- Discharge each
Capacitor to common before
operating the switch
Fuse
P )
)
E ) From Switchboard
N )
P )
N ) To Heater
E )
P )
N ) To Fan
E )
) A
C Summer Vent Switch
M
Current Transformer
DM07C Attic Controller
Summer Vent Kit
Your Dry-Matic is designed to provide summer time ventilation when it is hot in the ceiling by providing a DM controller
override that operates fan at full speed (approx double the airflow of DM in heat r
ecovery mode) and drives a motorised
diverting branch that draws cool fresh air through the soffit from outside.
A
C
M
Vent switch typically mounted be-
side hall controller.
Motorised Diverting Branch
Air from Attic
Air from Out-
s
ide
N
DM Attic Controller
DM auto Mode
Summer Vent Mode
Air into DM
DM attic control factory fitted with
link between A and C, remove and
replace with components shown.
P
C
1
2
C
1
2
769M

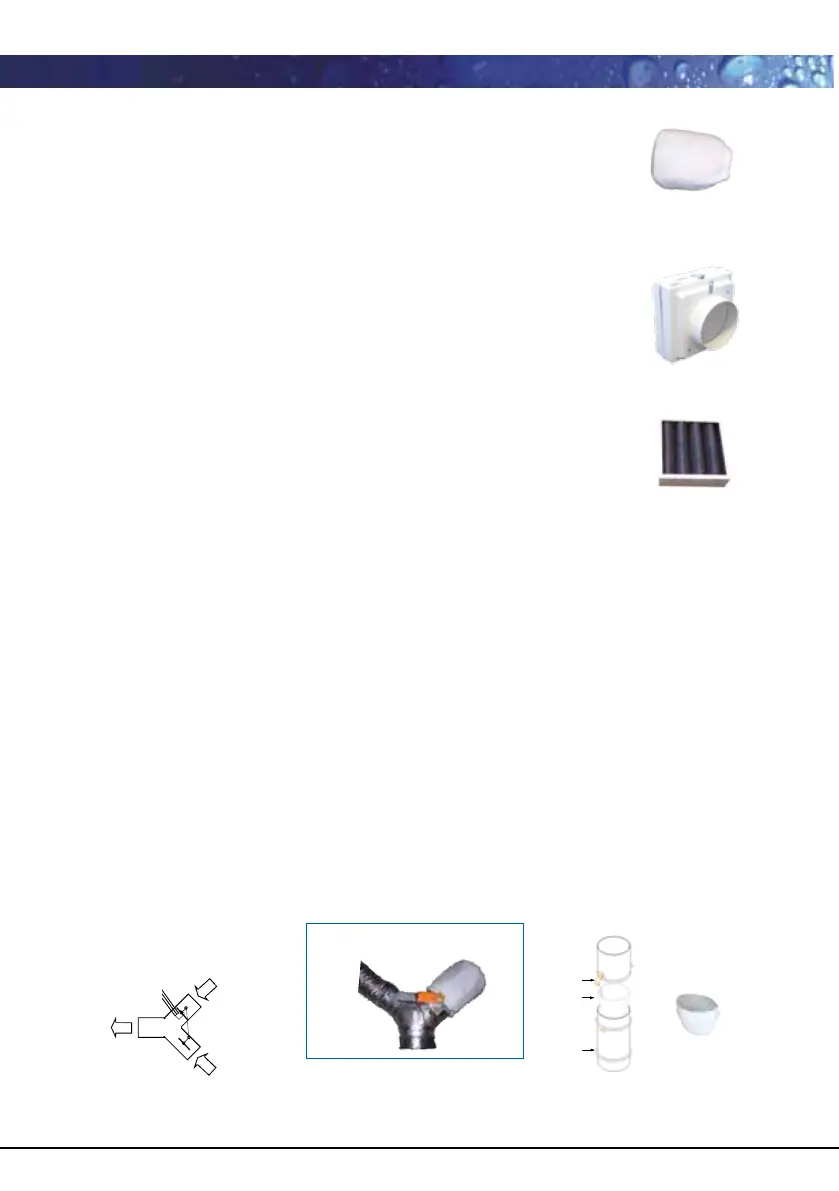

DMFS
Filter Bag
(air intake in attic)
DMFB
Filter Box
Summer Vent Kit
Can divert intake from attic to cooler
outside air
DMFC Carbon Filter
(inside DMFB)
Cleaningthelters
Although the Dry-Matic is designed to run continuously for
years, the lters do need cleaning every 8 months or so for
optimal performance (clean at least yearly).
If the lter timer is activated, the hall controller display will start
ashing Dirty Filter to indicate it is time to clean the lters.
The white lter bag can be machine washed on gentle cycle
or hand washed - vacuum rst to remove excess dust.
Alternatively replace with a new one.
The carbon lter inside the lter box should be replaced every
year.
You may prefer to get a professional to climb into the attic
space to access the lters.
Dry-Matic Maintenance
Optional Summer Vent Kit
The Dry-Matic Summer Ventilation Kit is an optional add-on for Digital
Dry-Matics.
It can be added during installation or several years after installation.
The digital hall controller can be commissioned to control the motorised diverting
branch damper, directing air intake from the cooler outside air for summer
months.
Again, the air intake filter, and the inline ‘Sock’ will need cleaning as above.
Toggle Catch
Filter Sock
SE/SE Tube
inline Filter sock
SOCK - filter
Optional Heater
Some Dry-Matic units have been tted with a thermostatically controlled duct
heater that tempers the incoming air when it is cold in the attic.
Toresetashingdisplay‘DirtyFilter’
After factory reset or lter timer activated, go to User Menu
(c2. over page), follow instructions to select “Reset the Timer - Y”.
