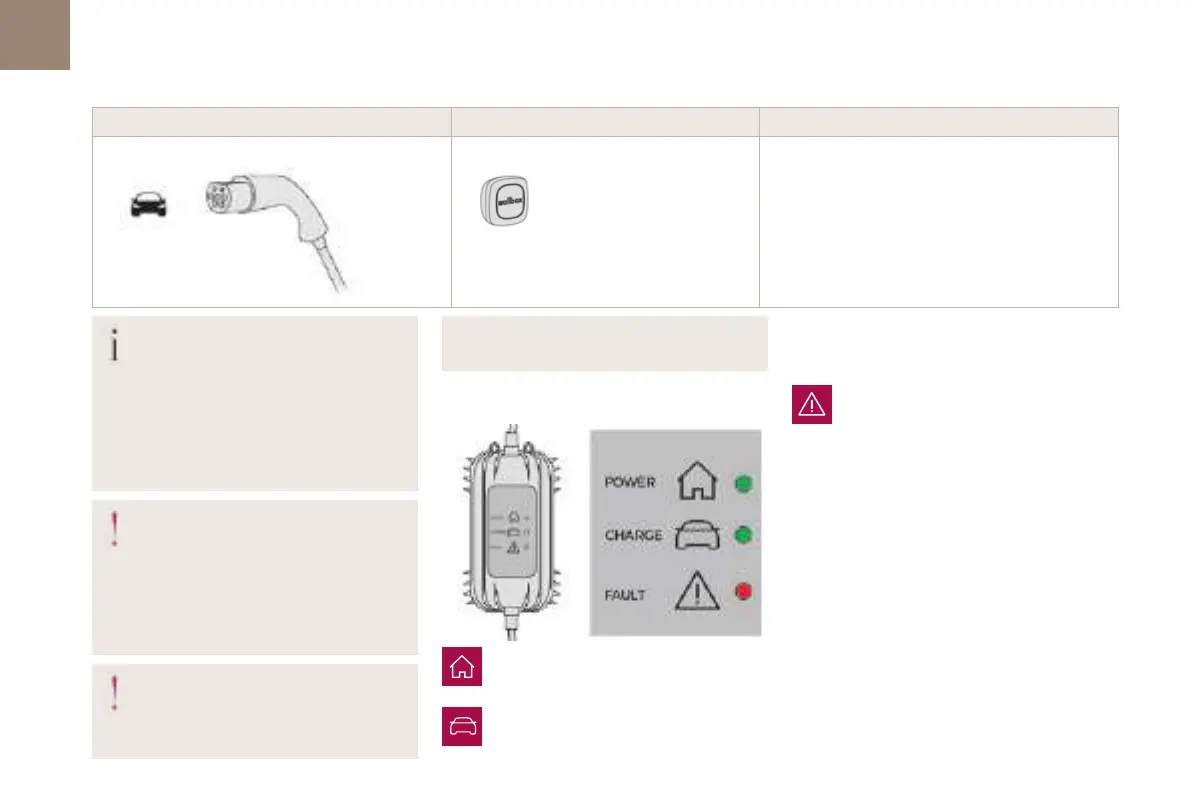

Cable type Compatibility Specifications
Mode3 charging cable
Wallbox accelerated charging unit
Vehicle can be recharged in 1.5 hours to 1.75 hours
(with 6.6 kW charger).
Charge limited to a maximum of 32A.
Charging times are given for information
purposes only; they may vary according to
different factors such as the exterior
temperature or the quality of the electrical
network. If the exterior temperature is below
-10°C, it is recommended to connect the
vehicle as soon as possible as the charging
time may increase significantly.
Mode 2 charging cable with integrated
control unit
It is essential to avoid damaging the cable and
to keep it intact.
In the event of damage, do not use it and
contact adealer or a qualified workshop to
replace it.
Wallbox accelerated charging unit (mode
3)
Do not disassemble or modify the charging
unit - risk of electrocution and/or fire!
Refer to the charging unit user manual for the
operating instructions.
Control unit
POWER
Green: electrical connection established;
charging can begin.
CHARGE
Flashing green: charging in progress or
programmed heating activated.
Fixed green: charging complete.
FAULT
Red: anomaly; charging not permitted
or must be stopped immediately. Check that
everything is connected correctly and that the
electrical system is not faulty.
If the indicator lamp does not go off, contact a
dealer or a qualified workshop.
Upon plugging the charging cable into a domestic
socket, all of the indicator lamps come on briefly.
If no indicator lamps come on, check the domestic
socket's circuit-breaker.
– If the circuit breaker has tripped, contact a
professional to check that your electrical system
is suitable and carry out any necessary repairs.
– If the circuit-breaker has not tripped, avoid
using the charging cable and contact a dealer or a
qualified workshop.
