DS18 DDX6.9ML User Manual

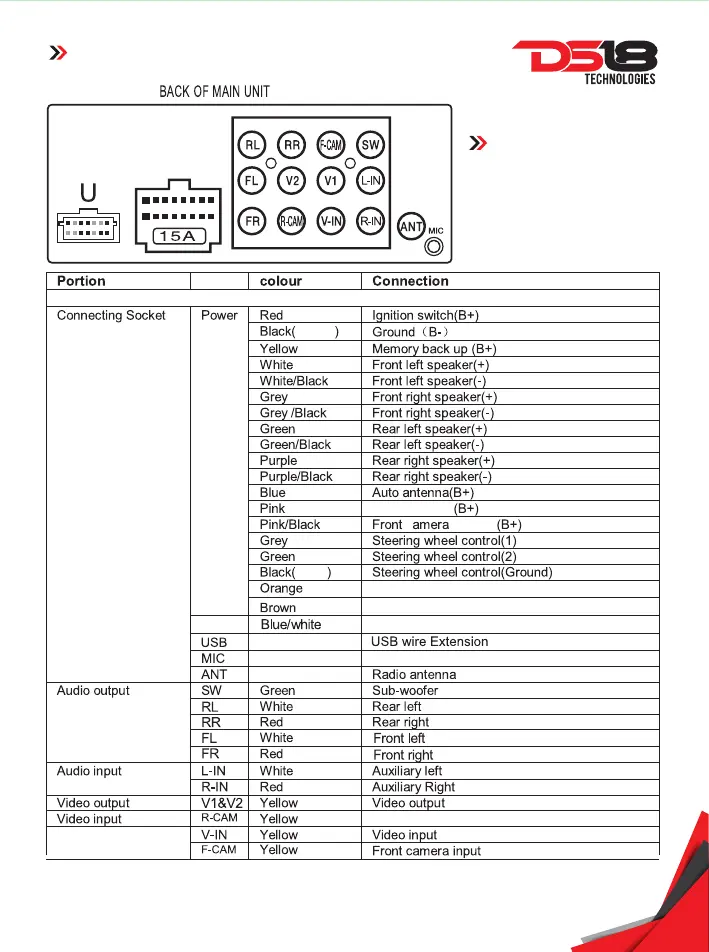

WIRING CONNECTIONS
Due to the law of some countries,
video playback is not allowed,
during driving. To allow video
playback during driving, the brown
wire (brake) should be connected to
ground (b-) of the car battery.
2
REMARKS
Thick
Thin
Reverse Lamp
Output
C
Ilumination Detection input (B+)
Hand Brake Detection (B-)
Remote Out (B+)
External MIC input
Pre-Output
Pre-Output
Pre-Output
Pre-Output
Audio input
Audio input
Reverse Camera input
RCA
RCA
RCA
RCA
Pre-Output
