DS18 MP4TP.4A User Manual

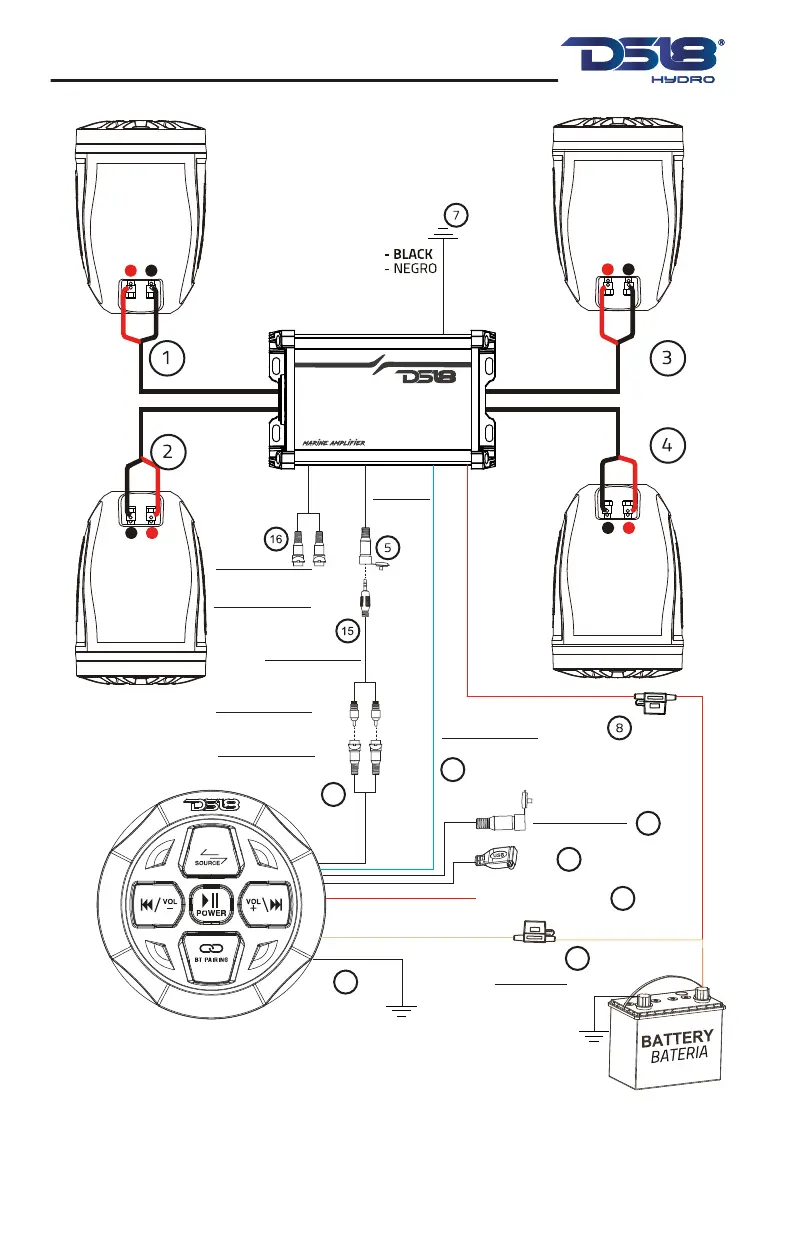

WIRING / CABLEADO
+ YELLOW
Fuse:5A
Line out-L
Line out-R
DC12V(-) Grounded to
metal chassis, or directly to
negative polarity of battery.
DC12V(+)
Recommended wiring
with fuse (parts are not included)
Salida de Linea-L
RCA hacia 3.5mm
Entrada
de Audio
Audio
Input
Salida de Linea-R
Line out-L
Line out-R
Salida de Linea-L
Salida de Linea-R
+ AMARILLO
Fusible:5A
DC12V (-) conectado a tierra del
chasis de metal, o directamente a
polaridad negativa de la batería
DC12V(+)
Cableado recomendado
con fusible
(las piezas no están incluidas)
- NEGRO
- BLACK
13
14
FUSIBLE: 20A | +ROJO
FUSE: 20A | +RED
RCA to 3.5 mm
6
AUX Input
Red / Acc | Rojo / Acc
USB
Entrada Auxiliar
10
11
12
Blue / Remote
Azul / Remoto
9
6
