13

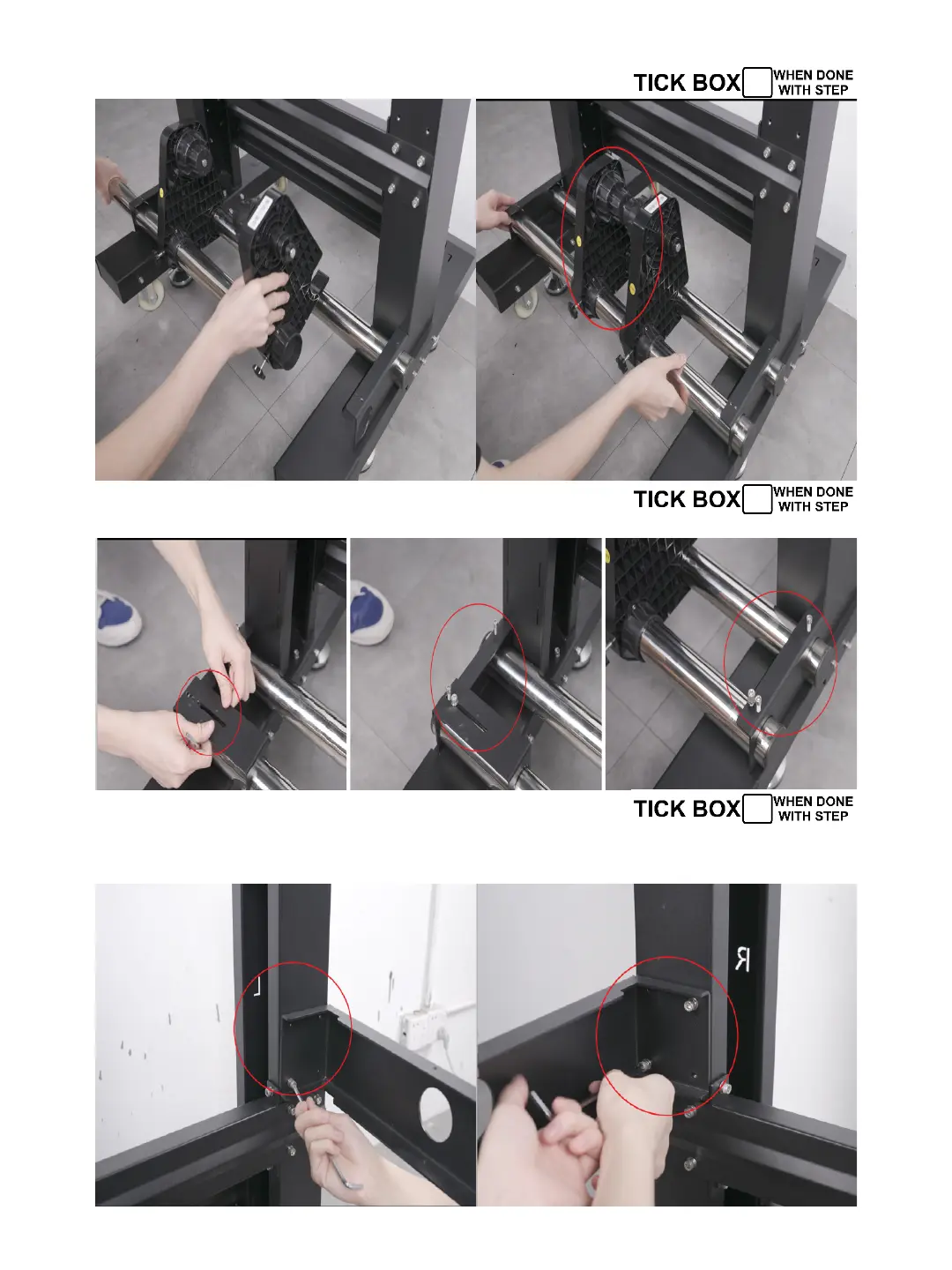

Note the direction of the take-up system
Install the xing plate on the left,
then tighten the screws to x the bar
Step 5:
Install the take-up system,
Install the bracket for the crossing bar
