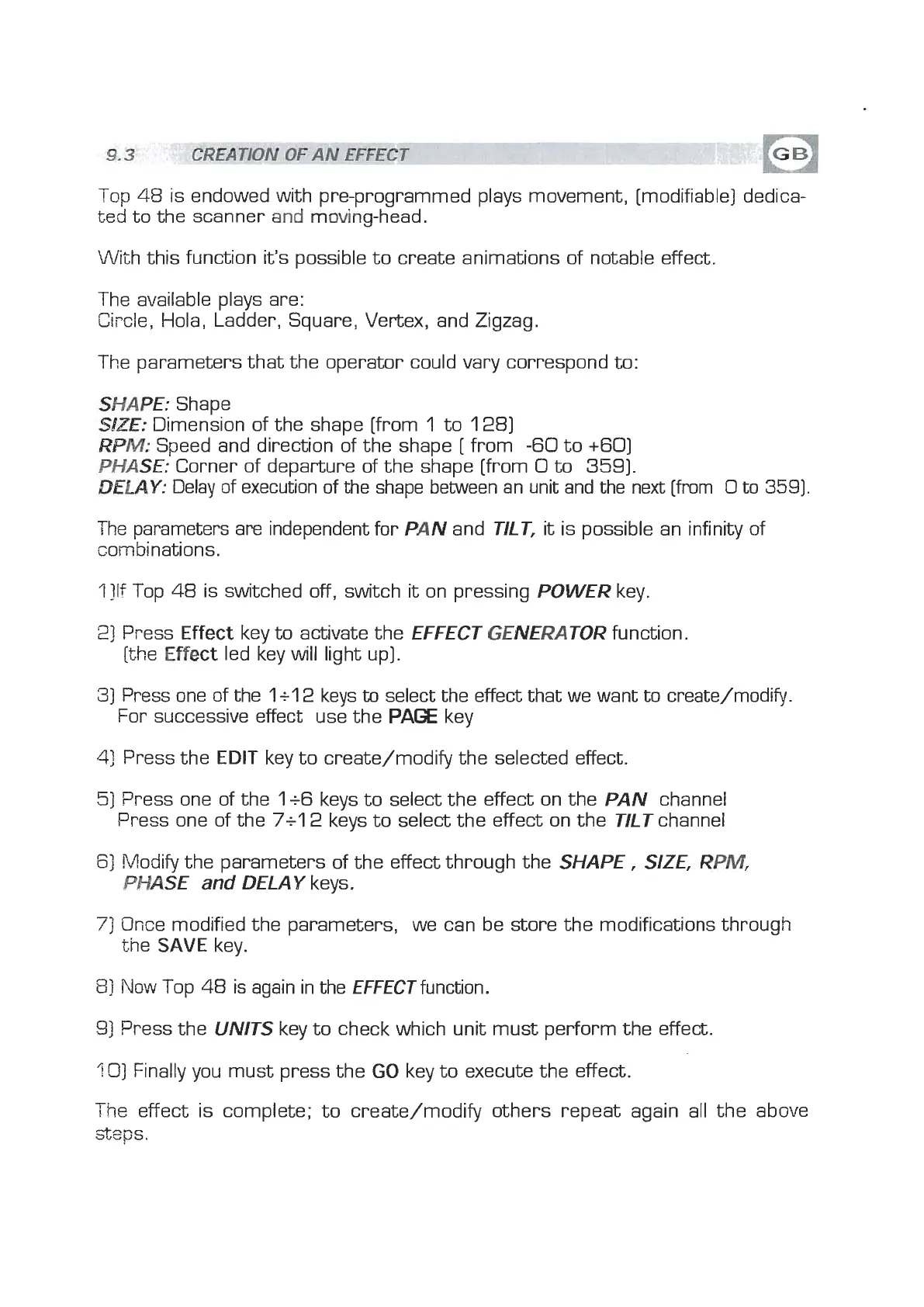

CREATIOlV
OF
AN
EFFECT
Top
48
is endowed with pre-programmed plays movement, [modifiable] dedica-
ted to the scanner and moving-head.
With this function it's possible to create animations of notable effect.
The available plays are:
Circle, Hola, Ladder, Square, Vertex, and Zigzag.
The parameters that the operator could vary correspond to:
SHAPE:
Shape
,GEE:
Dimension of the shape [from
1
to
1281
RPM:
Speed and direction of the shape
[
from -60 to +60]
PHASE:
Corner of departure of the shape [from
0
to
3591.
DELAY:
Delay of execution of the shape between an unit and the next [from
0
to 3591.
The
parameters are independent for
PAN
and
TILT,
it is possible an infinity of
combinations.
l
]If Top
48
is switched off, switch it on pressing
POWER
key
21
Press
Effect
key to activate the
EFFECT GENERATOR
function.
[the
Effect
led key will light up].
31
Press one of the
1
+l
2
keys
to
select the effect that we want to create/modify.
For successive effect use the
PAGE
key
4j
Press the
EDIT
key to create/modify the selected effect.
51
Press one of the
1
+6
keys to select the effect on the
PAN
channel
Press one of the
7+12
keys to select the effect on the
TILT
channel
Sj
Modify the parameters of the effect through the
SHAPE, SIZE, RPM,
PHASE
and
DELAY
keys.
-
/]
Once modified the parameters, we can be store the modifications through
the
SAVE
key.
8)
Now Top
48
is again in the
EFFECT
function.
91
Press the
UNITS
key to check which unit must perform the effect.
'l
Cl] Finally you must press the
GO
key to execute the effect.
The
effect is complete; to create/modify others repeat again all the above
steps.
