Dual 1019 - Operating Instructions

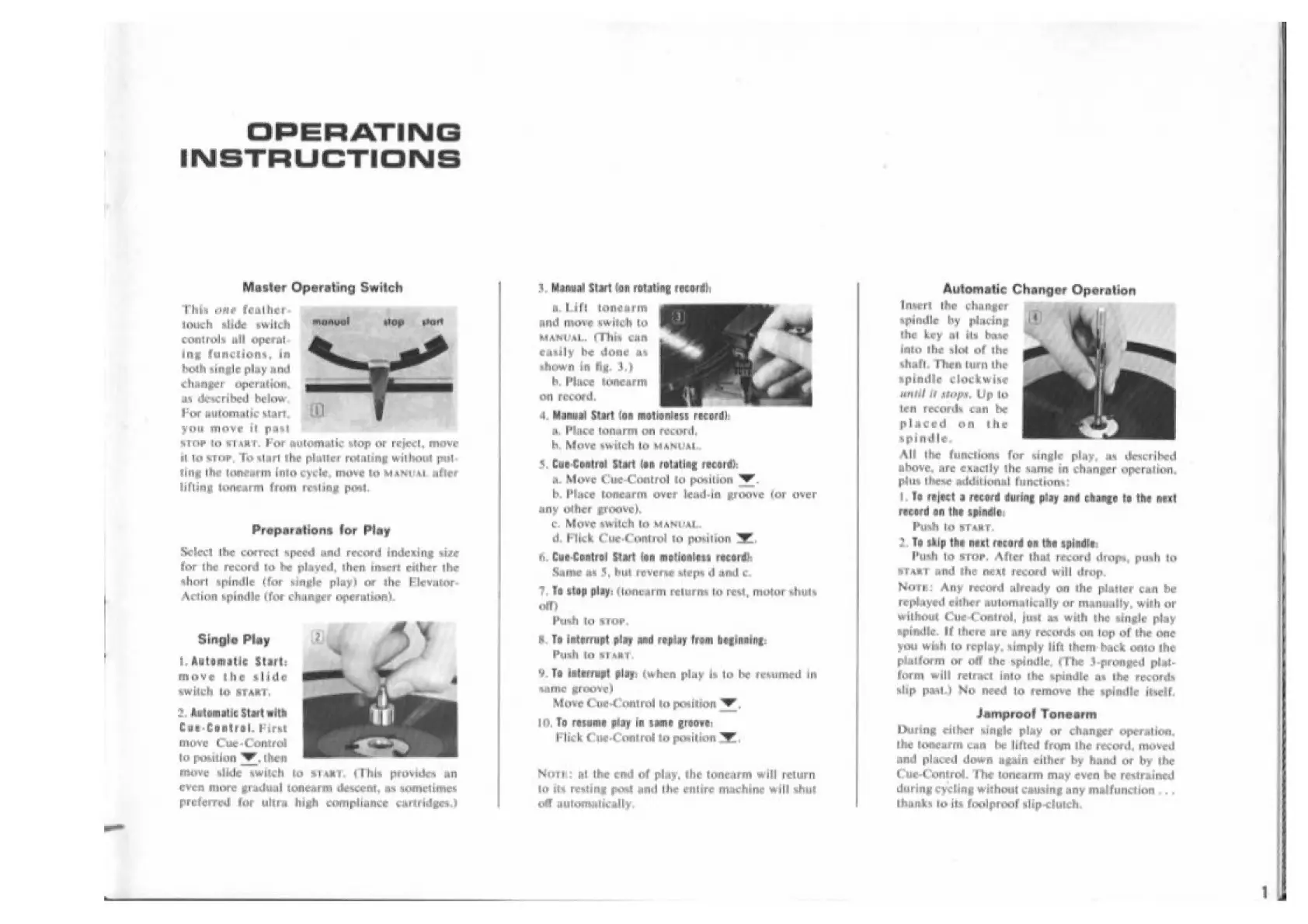

OPERATING
INSTRUCTIONS
Master Operating Switch
This ove feather
louch slide switch
controls all operat.
ing functions, in
both single play and
changer operation,
as dexacrbed helow
For sulomatic start,
you move it past
STO! to START. For automatic stop or reject, move
tio sror, To vert the platter rotating without pul
ling the tancarm inte cyele, mive lo MANUAL after
lifting tonearm from resting port,
Preparations for Play
Select ihe correct speed ond recond indexing size
for the record to be plaved, then insert cither the
short spindle (for single play) or the Elewater-
Action
spindle
(for
changer
operation).
Single Play
1. Agtomatic Start:
move the slide
switch bo START,
2, Aolomatic Start with
Cue-Contral, First
move Cue-Contral
lo poxition “WF. then
move slide switch to stant. (This provides an
even more gradual loncarm descent, as sometimes
preferred for ultra high compliance curtridges,)
1. Manual Start (on rotating record)
a. Lift tonearm
nnd move awoich to
MANUAL. (This can
cisily be done as
shown in fig, 3,)
b. Place tonearm
on record, -
4. Manual Start (on motiontess record):
a, Place tonarm on record,
hb. Move ewitch to MANLAL
4. Coe-Control Start (on rotating record);
a Move Cue-Contral to position ¥.
b. Place tonearm over lead-in groove (or over
any other groove),
c. Move awitch to MaNLIAL.
d. Flick Cue-Control to position SF.
fy. Cue-Contro! Start lon motionless record
Same as 5, but reverse step dl ame c.
7, Te stop play: (tonearm returns to rest, mater obits
of)
Push to sror,
H. To interrupt play and replay from beginning:
Push to sTaat
9. To interrugt plays iwhen play is to be resumed in
“ime groove |
Move Cuc-Control to position
10, To reseme play in tame groove;
Flick Cue-Control to position FF ,
NOTH: at the end of play, the tonearm will return
lo its resting post and the entire machine will shut
mT psutomutically,
Automatic Changer Operation
Insert the changer — io
ipindle by placing
the key of its base
info ihe slot of the
shaft. Then turn the
ipindle clockwise
wertil if atop, Lip io
len records con be
Placed on the
spindle.
All the functions for single play, av described
wbhove, are exactly the same in changer operation,
Plus these additional functicens:
1. To reject a record during play and change to the wert
record on the spindle,
Push to sant
2. Te ship the next record on the spindle:
Push to stor. After that record drops, push to
START and the meal record will drop
Nork: Any record already on the platter can be
replayed cither aulomatically or manually, with or
without Cue-(Control, just as with the single play
spindle. If there are any records on top of the one
you Winh to replay, simply lift them: back onto the
platform or off the spindle, (The 3-pronged plat-
form will retract into the spindle aa the records
sip pas.) No need ta remove the spindle itself,
Jamproo! Tonearm
During cilher single play or changer operation,
the toncarm can be lifted fram the record, mowed
ond placed down again cither by hand or by the
Cie-Control, The tonearm may even be restrained
during cycling Withoul causing any malfunction
thinks to its foolproof alip-clutch,
