06
Assembly
QR lever
Locking slide

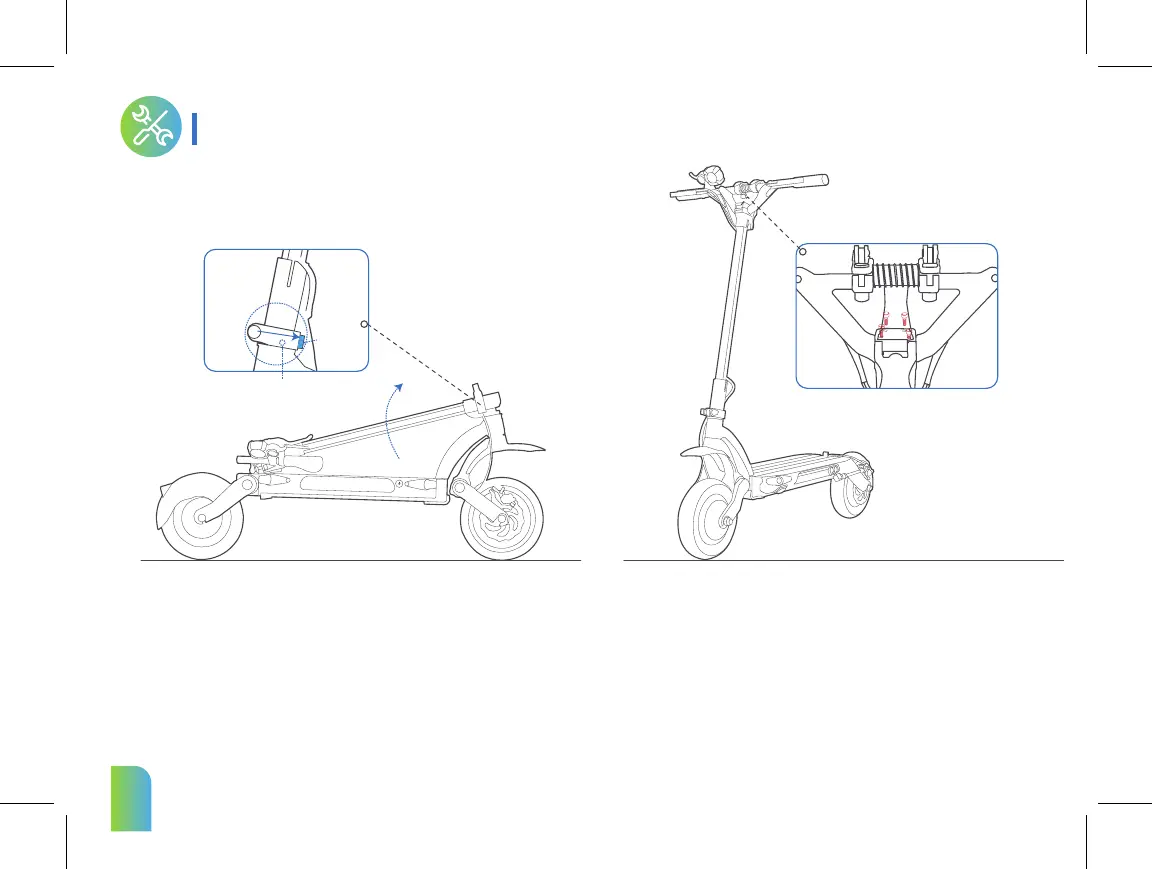

① Release the QR lever,raise the locking slide upwards, raise the
steering tube, then lower the locking slide downward.
② Tighten the finishing screw properly to lock the QR lever so that
the locking slide is firmly fixed in any direction, and check for
looseness during use.
Attach the handlebar body and tighten the 4 screws.(When
tightening the screw,the first step screw is 90% tight,you must
tighten it diagonally,according to the order 1-4-2-3;The second step
all screws are 100% tightened.)
