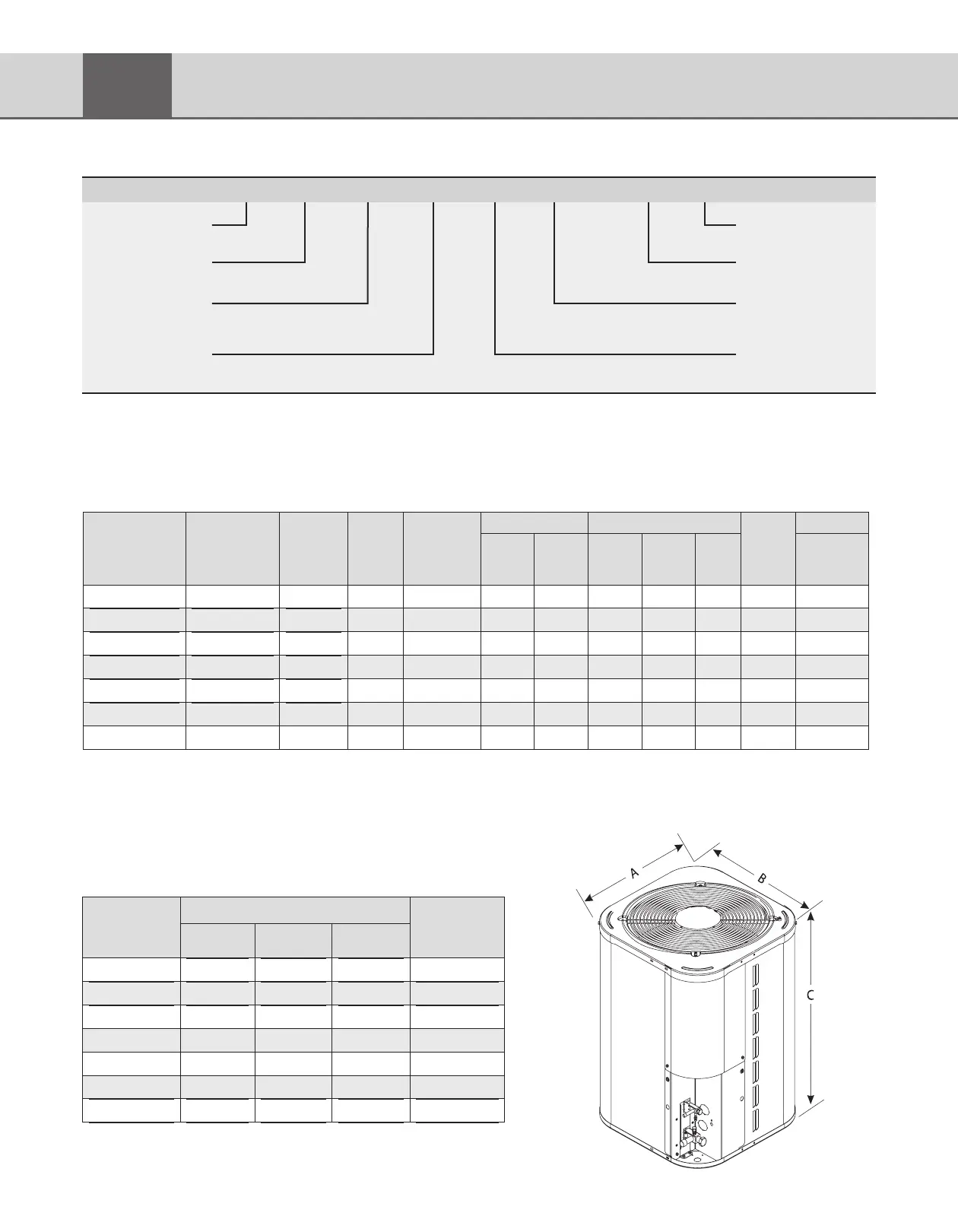

Ducane 2HP14 - Model Number Guide; Electrical and Physical Data; Dimensions and Sound Ratings

2HP14SplitSystemHeatPump
seer
14
2HP14SplitSystemHeatPump
seer
14
 2 HP 14 B 36 P - 1 A 
 ModelNumberGuide
Refrigerant – 2 = R22
AC = Condenser
HP = Heat Pump
14 - 14 SEER Nominal
Family / Coil Protection
B = Non-Louvered
L = Louvered
A = Service Level
Revision Code
Voltage
P - 208-230v/60hz
Single Phase
Nominal Capacity
36 - 36,000 Btuh
Model
Voltage/ Hz/
Phase
Voltage
Range
Min.
Circuit
Amp.
Maximum
Over
Current
Device
(amps)
Compressor Fan Motor
Refrig.
Charge
(oz.)
:
Weight (lbs.)
Rated
Load
(Amps)
Locked
Rotor
(Amps)
Full Load
Amps
Rated
HP
Nom.
RPM
Wire Guard/
Louvered
2HP14*18P 208-230/60/1 197 - 253 11.1 20 8.3 41 0.7 1/10 1075 139 162/174
2HP14*24P 208-230/60/1 197 - 253 14.6 25 10.3 56 0.7 1/10 1075 131 175/187
2HP14*30P 208-230/60/1 197 - 253 16.0 25 12.2 61 0.8 1/5 1075 160 187/200
2HP14*36P 208-230/60/1 197 - 253 18.4 30 13.5 73 0.8 1/5 1075 177 195/208
2HP14*42P 208-230/60/1 197 - 253 22.2 35 16.5 95 1.4 1/4 1075 188 222/239
2HP14*48P 208-230/60/1 197 - 253 23.7 40 18.0 104 1.4 1/4 1075 273 224/241
2HP14*60P 208-230/60/1 197 - 253 26.0 40 19.2 137 2.0 1/3 1075 252 275/292
 ElectricalandPhysicalData
* = B, L
 Dimensions(in.)andSoundRatings
Model
Dimensions
B, L
Sound Rating
(dBa)
A - width
(in.)
B - depth
(in.)
C - height
(in.)
2HP14*18P 30-3/4 30-3/4 25.5 78
2HP14*24P 30-3/4 30-3/4 25.5 79
2HP14*30P 30-3/4 30-3/4 29.5 79
2HP14*36P 30-3/4 30-3/4 29.5 79
2HP14*42P 30-3/4 30-3/4 41.5 78
2HP14*48P 30-3/4 30-3/4 41.5 78
2HP14*60P 30-3/4 30-3/4 41.5 78
* = B, L
