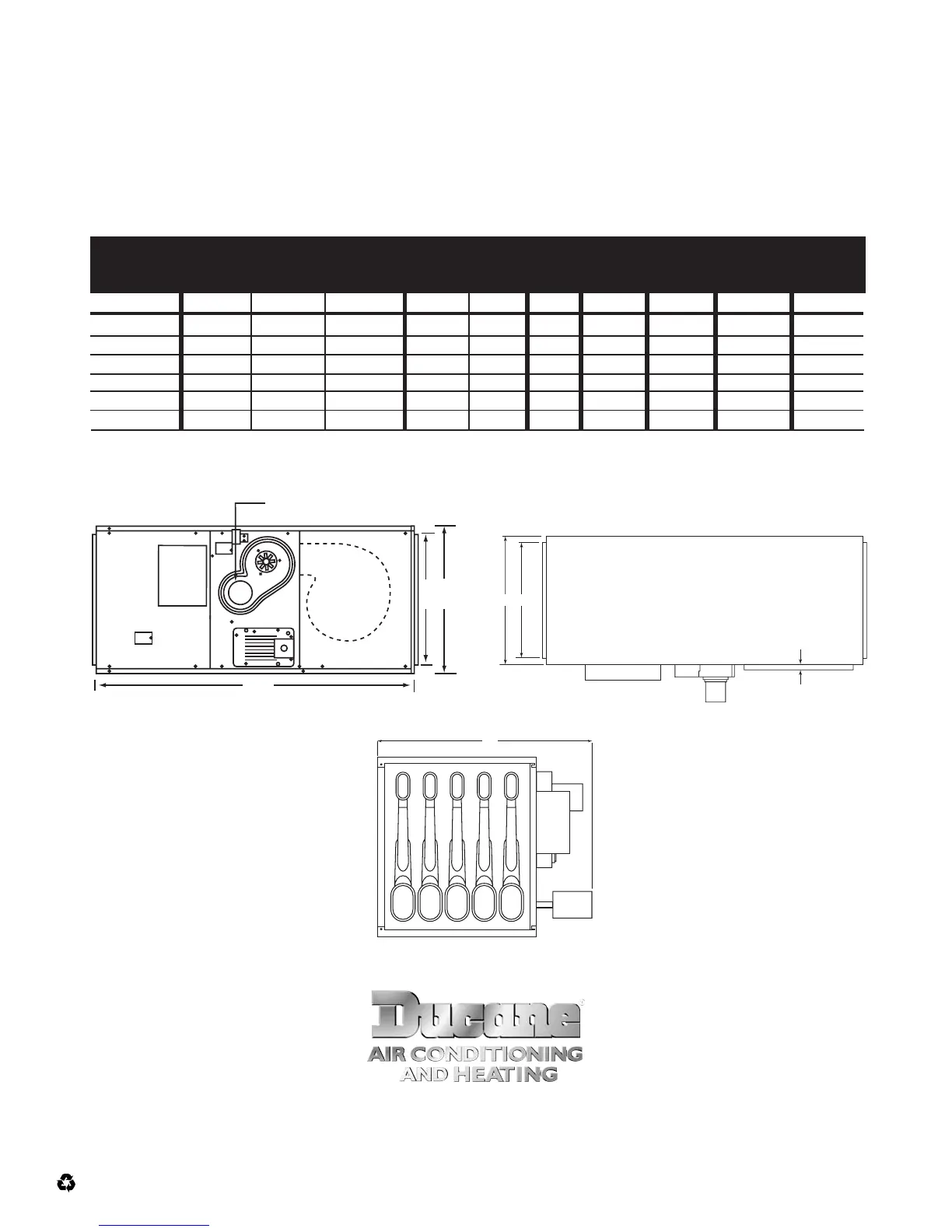

Ducane Horizontal 80 - General Layout and Dimensions; Unit Dimensions and Layout

DUCANE SUPPLY AND
MODEL UNIT DIMENSIONS RETURN DUCT FLUE OVERALL BLOWER
NUMBER LENGTH WIDTH HEIGHT OPENINGS DIA. DIMENSIONS DOOR
ABCDEFGH
FPBB050A3B 50 13 1/2 23 1/8 11 5/8 21 3/8 4 19 1/2 FLUSH 8.3 112
FPBB075A3B 50 13 1/2 23 1/8 11 5/8 21 3/8 4 19 1/2 FLUSH 9.9 121
FPBB075A4B 50 13 1/2 23 1/8 11 5/8 21 3/8 4 19 1/2 1 11.7 121
FPBB100A4B 50 17 23 1/8 15 1/8 21 3/8 4 23 FLUSH 9.9 141
FPBB100A5B 50 17 23 1/8 15 1/8 21 3/8 4 23 1 13.1 141
FPBB125A5B 50 20 1/2 23 1/8 18 5/8 21 3/8 4 26 1/2 FLUSH 11.7 161
NOTE: Dimensions are in inches
GENERAL LAYOUT
BD
H
G
F
A
E
C
