Ducar DM40P - Assembly

Original Instructions
ASSEMBLY
Assembling the handle

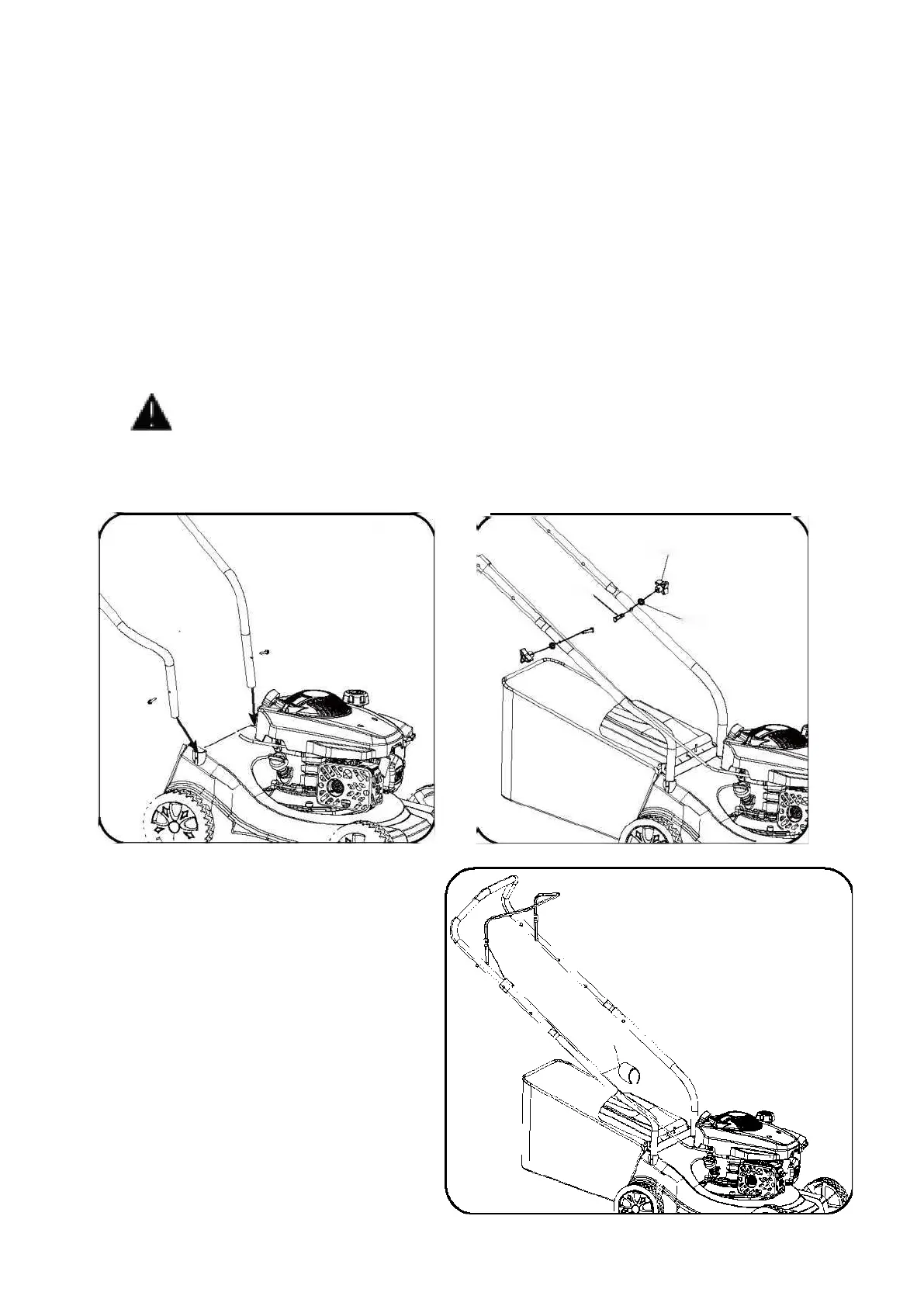

As shown in Fig 3&4
5. ut the lower push rod into the push rod connection hole on the chassis, and then
fix it on the chassis with screws.
6. Unfold the upper handle and fix it to lower handle By using the big knobs and the blots
on each side.
NOTE: Make sure the rope guide is on the right handle, when you stand behind
the mower.
Tidy the connection cord
As shown in Fig 5
Fix the connection cord to the handle
With the cord clip, (supplied)
9
Fig 3
Fig 4
Knobs
Washer
Bolt
Fig 5
Clip
