26

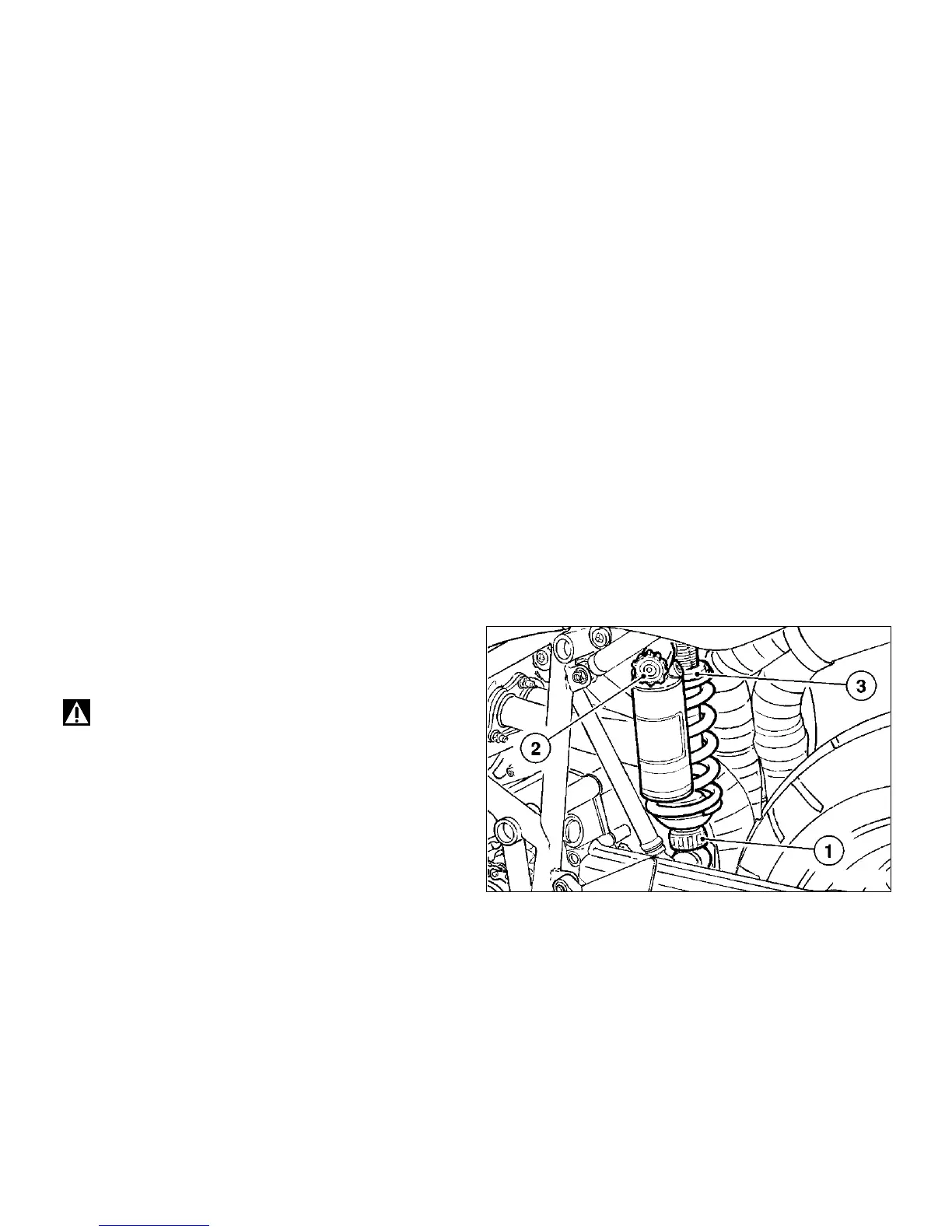

Rear shock absorber adjusters (fig. 18)
The rear shock absorber has outer adjusters that enable
you to adjust your motorcycle to the load.
The adjuster (1) located on the left side, on the
connection holding the shock absorber to the swingarm,
controls rebound damping.
The adjuster (2) on the rear shock absorber expansion
reservoir controls compression damping.
Turn the adjusters (1 and 2) clockwise to increase
damping, anticlockwise to reduce it.
STANDARD setting:
turn the adjusters (1 and 2) all the way in (clockwise) then
slacken them 14 clicks.
Two ring nuts (3), located on the top section of the rear
shock absorber are used to adjust the outer spring
preload.
To change spring preload, slacken the upper ring nut.
Then tighten or slacken the lower ring nut to increase
or decrease spring preload as required.
Warning
Use a specific pin wrench only to turn the preload
adjusting nut. Be careful when turning the nut to avoid
hurting your hand hitting motorcycle parts. The pin may
slip out of the nut recess while carrying out such
operation.
The rear shock absorber is filled with gas under pressure
and may cause severe damage if taken apart by unskilled
persons.
Before carrying a passenger and a load, set the rear
shock absorber spring to maximum preload to improve
motorcycle handling and keep safe clearance from the
ground. You may find that rebound damping needs
readjusting.
fig. 18
