HC412
HC412 FC (with on board open position mechanical
limit)
each model is also available in 24V version

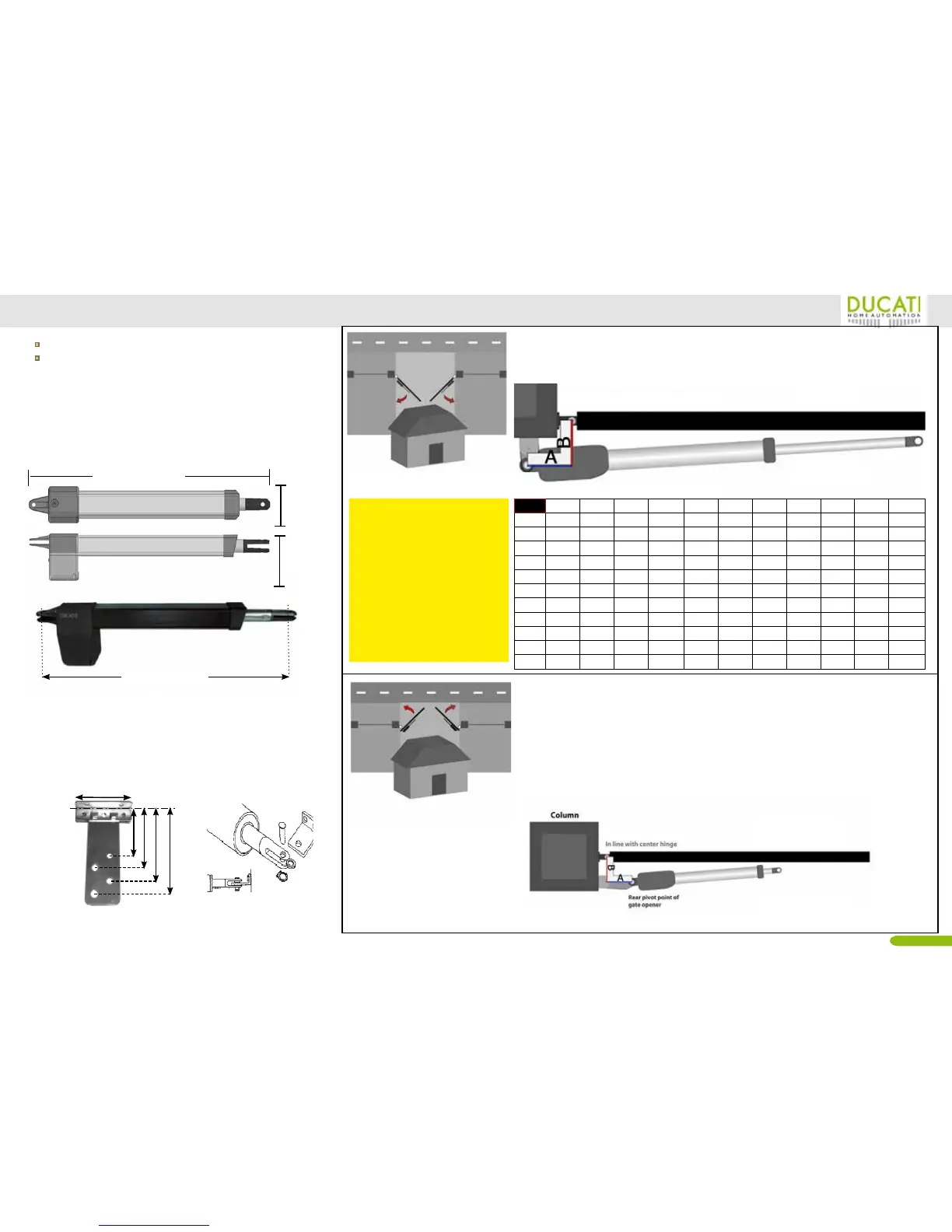

DUCATI actuator model HC412 Installation diagram
OUTSIDE
INSIDE
PUSH TO OPEN OPERATION (opens towards outside)
If your driveway slopes up after the gate, preventing it from swin-
ging in. This means the gate operator is mounted on the inside
of the property and pushes your gate out away from the property.
Warning: only compatible with telescopic tube actuators, Check
the overall dimensions before installation.
Warning:remember to reverse the polarity of the motor cables
when connecting to the electronic board
Supplied xing braket:
choose the hole most suitable to your gate. you
can cut the plate if necessary
A = min. 8cm max. 14cm
B = min. 8cm max. 14cm
PULL TO OPEN OPERATION ( opens towards inside)
This means the gate operator is mounted on the inside of the property
and pulls your gate in towards the property to open.
OUTSIDE
INSIDE
Rear pivot point of gate opener
In line with center hinge
D= 9 cm
D= 11cm
D= 13cm
D= 15,5 cm
10cm
Post xing Front xing
METRIC CONVERSION
1 cm = 1⁄2
”
= 0,3
”
10 cm = 4
”
12 cm = 4
3⁄4
”
= 4,7
”
14 cm = 5
1⁄2”
= 5,5“
16 cm = 6
1⁄5”
= 6,2
”
18 cm = 7
”
20 cm = 7
7/8”
= 7,87
”
25 cm = 9
3/4"
= 9,8
”
28 cm = 11
”
Maximal wing dimension:
Maximal wing lenght: up to 3,5m/ 11 ft
Maximal wing weight: up to 300kg/ 660lb
100
mm
160
mm
720÷1120 mm
720 -1120 mm
TAB
A= 8cm A= 10cm A= 12cm A= 14cm A= 16 cm A= 18cm A= 20cm A= 22cm A= 24cm A= 26cm A= 28cm
B= 8cm
16 sec/97° 18sec/110° 21sec/118° 23sec/125° 23sec/130° 24sec/135° 26sec/137° 27sec/115° 31sec/108° 32sec/103° 32sec/105°
B= 10cm
18sec/98° 19sec/107° 22sec/114° 23sec/121° 25sec/127° 27sec/131° 27sec/125° 29sec/115° 31sec/108° 32sec/103° 33sec/99°
B= 12cm
20sec/98° 23sec/105° 24sec/112° 26sec/118° 27sec/124° 29sec/127° 30sec/120° 33sec/110° 34sec/104° 35sec/100° 369sec/96°
B= 14cm
21sec/95° 24sec/103° 25sec/108° 27sec/105° 28sec/120° 30sec/125° 32sec/111° 33sec/105° 35sec/99° 36sec/95° 37sec/93°
B= 16cm
23sec/94° 25sec/102° 28sec/108° 30sec/103° 31sec/118° 33sec/113° 34sec/102° 35sec/98° 37sec/94° 38sec/90°
B= 18cm
26sec/94° 27sec/100° 29sec/106° 32sec/111° 33sec/115° 34sec/105° 36sec/97° 36sec/93° 38sec/90°
B= 20cm
28sec/94° 30sec/100° 32sec/105° 34sec/109° 35sec/103° 37sec/96° 40sec/90°
B= 22cm
29sec/93° 33sec/99° 33sec/103° 34sec/106° 37sec/95° 38sec/90°
B= 24cm
32sec/93 34sec/99 36sec/102 37sec/93°
B= 26cm
34sec/93° 36sec/98° 37sec/92°
B= 28cm
38sec/93°
