ABS
The motorcycle is equipped with ABS, the instrument
panel indicates ABS status (on or off) by switching
off, on or flashing the ABS warning light.
The instrument panel displays:
- if the ABS is active, the message "ABS" and the
rectangle with the set intervention level number
(1 to 3) steady ON;
- if ABS is active, but system is in degraded
operation due to a fault (no "cornering" feature),
ABS lettering (flashing), the ABS intervention
level number, 1 to 8 (flashing) and the relevant
rectangle; also the ABS warning light starts
flashing;
- if the ABS is disabled, the "ABS" lettering, the
dash "-" and the ABS warning light will be steady
ON;
- if there is a fault in the system, the ABS lettering
will flash.

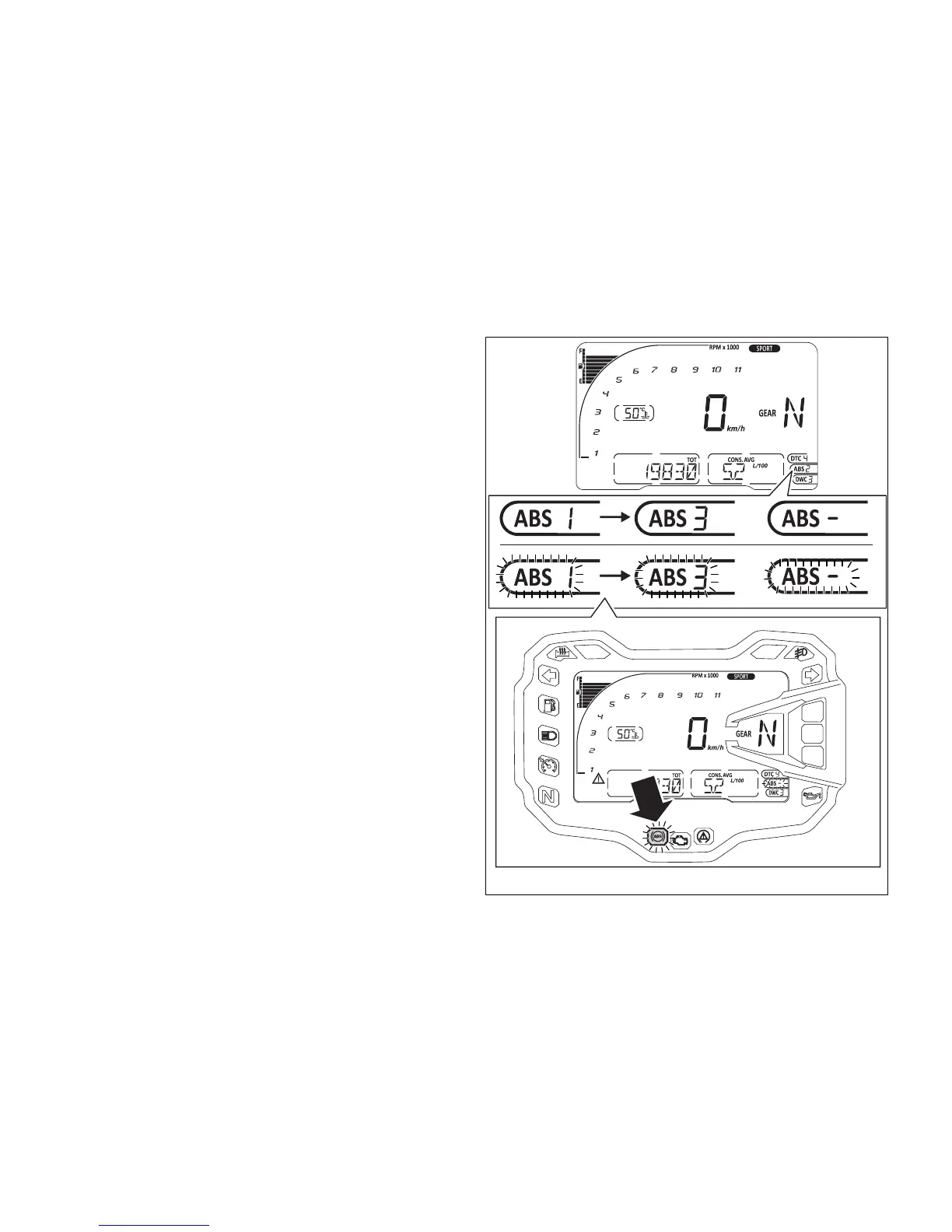

Fig. 24
