Engine rpm indication (RPM)
The instrument panel receives the engine rpm
information and displays it on the relevant bargraph
(in TRACK, FULL and OFF ROAD display modes
only). The information is displayed by the bargraph
filling from the to the right according to the
engine rpm and with the enlargement of the
numerical digit of the relevant miles (e.g., if the RPM
value is "8000" or higher, number "8" is displayed
bigger).
When reaching 12000 rpm no numerical digit is
enlarged.
The area for the 8500-10000 rpm range (pre-
warning area) is indicated on the display in orange,
used for filling the bar graph (orange area).
The area for the 10000-11000 rpm range (warning
area) is indicated on the display in red, used for filling
the bar graph (red area).

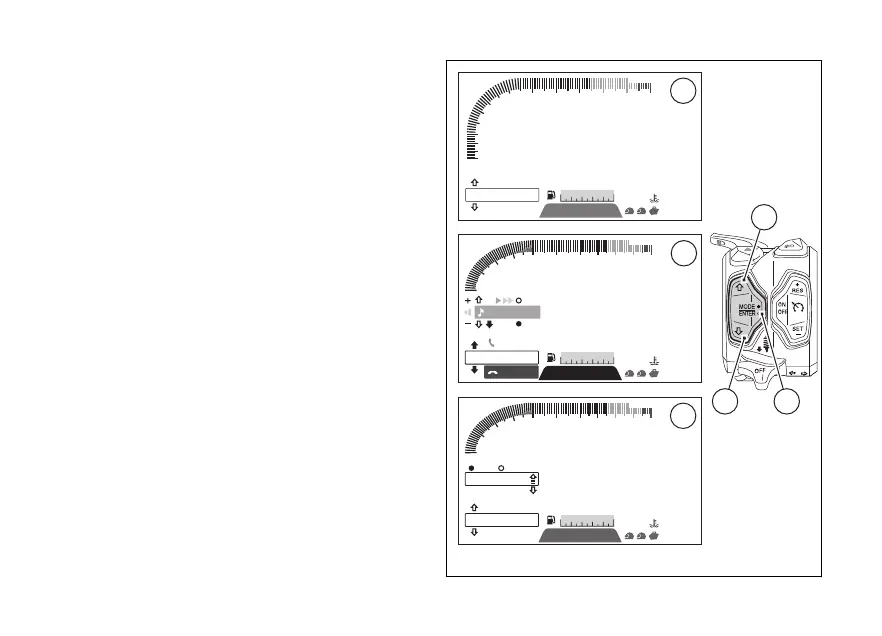

TRACK (A) layout indicates rpm in a way
compared to FULL (B) and OFF ROAD (C) layouts.
CITY layout does not provide for rpm indication.
When the threshold before the rpm limiter is
reached, the corresponding warning lights will turn
on.
6
2538
LAP
LO
DQS
DTC 5
UP/DW
3ABS
11
SPORT
109876
5
2
3
4
1
10:22
P.M.
RPM x 1000
GEAR
Km
Km/h
°C
TOT
299
260
MENU
13.5
Km/l
Km
SETTING
RANGE
CONS
AVG1
299
6
10:22
2538
LO
DQS
DTC
ABS
11
TOURING
1098765
4
3
2
1
P.M.
RPM x 1000
GEAR
Km
°C
TOT
SKIP
PAUSE
TRACK 01 - U2...
EXIT
Km / h
ACTIVE
END CALL
>>> MARIO ROSSI
5
UP/DW
3
299
6
10:22
23.8
2538
LO
DQS
DTC
ABS
11
ENDURO
1098765
4
3
2
1
P.M.
RPM x 1000
GEAR
Km
°C
TOT
PAUSERESET
EXIT INCREASE
TRIP
MASTER
Km / h
Km
2.2 2.2
ON
MENU
FRONT
TIRE
SETTING
REAR
TIRE
TRIP
MASTER
3
5
UP/DW
A
B
C
42
1
Fig 18
