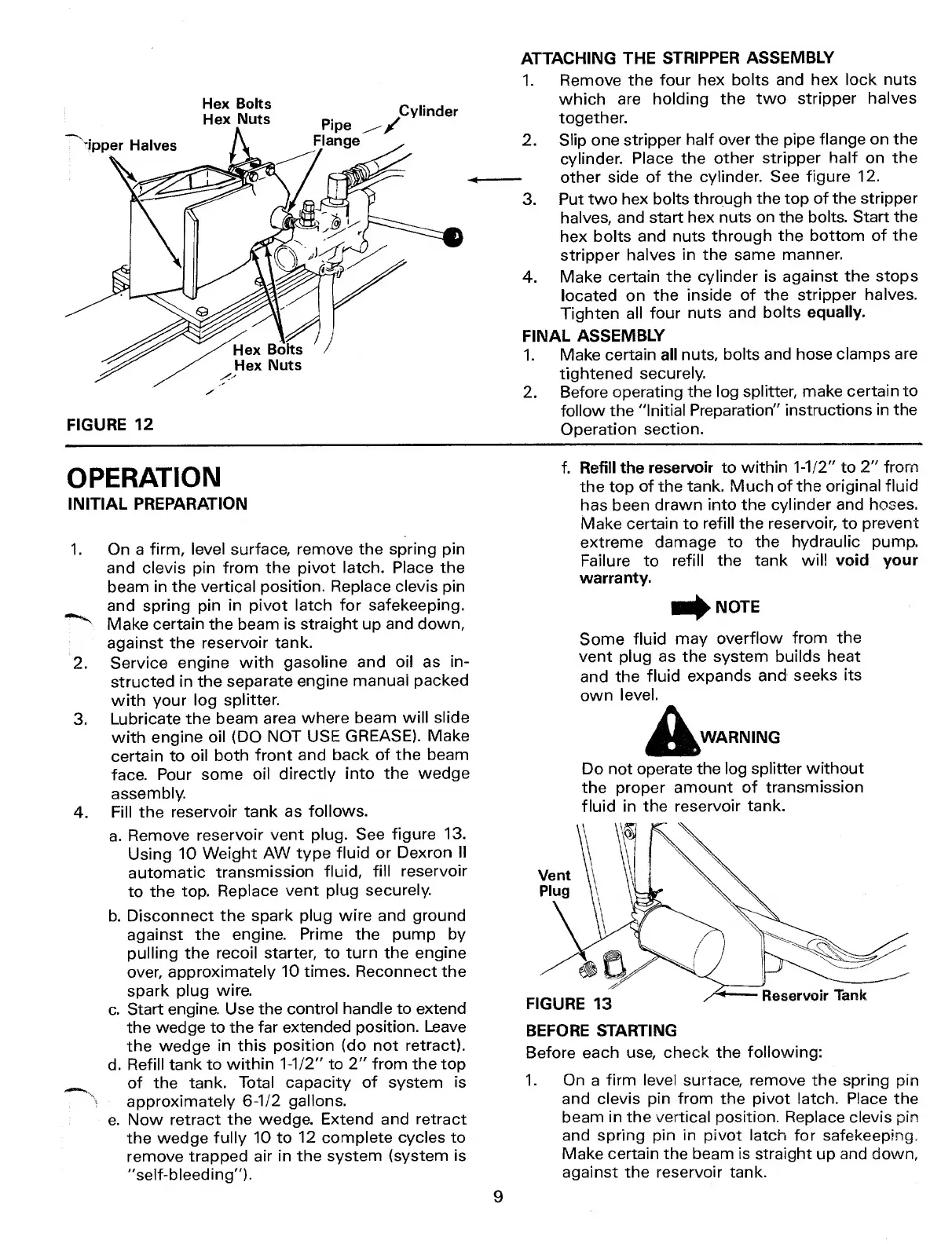

FIGURE
12
ATTACHING
THE
STRIPPER
ASSEMBLY
1.
Remove
the
four
hex
bolts
and
hex
lock
nuts
which
are
holding
the
two
stripper
halves
together.
2.
Slip
one
stripper
half
over
the
pipe
flange
on
the
cylinder.
Place
the
other
stripper
half
on
the
other
side
of
the
cylinder.
See
figure
12.
3.
Put
two
hex
bolts
through
the
top
of
the
stripper
halves,
and
start
hex
nuts
on
the
bolts.
Start
the
hex
bolts
and
nuts
through
the
bottom
of
the
stripper
halves
in
the
same
manner.
4.
Make
certain
the
cylinder
is
against
the
stops
located
on
the
inside
of
the
stripper
halves.
Tighten
all
four
nuts
and
bolts
equally.
FINAL
ASSEMBLY
1.
Make
certain
ail
nuts,
bolts
and
hose
clamps
are
tightened
securely.
2.
Before
operating
the
log
splitter,
make
certain
to
follow
the
"Initial
Preparation"
instructions
in
the
Operation
section.
OPERATION
INITIAL
PREPARATION
1.
On
a
firm,
level
surface,
remove
the
spring
pin
and
clevis
pin
from
the
pivot
latch.
Place
the
beam
in
the
vertical
position.
Replace
clevis
pin
and
spring
pin
in
pivot
latch
for
safekeeping.
Make
certain
the
beam
is
straight
up
and
down,
against
the
reservoir
tank.
2.
Service
engine
with
gasoline
and
oil
as
in¬
structed
in
the
separate
engine
manual
packed
with
your
log
splitter.
3.
Lubricate
the
beam
area
where
beam
will
slide
with
engine
oil
(DO
NOT
USE
GREASE).
Make
certain
to
oil
both
front
and
back
of
the
beam
face.
Pour
some
oil
directly
into
the
wedge
assembly.
4.
Fill
the
reservoir
tank
as
follows.
a.
R
emove
reservoir
vent
plug.
See
figure
13.
Using
10
Weight
AW
type
fluid
or
Dexron
II
automatic
transmission
fluid,
fill
reservoir
to
the
top.
Replace
vent
plug
securely.
b.
Disconnect
the
spark
plug
wire
and
ground
against
the
engine.
Prime
the
pump
by
pulling
the
recoil
starter,
to
turn
the
engine
over,
approximately
10
times.
Reconnect
the
spark
plug
wire.
c.
Start
engine.
Use
the
control
handle
to
extend
the
wedge
to
the
far
extended
position.
Leave
the
wedge
in
this
position
(do
not
retract).
d.
Refill
tank
to
within
1-1/2"
to
2"
from
the
top
of
the
tank.
Total
capacity
of
system
is
approximately
6-1/2
gallons.
e.
Now
retract
the
wedge.
Extend
and
retract
the
wedge
fully
10
to
12
complete
cycles
to
remove
trapped
air
in
the
system
(system
is
"self-bleeding").
f.
Refill
the
reservoir
to
within
1-1/2"
to
2"
from
the
top
of
the
tank.
Much
of
the
original
fluid
has
been
drawn
into
the
cylinder
and
hoses.
Make
certain
to
refill
the
reservoir,
to
prevent
extreme
damage
to
the
hydraulic
pump.
Failure
to
refill
the
tank
will
void
your
warranty.
NOTE
Some
fluid
may
overflow
from
the
vent
plug
as
the
system
builds
heat
and
the
fluid
expands
and
seeks
its
own
level.
^^^WARNING
Do
not
operate
the
log
splitter
without
the
proper
amount
of
transmission
fluid
in
the
reservoir
tank.
BEFORE
STARTING
Before
each
use,
check
the
following:
1.
On
a
firm
level
surtace,
remove
the
spring
pin
and
clevis
pin
from
the
pivot
latch.
Place
the
beam
in
the
vertical
position.
Replace
clevis
pin
and
spring
pin
in
pivot
latch
for
safekeeping.
Make
certain
the
beam
is
straight
up
and
down,
against
the
reservoir
tank.
9
