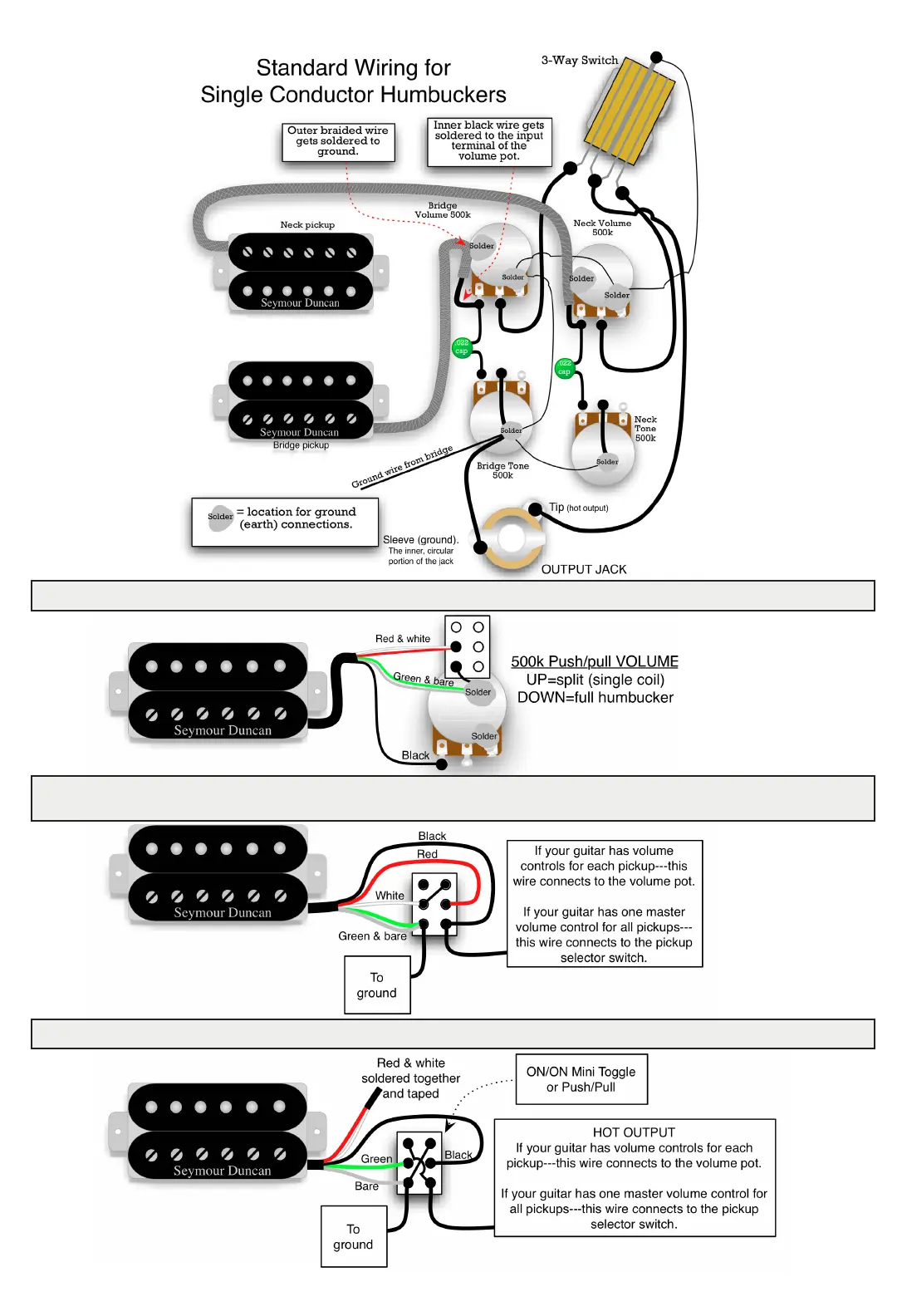

Duncan SH18 - Seymour Duncan Pickup Wiring Options; Single Conductor Humbucker Wiring; Coil Splitting Wiring; Series;Parallel Pickup Configuration

P/N 501005-110 Rev. I
Visit seymourduncan.com for additional wiring diagrams.
Additional Wiring Options
Series/Parallel (with Push/Pull)
Series/Split/Parallel (with on/on/on mini-toggle)
Phase Switching
Coil Splitting
