P/N 501010-100 Rev. B

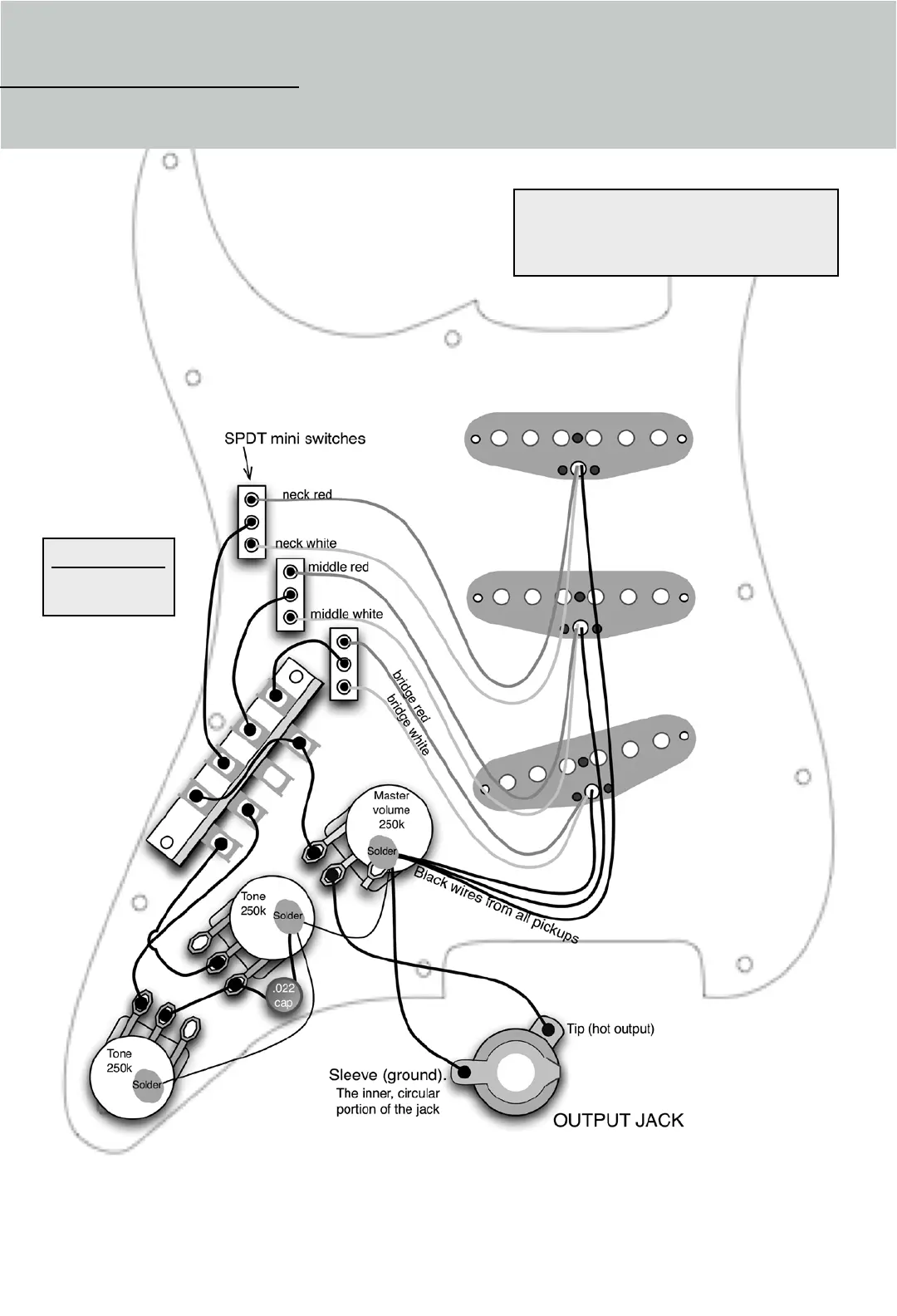

Wiring Diagram for
Tapped Pickup Models:
SSL-3T, SSL-4T, SSL-5T, SSL-7T
If two pickups sound thin and wimpy when used together, chances are, they’re out
of phase with each other. If you’re combining your Seymour Duncan pickup(s) with
Fender
®
pickup(s) in the same guitar, you’ll need to reverse the black and white wires
on the Seymour Duncan. In other words, solder the white wire to ground and the black
wire to the selector switch.
For real-time peer-to-peer tech support, consult
the gurus on the Seymour Duncan User Group
Forum. Also, check out the specialty wiring
diagrams available for free on our site.
Switches
Up = Tapped
Down = Full
We’re not just pickups anymore. Seymour Duncan also makes super cool stomp boxes.
And our sister company, D-TAR, is turning out some really hip products for
serious acoustic guitarists (d-tar.com).
Visit seymourduncan.com for additional wiring diagrams.
5-Way Switch
