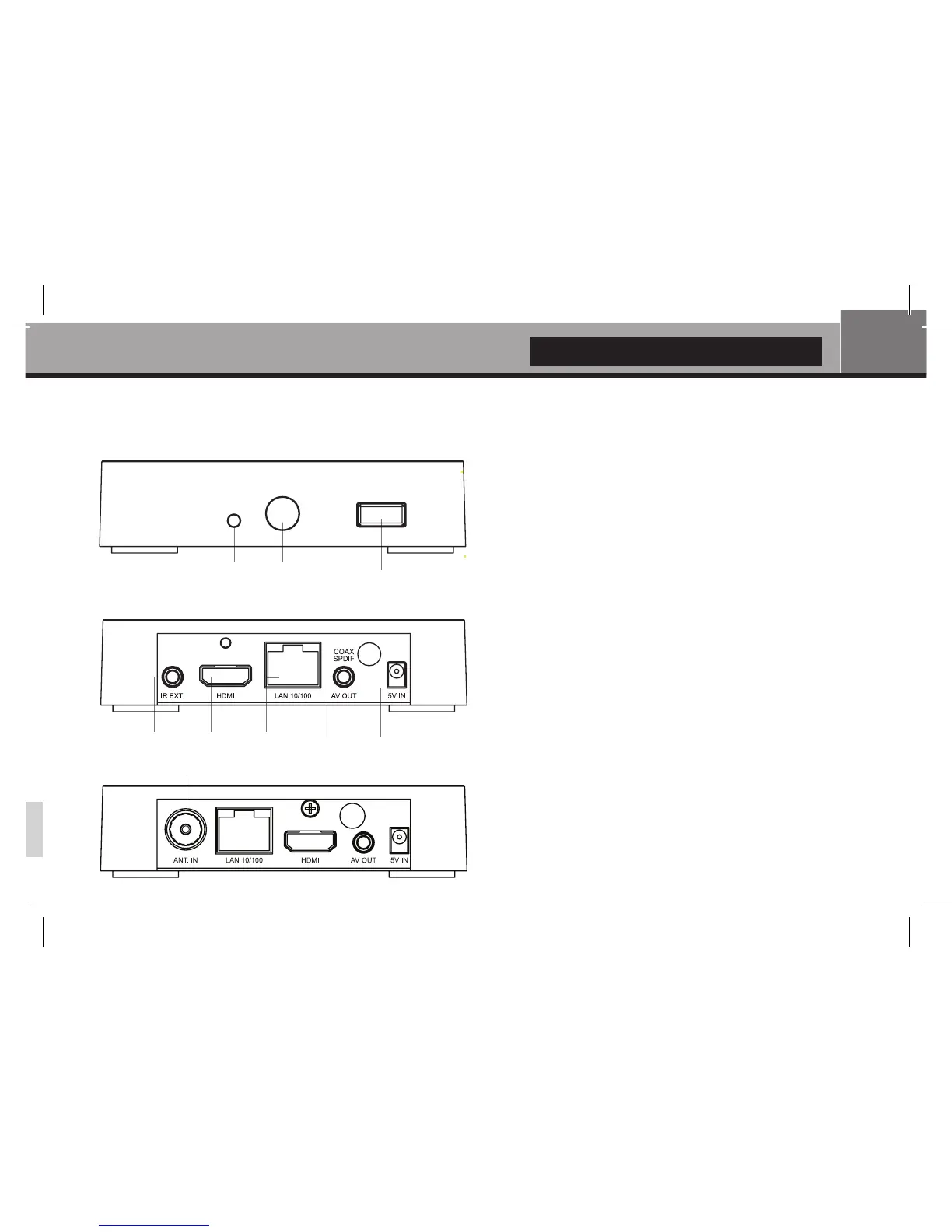

Front view
Exterior
1. LED indicator
2. IR eye
3. USB 2.0 host
21 3
Rear view
21 3 4 5
1. IR Extender
2. HDMI
3. LAN 10/100
4. 3.5mm minijack AV out*
5. DC power 5V
6. Antenna input
*Composite video out, analog 2.0 audio out,
digital coaxial SPDIF out (via left channel on
analog audio output).
modifications with internal tuner
modifications without internal tuner
