Dunkirk Q95M-200 - Page 28

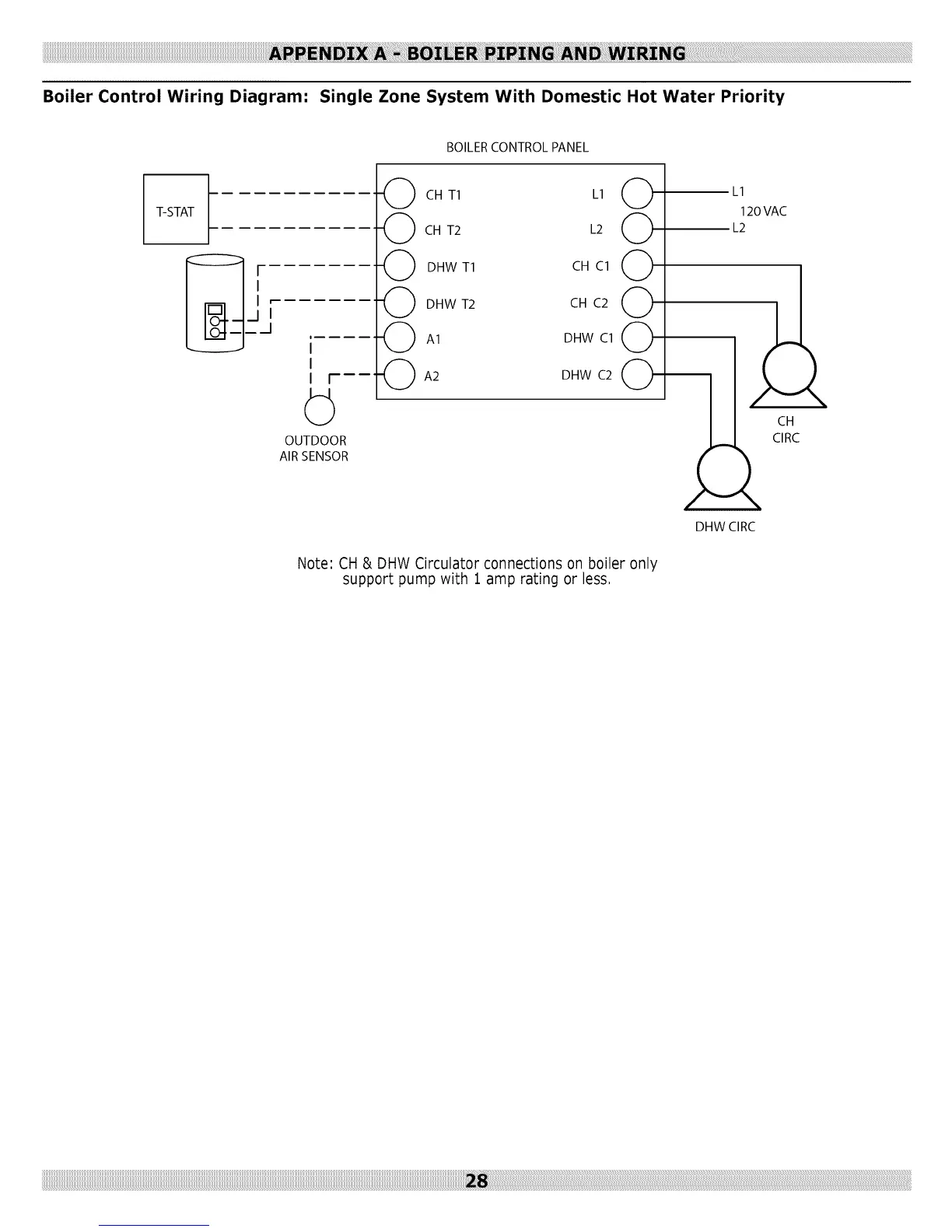

Boiler Control Wiring Diagram: Single Zone System With Domestic Hot Water Priority
T-STAT
I
I
I r--
©
OUTDOOR
AIR SENSOR
BOILER CONTROL PANEL
CH T1 L1 0
Note: CH & DHW Circulator connections on boiler only
support pump with 1 amp rating or less.
L1
120 VAC
L2
/
CH
CIRC
DHW CIRC
