Dunraven APOLLO ultrasonic User Manual

Ver1214
2

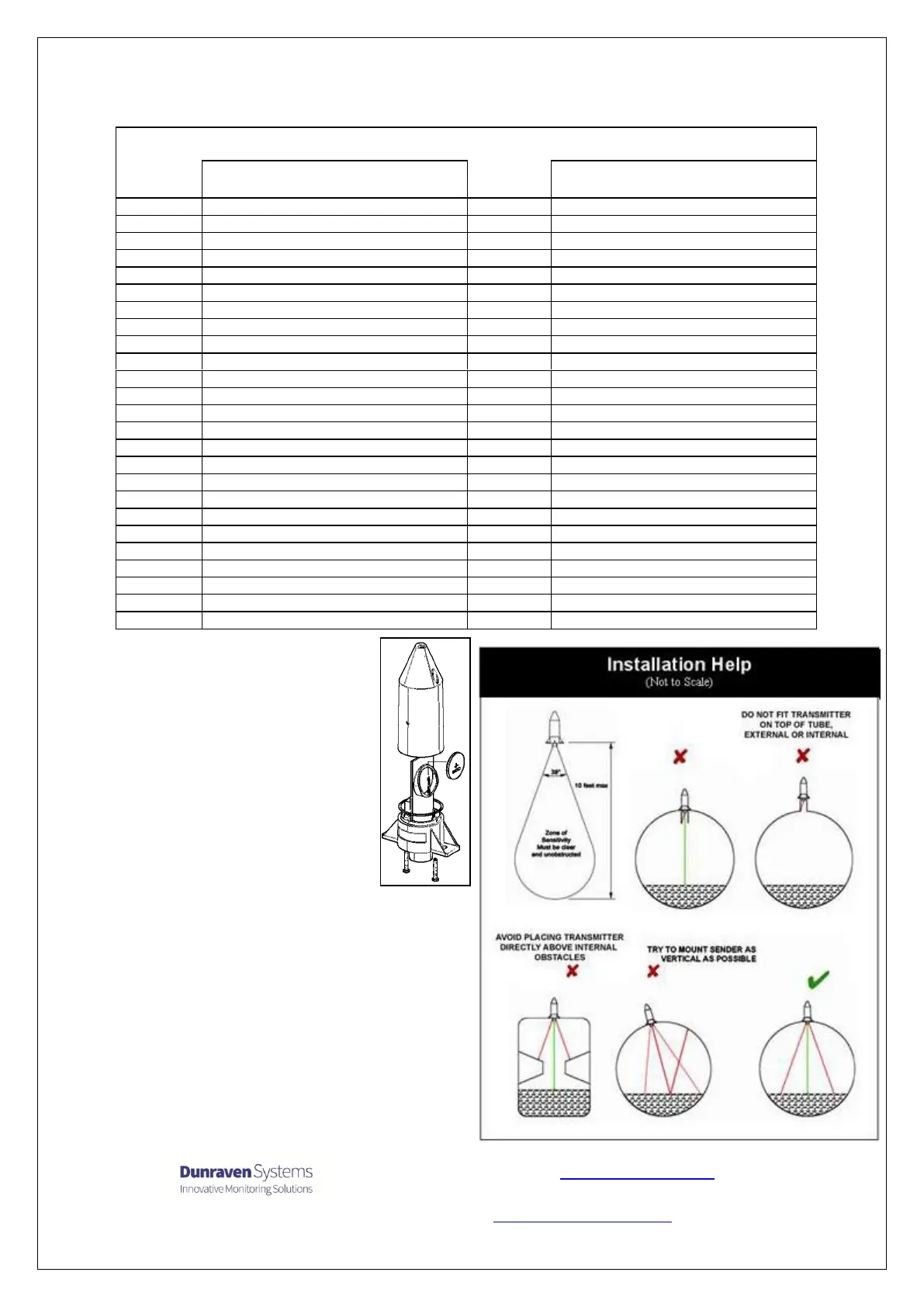

APOLLO ULTRASONIC RECEIVER MULTI SWITCH SETTING CHART
Measure the vertical height of the tank from the transmitter position on top of the tank to the bottom of the tank.
Read to the nearest measurement on the chart. Switch 1 on/up to enable the low level audible warning
Height of
tank in mm.
Set Switches On
Height of
tank in mm.
Set Switches On
500
1
1750
1,3,4,5,6,7
550
1,7
1800
1,2,8
600
1,6,8
1850
1,2,7,8
650
1,6,7,8
1900
1,2,6,7
700
1,5,7
1950
1,2,5
750
1,5,6
2000
1,2,5,7,8
800
1,5,6,7,8
2050
1,2,5,6,8
850
1,4,8
2100
1,2,4
900
1,4,6
2150
1,2,4,7
950
1,4,6,7
2200
1,2,4,6,8
1000
1,4,5,8
2250
1,2,4,6,7,8
1050
1,4,5,7,8
2300
1,2,4,5,7
1100
1,4,5,6,7
2350
1,2,4,5,6
1150
1,3
2400
1,2,4,5,6,7,8
1200
1,3,7,8
2450
1,2,3,8
1250
1,3,6,8
2500
1,2,3,6
1300
1,3,5
2550
1,2,3,6,7
1350
1,3,5,7
2600
1,2,3,5,8
1400
1,3,5,6,8
2650
1,2,3,5,7,8
1450
1,3,5,6,7,8
2700
1,2,3,5,6,7
1500
1,3,4,7
2750
1,2,3,4
1550
1,3,4,6
2800
1,2,3,4,7,8
1600
1,3,4,6,7,8
2850
1,2,3,4,6,8
1650
1,3,4,5,8
2900
1,2,3,4,5
1700
1,3,4,5,6
3000
1,2,3,4,5,6,8
Battery removal
Remove the transmitter unit from the tank and
take it to a safe location.
The battery can be accessed by removing 2
self-tapping screws from the base of the unit.
See sketch.
Remove the old battery noting the orientation
(‘+’ mark facing outwards), and replace with a
new battery. 3V-CR2430.
Re-assemble, ensuring the O-Ring is
undamaged and secured in position.
Re-locate the transmitter on the tank.
No Need to Rematch
Specifications
Tank Depth measurement:
Minimum depth: 0.1 m, Maximum depth: 3 m
Max communication distance:
200m in normal ‘line of sight’ conditions
Power Supply:
Receiver: 150-250V, 50-60Hz, Meets EN60335
Transmitter: 3-volt lithium cell
Battery life:
10 years (estimated life)
Wireless communications:
433 mHz.FM transmission, EN 300-220
Max and Min Operation Temp (Transmitter):
Operating temperature range -10° - +60°C.
Not Suitable for pressurised containers. Use on tanks vented to Atmosphere.
Warranty
This unit carries a 1 year warranty when used under normal
operating scenarios. NOTE: warranty is void if transmitter seal is
broken
The contents and images in this guide are subject to
copyright and are not to be reproduced without the
permission of Dunraven Systems Limited
© Dunraven Systems Limited
For additional information or to view installation videos please visit
our website www.dunravensystems.com
For Support or assistance please email
support@dunravensystems.com
Telephone: 00353 (0) 42 9386505
