Duralast 80-375 - ½” Drive Impact Wrench Parts List; ½” Drive Impact Wrench Parts Diagram

6
Operating Instructions and Parts Manual 80-375
17 PIECE
AIR TOOL KIT
®
®
05/15
2015 DURALAST
Item # Part Name Quantity
80-360-1 Housing 1
80-360-2 Front Housing 1
80-360-3 Oily Bushing 1
80-360-4 Anti-Off Circle 1
80-360-5 O-Ring 1
80-360-6 Driving Shaft 1
80-360-7 Hammer Cage 1
80-360-8 Pin 1
80-360-9 Hammer 1
80-360-10 Cam 1
80-360-11 Front Gasket 1
80-360-12 Bearing 2
80-360-13 Front Cylinder Head 1
80-360-14 Blade 6
80-360-15 Rotor 1
80-360-16 Straight Pin 1
80-360-17 Cylinder 1
80-360-18 Straight Pin 1
80-360-19 Back Cylinder Head 1
80-360-20 Rear Gasket 1
Item # Part Name Quantity
80-360-21 Adjustment Knob 1
80-360-22 Knob Spring 1
80-360-23 Steel Ball 1
80-360-24 O-Ring 1
80-360-25 O-Ring 1
80-360-26 Cap 1
80-360-27 Screw 4
80-360-28 Trigger 1
80-360-29 Pin 1
80-360-30 Straight Pin 1
80-360-31 Eye Ring 1
80-360-32 Valve Pole 1
80-360-33 Valve 1
80-360-34 Spring 1
80-360-35 Muffler Cover 1
80-360-36 Air Inlet Connector 1
80-360-37 O-Ring 1
80-360-38 Muffler Cotton 1
80-360-39 Quick Connect Nipple 1
Note:
Not all components of the Impact Wrench are replacement items, but are illustrated as a convenient reference for location
and position in the assembly sequence.
39
Parts List

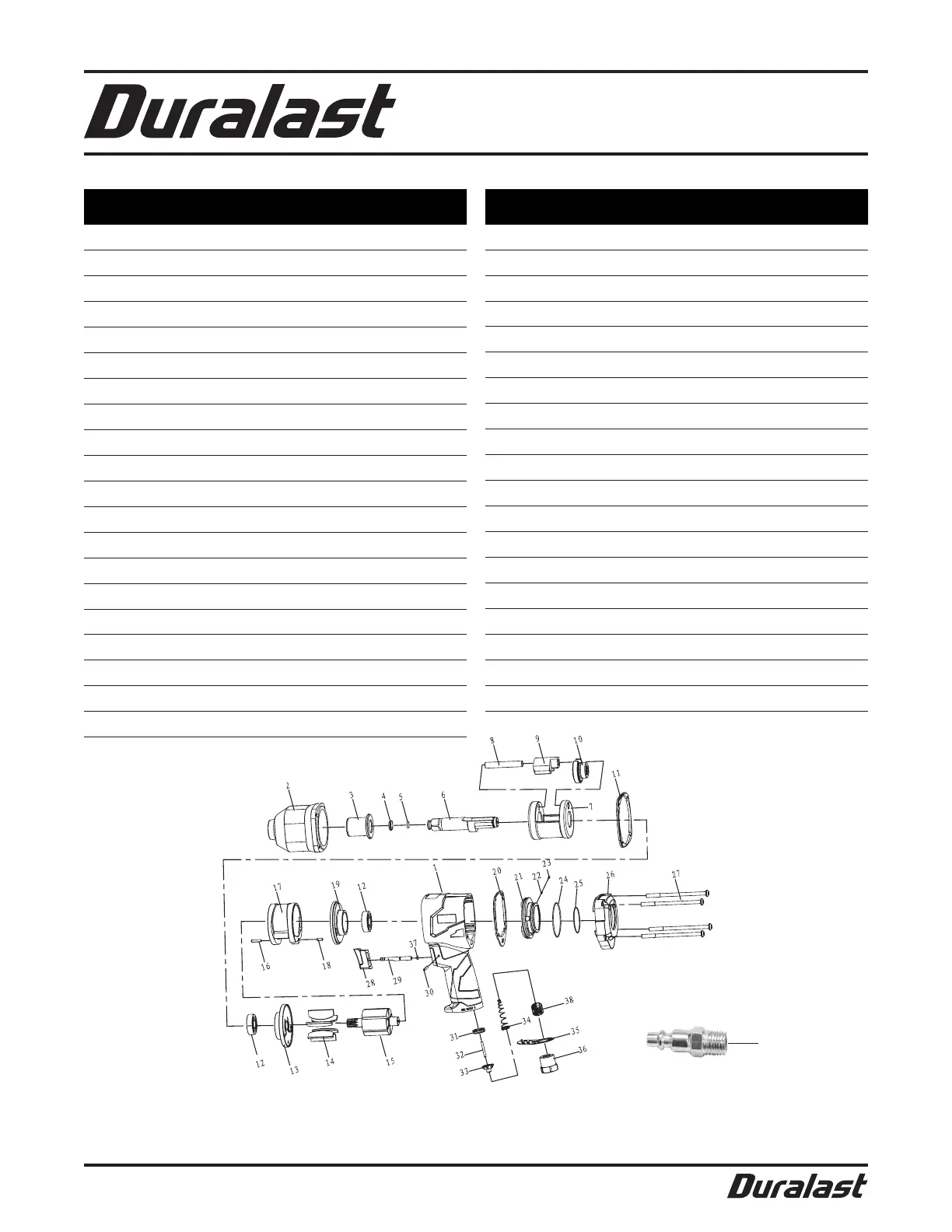

Parts Diagram
½” DRIVE IMPACT WRENCH
