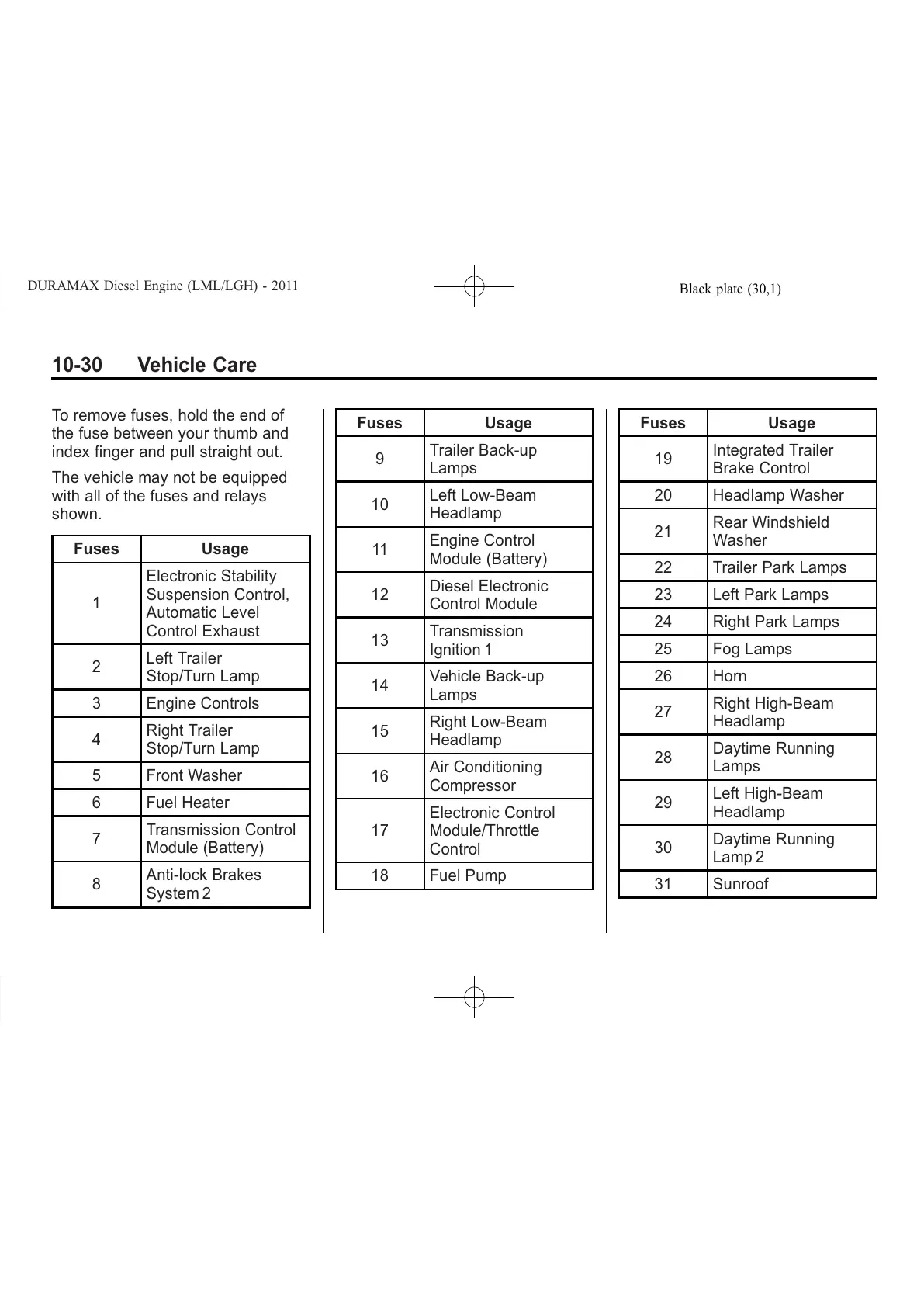

DURAMAX Diesel Engine (LML/LGH) - 2011
10-30 Vehicle Care
To remove fuses, hold the end of
the fuse between your thumb and
index finger and pull straight out.
The vehicle may not be equipped
with all of the fuses and relays
shown.
Fuses Usage
1
Electronic Stability
Suspension Control,
Automatic Level
Control Exhaust
2
Left Trailer
Stop/Turn Lamp
3 Engine Controls
4
Right Trailer
Stop/Turn Lamp
5 Front Washer
6 Fuel Heater
7
Transmission Control
Module (Battery)
8
Anti-lock Brakes
System 2
Fuses Usage
9
Trailer Back-up
Lamps
10
Left Low-Beam
Headlamp
11
Engine Control
Module (Battery)
12
Diesel Electronic
Control Module
13
Transmission
Ignition 1
14
Vehicle Back-up
Lamps
15
Right Low-Beam
Headlamp
16
Air Conditioning
Compressor
17
Electronic Control
Module/Throttle
Control
18 Fuel Pump
Fuses Usage
19
Integrated Trailer
Brake Control
20 Headlamp Washer
21
Rear Windshield
Washer
22 Trailer Park Lamps
23 Left Park Lamps
24 Right Park Lamps
25 Fog Lamps
26 Horn
27
Right High-Beam
Headlamp
28
Daytime Running
Lamps
29
Left High-Beam
Headlamp
30
Daytime Running
Lamp 2
31 Sunroof
All manuals and user guides at all-guides.com

DuraMax LML Specifications

General

Block Material	Cast Iron
Head Material	Aluminum
Displacement	6.6L
Horsepower	397 hp @ 3000 rpm
Torque	765 lb-ft @ 1600 rpm
Fuel System	High-pressure common rail direct injection
Turbocharger	Variable geometry turbocharger
Valvetrain	Overhead Valve (OHV)
Emission Control	Diesel particulate filter (DPF)
Engine Oil Capacity	10 quarts
Bore x Stroke	103 mm x 99 mm (4.06 in x 3.90 in)
