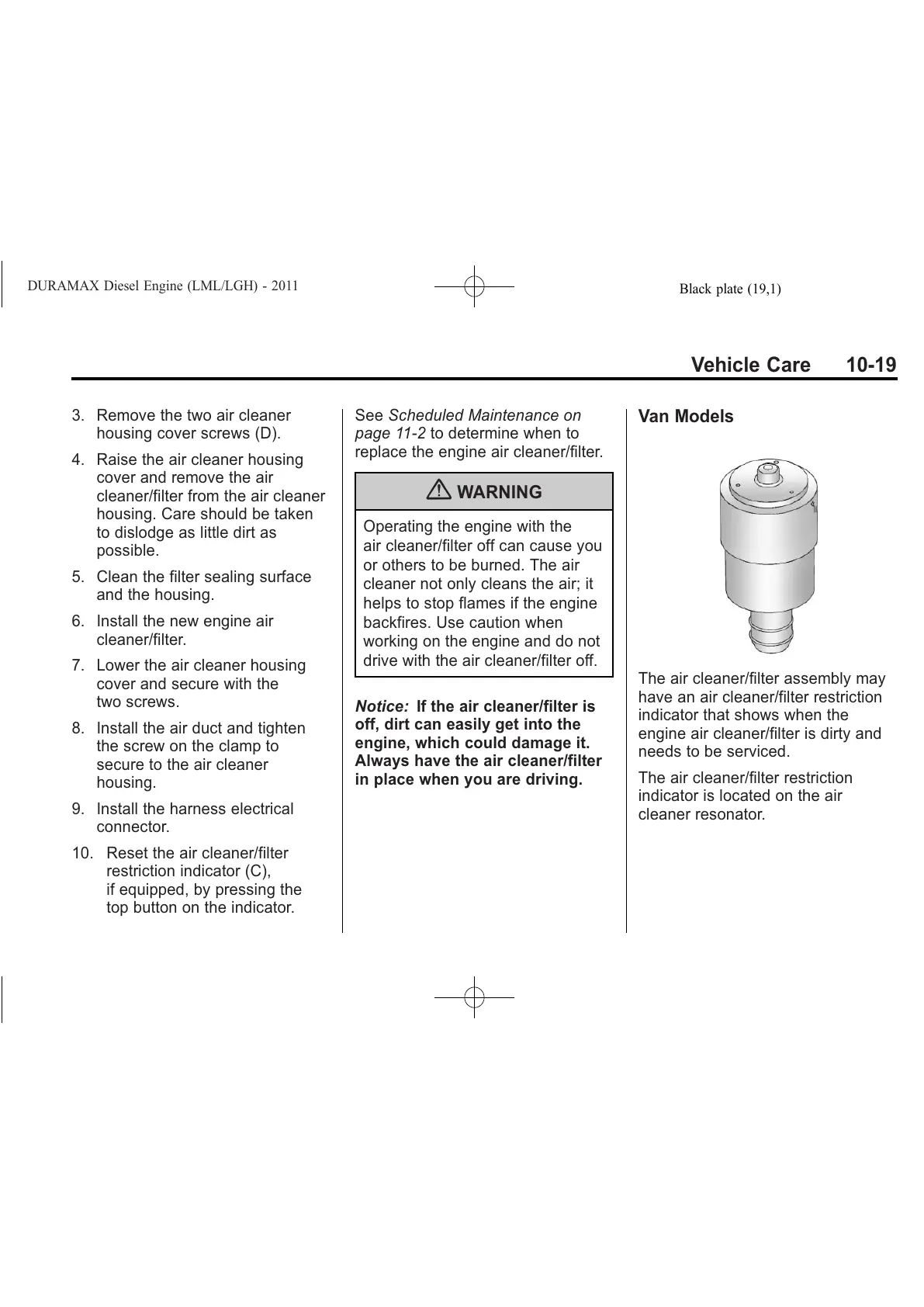

Vehicle Care 10-19
3. Remove the two air cleaner
housing cover screws (D).
4. Raise the air cleaner housing
cover and remove the air
cleaner/filter from the air cleaner
housing. Care should be taken
to dislodge as little dirt as
possible.
5. Clean the filter sealing surface
and the housing.
6. Install the new engine air
cleaner/filter.
7. Lower the air cleaner housing
cover and secure with the
two screws.
8. Install the air duct and tighten
the screw on the clamp to
secure to the air cleaner
housing.
9. Install the harness electrical
connector.
10. Reset the air cleaner/filter
restriction indicator (C),
if equipped, by pressing the
top button on the indicator.
See Scheduled Maintenance on
page 11‑2 to determine when to
replace the engine air cleaner/filter.
{
WARNING
Operating the engine with the
air cleaner/filter off can cause you
or others to be burned. The air
cleaner not only cleans the air; it
helps to stop flames if the engine
backfires. Use caution when
working on the engine and do not
drive with the air cleaner/filter off.
Notice: If the air cleaner/filter is
off, dirt can easily get into the
engine, which could damage it.
Always have the air cleaner/filter
in place when you are driving.
Van Models
The air cleaner/filter assembly may
have an air cleaner/filter restriction
indicator that shows when the
engine air cleaner/filter is dirty and
needs to be serviced.
The air cleaner/filter restriction
indicator is located on the air
cleaner resonator.
