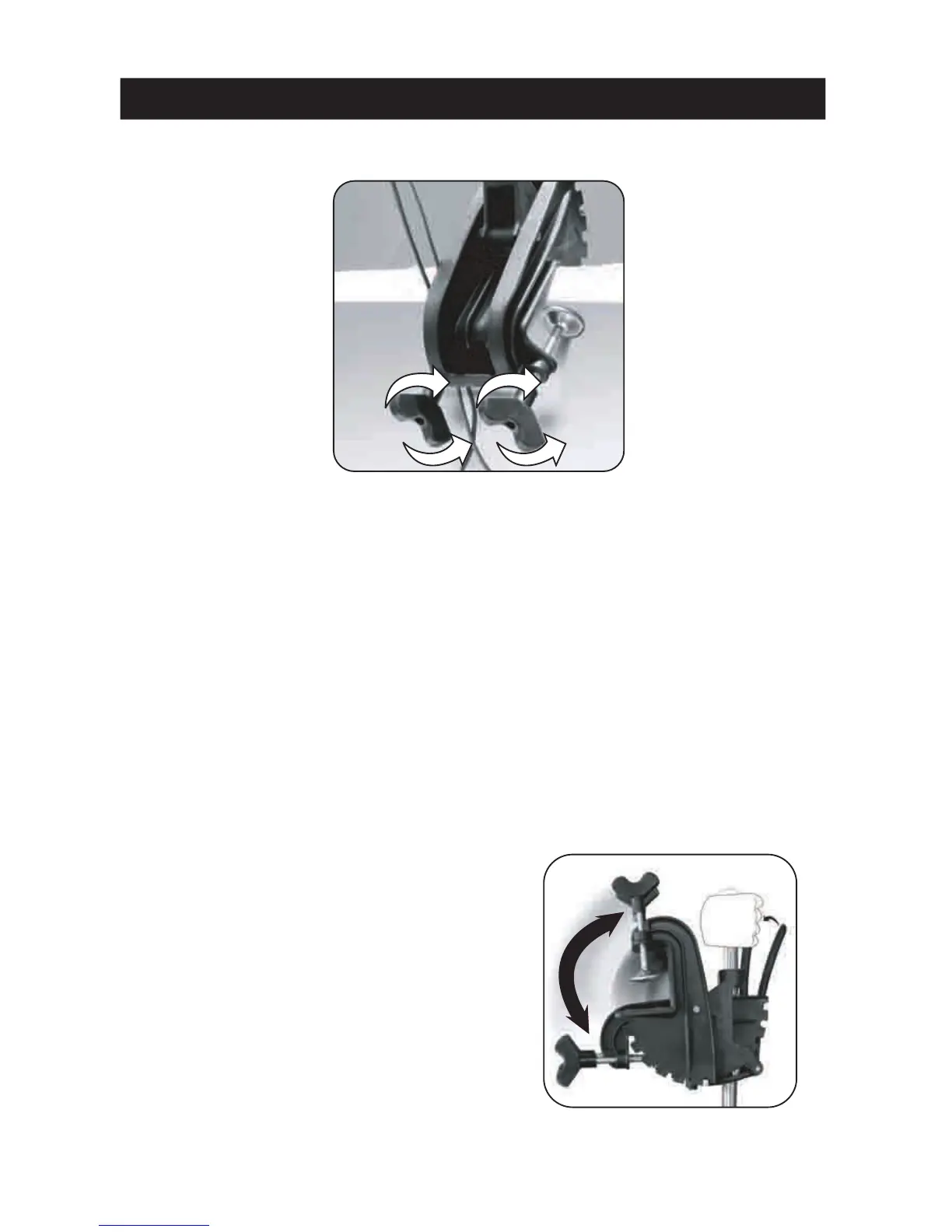

MOUNT THE MOTOR:
Install the motor on the transom of the boat. Be sure to tighten the clamp screws securely.
DEPTH ADJUSTMENT:
1. Firmly grasp the shaft and hold it steady
2. Loosen the steering tension knob and depth collar knob until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Tighten depth collar knob to secure the motor in place.
IMPORTANT: WHEN SETTING THE DEPTH BE SURE THE TOP OF THE MOTOR IS SUBMERGED AT
LEAST 12" (30 cm) TO AVOID CHURNING OR AGITATION OF SURFACE WATER. THE PROPELLER
MUST BE COMPLETELY SUBMERGED.
CAUTION:
• NEVER OPERATE YOUR MOTOR WHEN IT IS OUT OF THE WATER
• OVER-TIGHTENING THE CLAMP SCREWS CAN DAMAGE THE BRACKET.
BRACKET ADJUSTMENT:
You can lock your motor in a vertical position, angle it for shallow water or tilt it completely out of the water.
• Firmly grasp the control head or or steel shaft.
• Depress and hold the tilt lever.
• Tilt to any of the positions on the mounting bracket.
• Release the tilt lever.
4
ADJUSTMENTS
Tighten
Loose
