8.9 Connections and displays of the control

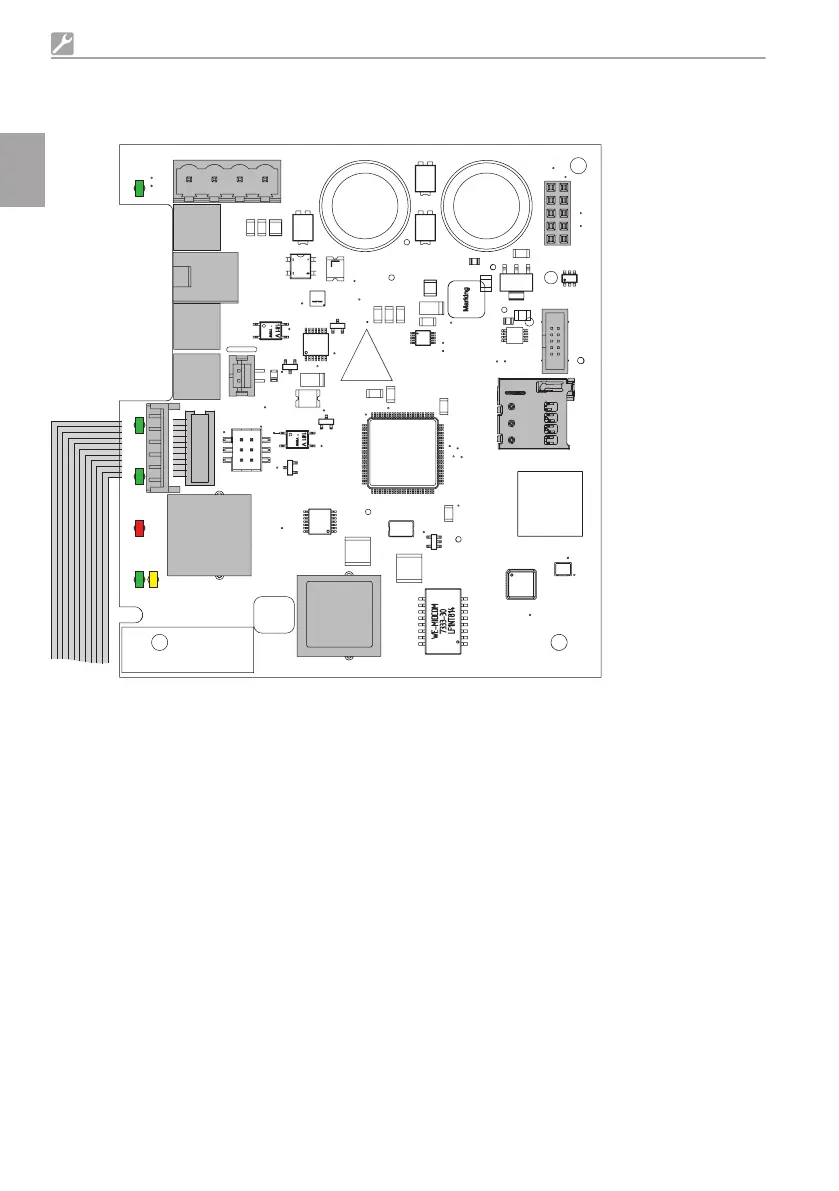

Main PCB (main board)
H1
H2
H3
H4
H5
H6
X9
X1
X2
X11
X3
X7
X6
X12
X4
X13
X10
X8
X5
X6a
X1 Spannungsversorgung, nach EN 60601‑1
X2 Signaleingang von der Schlauchablage (bei CA 1 + 2 optional)
X3 Spüleinheit oder Platzwahlventil / Sicherheitsventil (nur CAS 1)
X4 CAN bus
X6 Display panel, external (X6a = connection for predecessor model)
X7 Sensor technology
X8 Production interface
X9 Motor
X10 JTAG programming interface
X11 Integriertes Platzwahlventil / Sicherheitsventil (nur CAS 1)
X12 Network connection
X13 SD card holder (for Micro SD), optional
H1 Motor display
H2 Manifold display
H3 Display, place selection valve
H4 Display, collecting container missing
H5 Network display
H6 Network display
Assembly
30 9000-606-26/30 2103V005
EN
