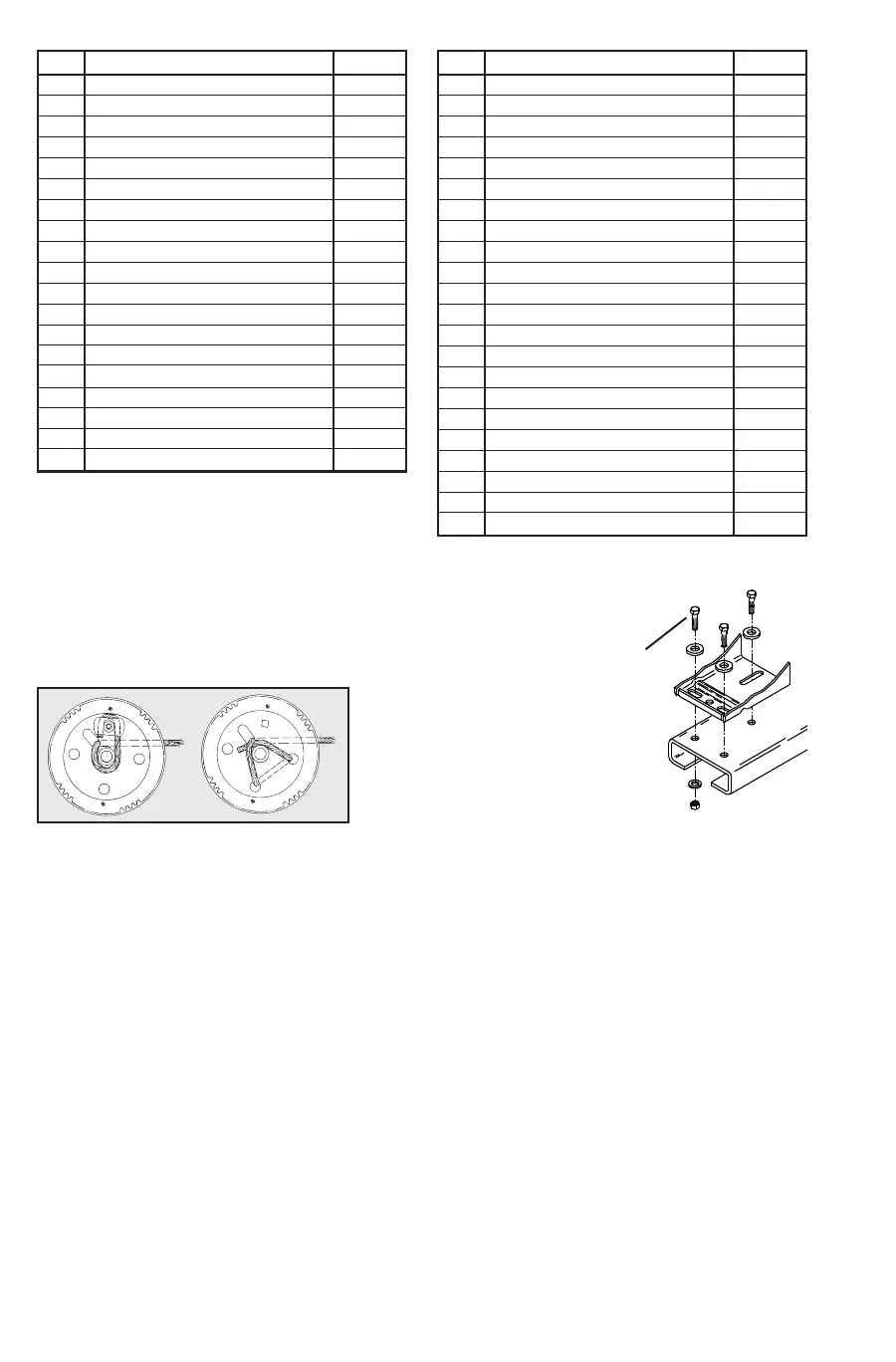

Dutton-Lainson DL1402A - Parts List; Component Identification and Part Numbers

3/8" or M10
Ref Description Part No.
A Base -
DL1402A 404870
*
B Bushing 204006
C E-Ring 205012
D Drive Shaft 304722
E Bushing 204007
F Handle
(6") w/Nut 5703657
F Handle
(7") w/Nut 5703046
F Handle
(9-1/2") w/Nut 5703251
H Locknut 204803
J Reel Shaft -
DL1402A & DL1602A 203161
K Spacer -
DL1402A & DL1602A 204807
L Rope Clamp Kit 5243506
P Reel 304723
*
P Reel (1-7/8" Hub) 306062
*
Q Ratchet Kit - DL1402A and DL1602A 5704556
Q Ratchet Kit -
DL1802A and DL2102A 5704754
W Strap, Opt. - 20' 5242607
X Hand Winch Cover Kit,
Opt. 5241203
Z Gear Cover Kit -
DL1402A, Opt. 5153689
Ref Description Part No.
AA Base -
DL1602A 404874
*
AA Base - DL1802A 404884
*
AA Base - DL2102A 406022
*
AB Bushing 204009
AC E-Ring 205116
AD Drive Shaft -
DL1602A 304725
AD Drive Shaft -
DL1802A & DL2102A 304731
AE Handle
(8") w/Nut 5146980
AE Handle
(9-1/2") w/Nut 5703236
AE Handle
(11") without Nut 5703558
AF Nut 204809
AG Reel Shaft -
DL1802A & DL2102A 205127
AH Spacer -
DL1802A & DL2102A 204808
AJ Reel -
DL1602A 304724
*
AJ Reel (2-1/2" Hub) - DL1602A 304769
*
AJ Reel (2-1/2" Wide) - DL1802A & DL2102A 304730
*
AJ Reel (2" Wide) - DL1802A & DL2102A 304779
*
AJ Reel (2-1/2" Hub) - DL1802A & DL2102A 304755
*
AK Gear Cover - DL1602A-PL, Opt. 5240221
AK Gear Cover -
DL1602A-BZ, Opt. 5240122
AK Gear Cover -
DL1802A/2102A-PL, Opt. 5240403
AK Gear Cover -
DL1802A/2102A-BZ, Opt. 5240387
*
Specify Color When Ordering
