DV Mark Triple 6 III - Technical Specs

TECHNICAL SPECS
Power Output: 120W (CLASS A/B)
Preamp Tubes: 3x ECC83
Power Tubes: 2x KT88 - 1x ECC83
Channels: 3
Controls: Gain - Master - Presence
EQ Controls: Low - Mid - High (passive)
Speaker Outputs:
. . . . . . . . 2x 4 ohm (total)
. . . . . . . . 2x 8 ohm (total)
. . . . . . . . 1x 16 ohm
Other features:
. . . . . . . . MIDI ports
. . . . . . . . Switch Loop Assign rotary control
. . . . . . . . Channels switch
. . . . . . . . Send FX level switch 0/-15 dB
. . . . . . . . Smart Controller
. . . . . . . . Voltage selector 120V/240V
Dimensions: 575 x 205 x 263 mm / 22.63” x 8.07” x 10.35”
Weight: 12.1 kg / 26.67 lbs
POWER REQUIREMENT: 100V; 120V; 230V; 240V - 50/60Hz
FUSES: T 4A 250V for 100V/120V setting;
T 2A 250V for 230V/240V setting
Input
Gain3
½ ECC83
High
Pass2
½ ECC83
Ch2/Ch3
High
Pass3
½ ECC83
½ ECC83
Gain2
Tone
control 2
Tone
control 3
Master 2
Master 3
Gain1
Passive
tone
control
Low Mid High
½ ECC83
½ ECC83
Master1
Send
Return
-10/+4dB
To PA
ReturnSend
Supply
On/Off
fuse
mains
Microcontroller
4 Ohm
ECC83
Output
transformer
KT88
KT88
8 Ohm
16 Ohm
Loop AssignCh select Smart
Controller
Midi In
Midi through
St/By
To PA

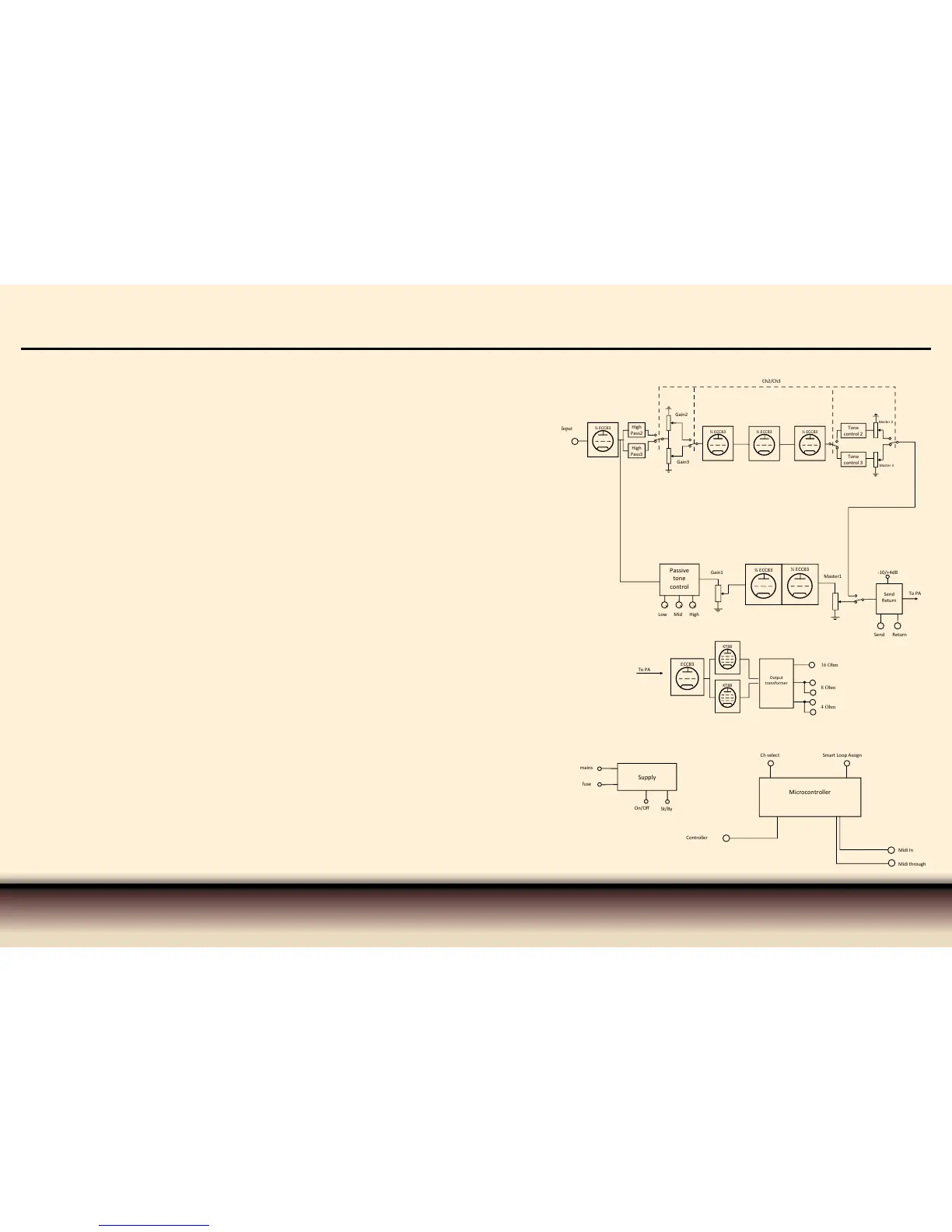

BLOCK DIAGRAM
8
