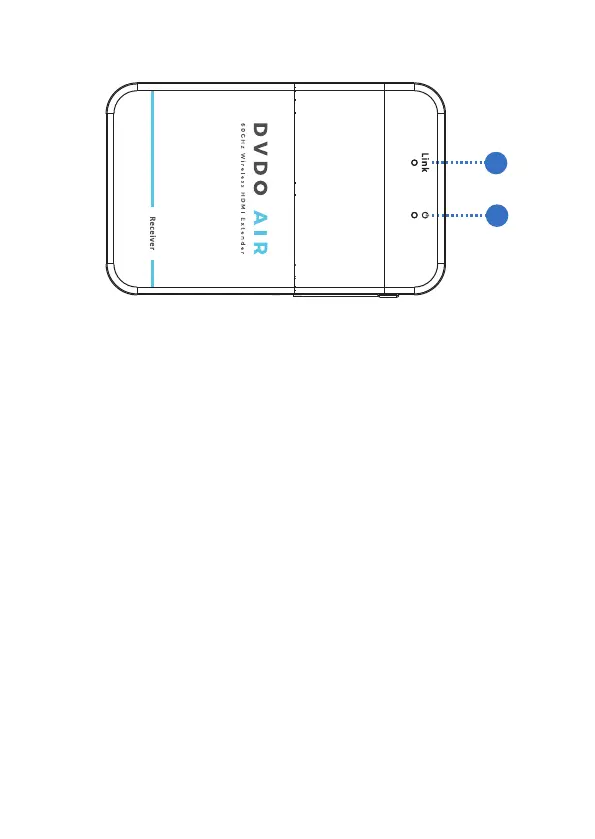

Receiver Front View
1.Link LED: The connection status indicating lamp.
◆ LED OFF: Means the adapter is powered OFF or in Sleep mode.
◆ LED Slow Blink: Means the adapter has started radio transmission and
has not yet found the other side of the link:
● If the adapter is a transmitter, the adapter is in Scan mode, searching
for a matching receiver.
● If the adapter is a Receiver, the adapter is in Beacon mode, searching
for a matching transmitter.
◆ LED Fast Blink: Means the adapters are associated, which means that
the receiver and transmitter have accepted each other and established
a network.
◆ LED ON: Means the transmitter and receiver adapters have established
an audio/video connection. At this point, the user should be able to see
this transmission happening on the display attached to the receiver.
2.Power LED: Illuminates when power has been supplied to the unit.
1
2
