TM-021 PN 35933
Rev 05/06/97
15

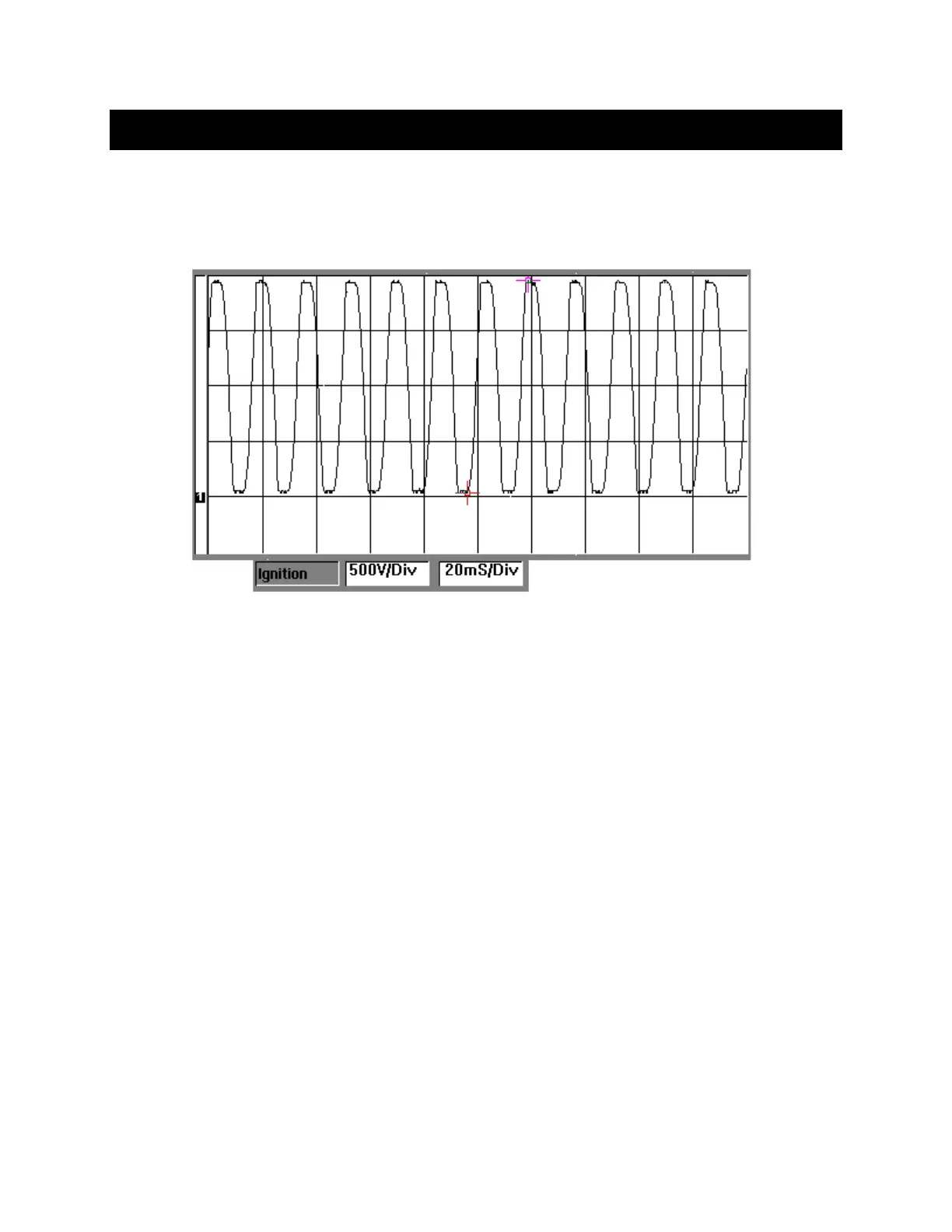

TROUBLESHOOTING (Figure 3)
Open Circuit Voltage From Lamp Output
Test Configuration: Remove Power
Remove Lamp/Reflector Assembly From Unit
Measurement Taken Across Lamp Output From Unit
Oscilloscope Setting: DC Coupling
20 ms / Div
500V / Div
Probe Connected Across Lamp Output (*Use a High Voltage
Probe*)
Open Circuit Voltage: 1900V peak
To Next Page
