Dyna-Flo DFC User Manual

Dyna-Flo Control Valve Services Ltd.
Edmonton, Alberta, CANADA
Website: www.dynaflo.com
Phone: 780
• 469 • 4000
Toll Free: 1 • 866 • 396 • 2356
Fax: 780 • 469 • 4035
Model
DFC Valve Actuator
Operation, Parts and Instruction Manuals
Instruction Manual May 2007
11
Our Commitment of Quality
Dyna-Flo is committed to continuous improvement. All efforts have been taken to maximize the accuracy of this
information. Without notification, product specifications and designs may be modified at any time. The issue of this
document is for information only, and does not imply suitability, a warranty, or guarantee for a specific service.
9
14
16
16
17
13
Lubriplate® Mag-1
or equivalent

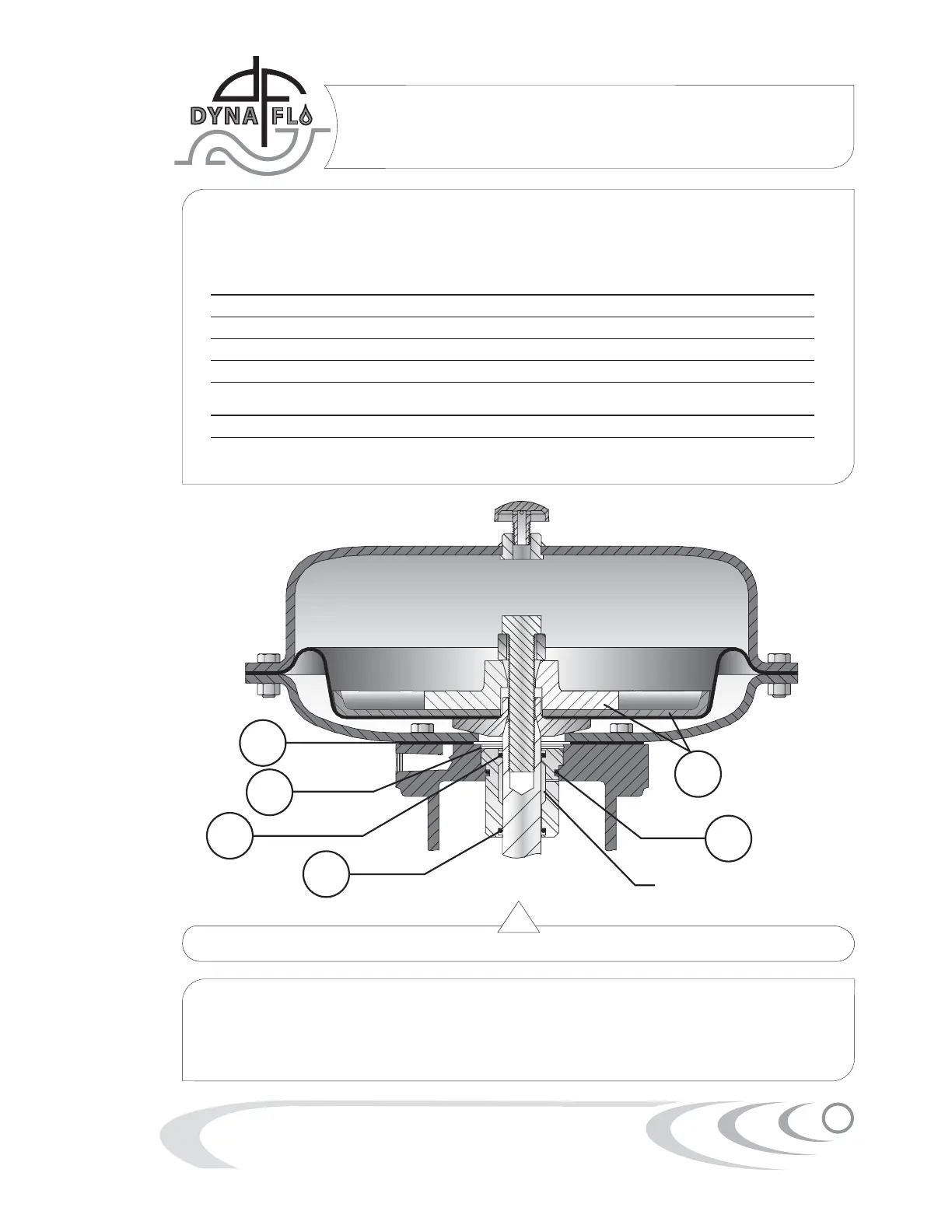

Figure 6 Model DFC Actuator Cross Section (2 Piece Diaphragm Plate Design)
Table 2
Model DFC Actuator Torque Chart
Actuator Stem Hex Head Bolt Torque (Key 11)
Actuator Size Ft-lbs. N•m
1069 30 41
2069 50 68
2105, 2156, 3105, 3156, 3220 135 183
Casing Cap Screws Torque (Keys 19 & 20)
All Sizes Ft-lbs. N•m
Full Torque 20 27
