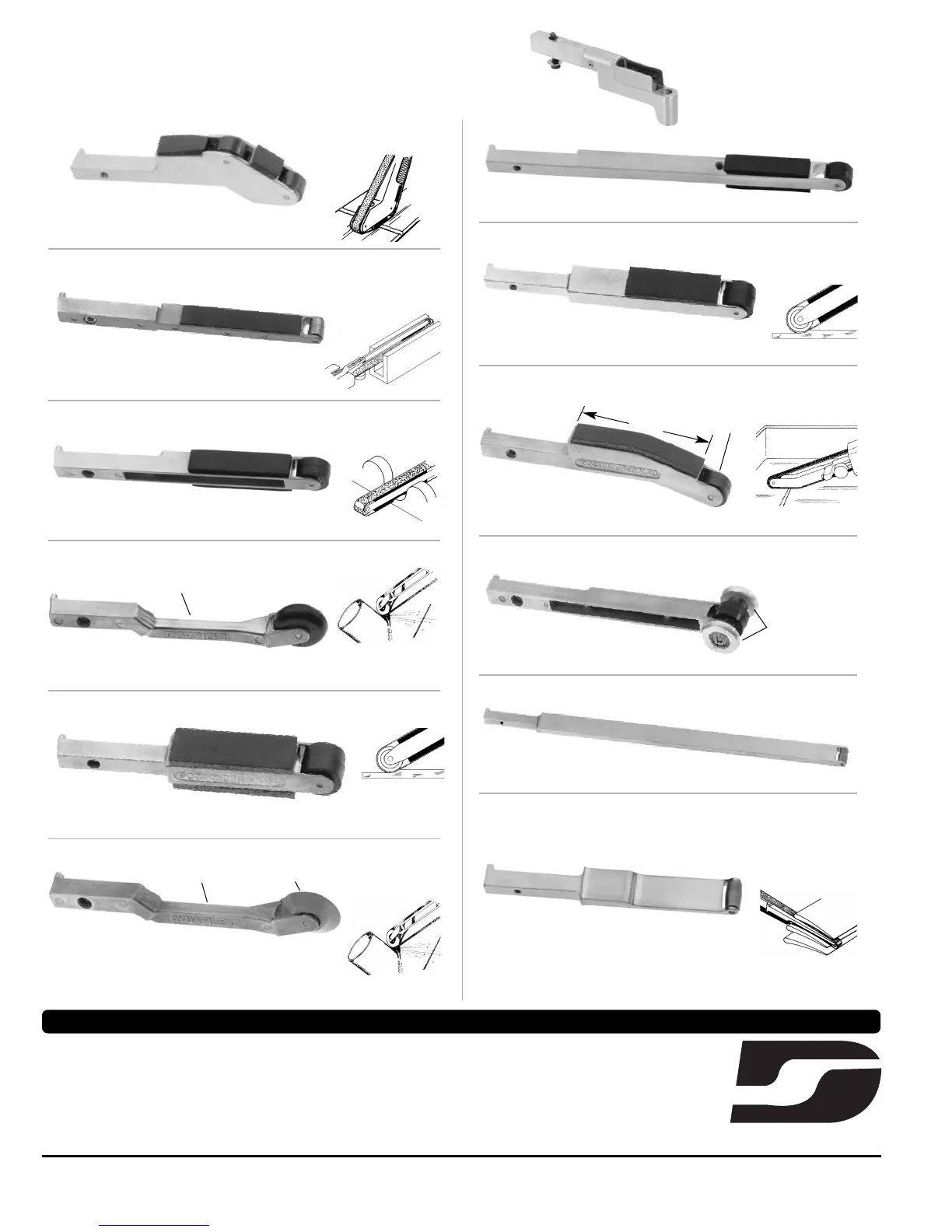

Electric Dynafile
®
II
Contact Arms
Optional 40078 Adapter allows use
of 24" long belts; extends reach to
7" when used with contact arm.
Arms for 4" to 12" workable reach.
45 PSI maximum.
Enter channels as
small as 7/16".
Belt Size: 1/2" W x 18" L.
Contact Wheel: 5/8" dia. x 3/8" W, rubber.
Platen: 1/2" wide.
Work on broad areas, leaves
in-line scratch, blend stainless.
11200
11024 steel platen available.
6-3/4" workable reach.
11286
Belt Size: 1/2" W x 24" L.
Contact Wheel: 5/8" dia. x 3/8" W, rubber. Platen: 1/2" wide.
Grind on contact wheel
or platen; has 5-1/4"
workable reach.
11201
Belt Size: 1/2" W x 18" L.
Contact Wheel: 5/16" dia. x 3/8" W, steel.
Platen: 1/2" wide.
11287* Uses 20-1/2" Belts
Belt Size: 5/8" or 3/4" W x 20-1/2" L
Contact Wheel: 3/4" dia. x 5/8" W, rubber. Platen: 3/4" wide.
11304 “The Banana Arm”
Work on broad areas;
leaves in-line scratch;
blend stainless.
Belt Size: 1/2" W x 18" L.
Contact Wheel: 5/8" dia. x 3/8" wide, rubber. Platen: 1/2" wide.
2-1/2"
Rubber
11322 Guide-Cut
Removes raised material within
.020" or less without undercutting.
Guide Wheels
Prevent Undercutting
Belt Size: 1/2" W x 18" L. 60 to 80 grit.
Contact Wheel: 5/8" dia. x 3/8" W, rubber.
11350* “Bus Bar”
Excellent for cleaning oxide
off electrical bus bars. Arm
has a 12" workable reach.
Belt Size: 3/4" W x 34" L.
Contact Wheel: 5/16" dia. x 5/8" W, steel. Platen: 3/4" wide, optional.
11220*, 11300*, 11301*, 11341*
Polish Turbine Blades
Offset design and miniature contact
wheels. 2" strap polish in offset area; pol-
ish turbine blades and other contours.
11203*
Order 11312 for heavy-duty version.
Grind over contact
wheel or platen.
Belt Size: 1/2" W x 18" L.
Contact Wheel: 5/8" dia. x 3/8" W, rubber. Platen: 1/2" wide.
11204 – “Unique Offset Design”
Strap polish is easy with this arm!
Belt Size: 1/4" or 1/2" W x 18" L.
Contact Wheel: 1" dia. x 3/8" W, rubber. Platen: None due to offset design.
11206*
Belt Size: 5/8" or 3/4" W x 18" L.
Contact Wheel: 3/4" dia. x 5/8" wide, rubber. Platen: 3/4" wide.
taperedStrap polish here
Order 11326 for Heavy Duty/Steel Construction version.
11280
Belt Sizes: 11220 uses 5/8" or 3/4" W x 18" L.
All others use 1/2" W x 18" L.
Contact wheels description for each above arm:
11220: 5/16" dia. x 5/8" W, steel. 11300: 1/4" dia. x 3/8" W, steel.
11301: 5/16" dia. x 3/8" W, steel. 11341: 5/16" dia. x 3/8" W, rubber.
Belt Size: 1/4" W x 18" L.
Contact Wheel: 1" dia. x 3/8" wide, urethane, tapered.
Platen: No platen due to offset design.
Grind corners, enter
grooves, strap polish.
