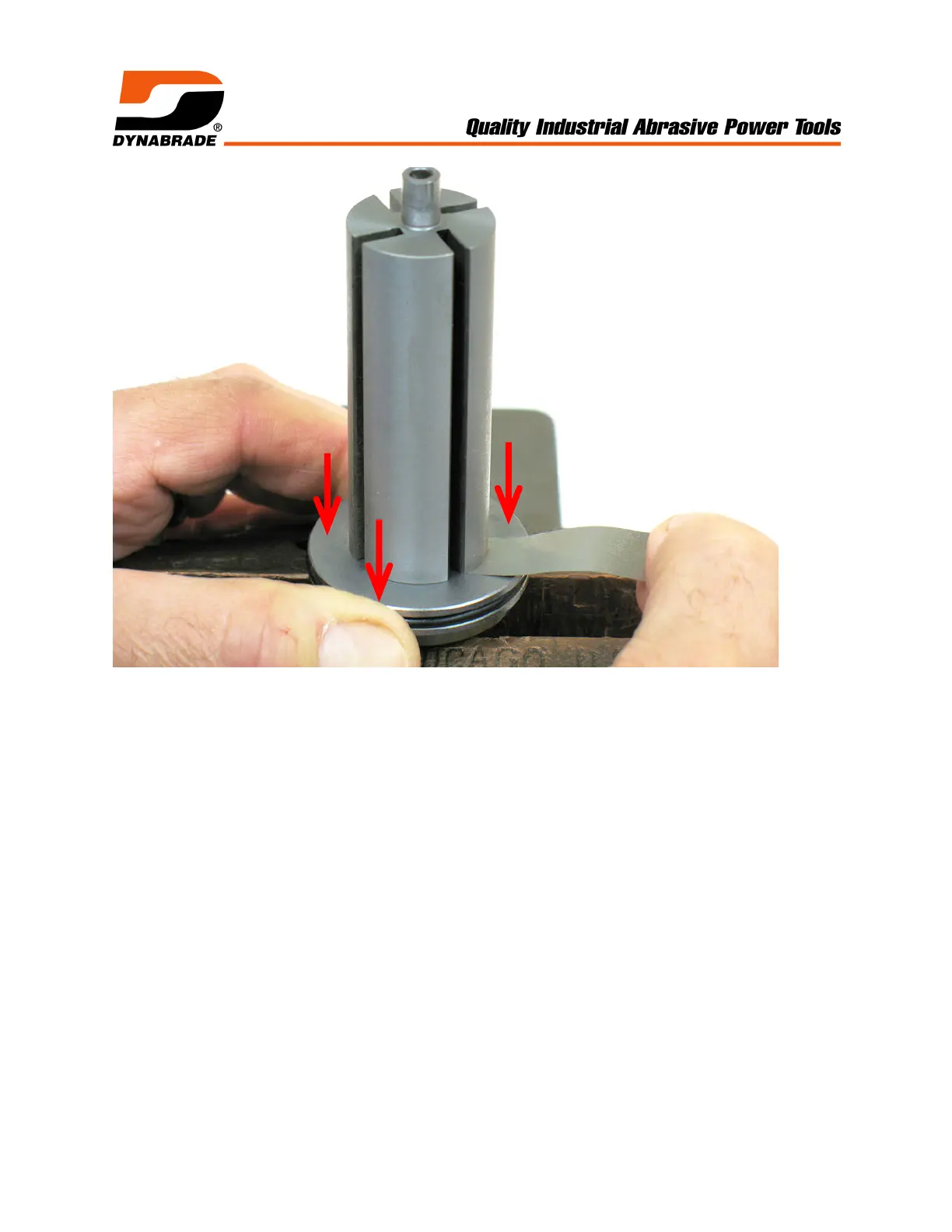

5. Carefully, fasten pinion gear in vise (bronze or aluminum jaws). Push the front-end
plate away from the rotor. Check clearance between the rotor and plate.
! Use a .001" (~0.03 mm) thick feeler gauge.
! Notice: The clearance should be .001"-.0015" (~0.03 to ~0.04 mm).
! If rotor/plate clearance requires further adjustment, repeat steps 2 to 5.
Remove or add shims as required.
.001"-.0015"
(~0.03-0.04 mm)
