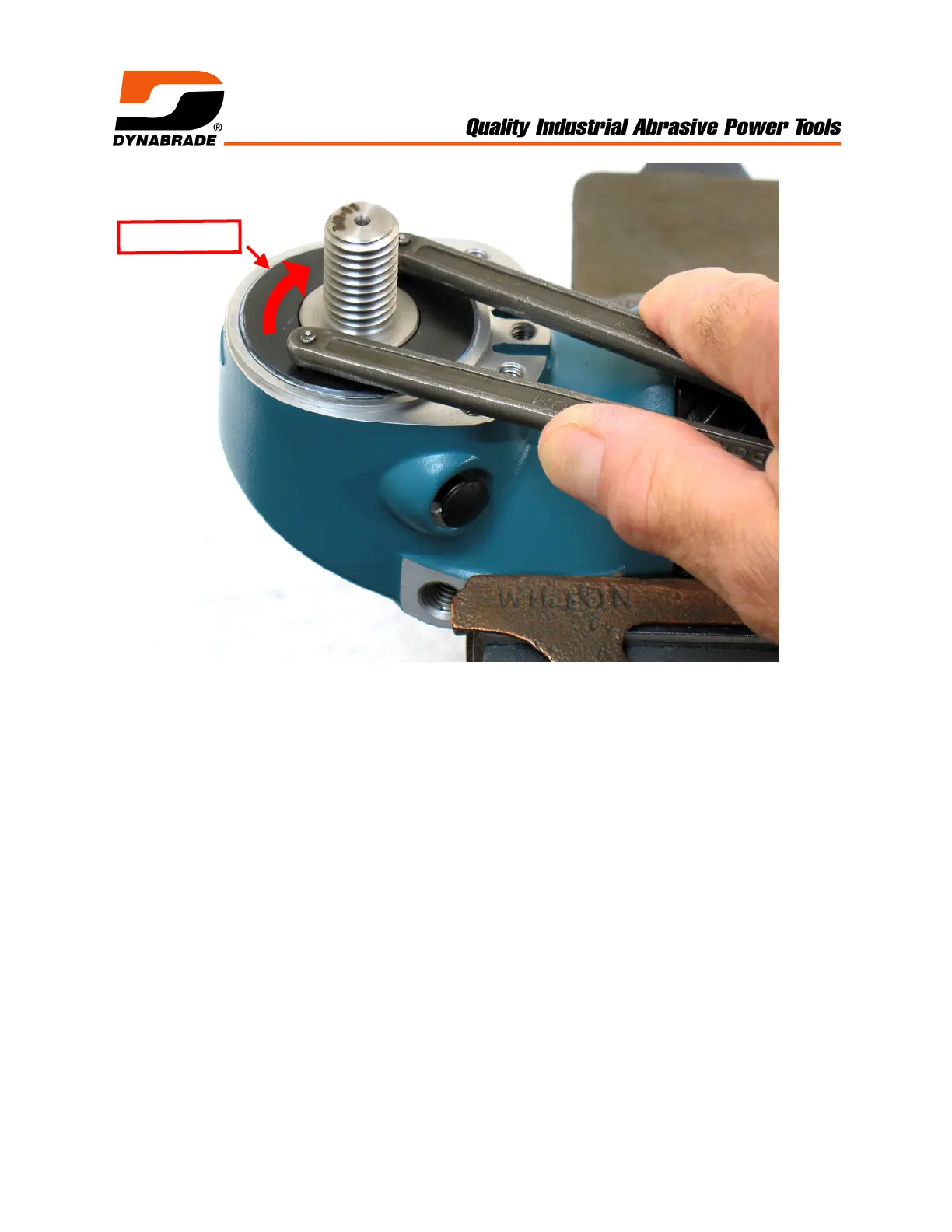

7. Apply a small amount of Loctite #567 to threads of 54952 Lock Ring.
! Use adjustable pin spanner (Ø 4mm pins) to install lock ring.
! Torque to 23 N•m/~200 lbs. in.
Right angle gear assembly completed.
Final Assembly:
Lubrication:
! Motor: Dynabrade recommends 1 drop of oil per minute for every 20 SCFM.
Example: Specification states 115 SCFM, set lubricator for ~6 drops/per minute.
! Gears: Replace grease at 1000 hours of use or when tool is rebuilt. Apply 14 grams
of 96747 Grease according to instructions.
Operation:
! Refer to tool manual and follow directions for checking RPM before installing any
accessories.
! Install guard and back-up flange. Use appropriate wrenches when installing
accessories and outer flange.
Torque to 23 N•m/~200 lbs. in.
