APPLICATION GUIDE
The Xa 5 System is a truly powerful, outstandingly com-
pact loudspeaker system offering superior efficiency in
medium and long throw applications.
The system is meant to be used in an active 2-way installa-
tion, i. e. together with the XA2600 system power ampli-
fier, or in a passive configuration, i. e. directly connected to
a PowerMate 1000, or together with any regular power
amplifier. Because of the horn-loaded system’s tremendous
SPL of 105 dB/1W/1m it is possible to achieve spectacular
dynamic results and – compared to conventional direct
radiating speaker systems – nearly double the long throw
capability. The Xa 5 System includes a F9CWH Mid/Hi
cabinet and two F5 sub woofers, on each side. When ope-
rating the Xa5 system in active 2-way confi-guration, the
recommended crossover frequency between the F5 sub
woofers and the F9CWH Mid/Hi cabinet is 160 Hz with a
slope of 18 dB/octave and Butterworth characteristics.
The DYNACORD XA2600 system power amplifier provides
these filter parameters as a factory preset.
Super-compact, horn-loaded system meant to be used for
medium throw applications with identical dispersion capa-
bilities. The Xa28 System is ideally suitable for medium
halls or clubs. Being equipped with two F17PWH Planar
Waveguide bass-horns, it is equally appropriate to provide
the sound reinforcement at pop/rock live concerts, deliver-
ing ”fat” bass drum and ”slappy” bass guitar sound.

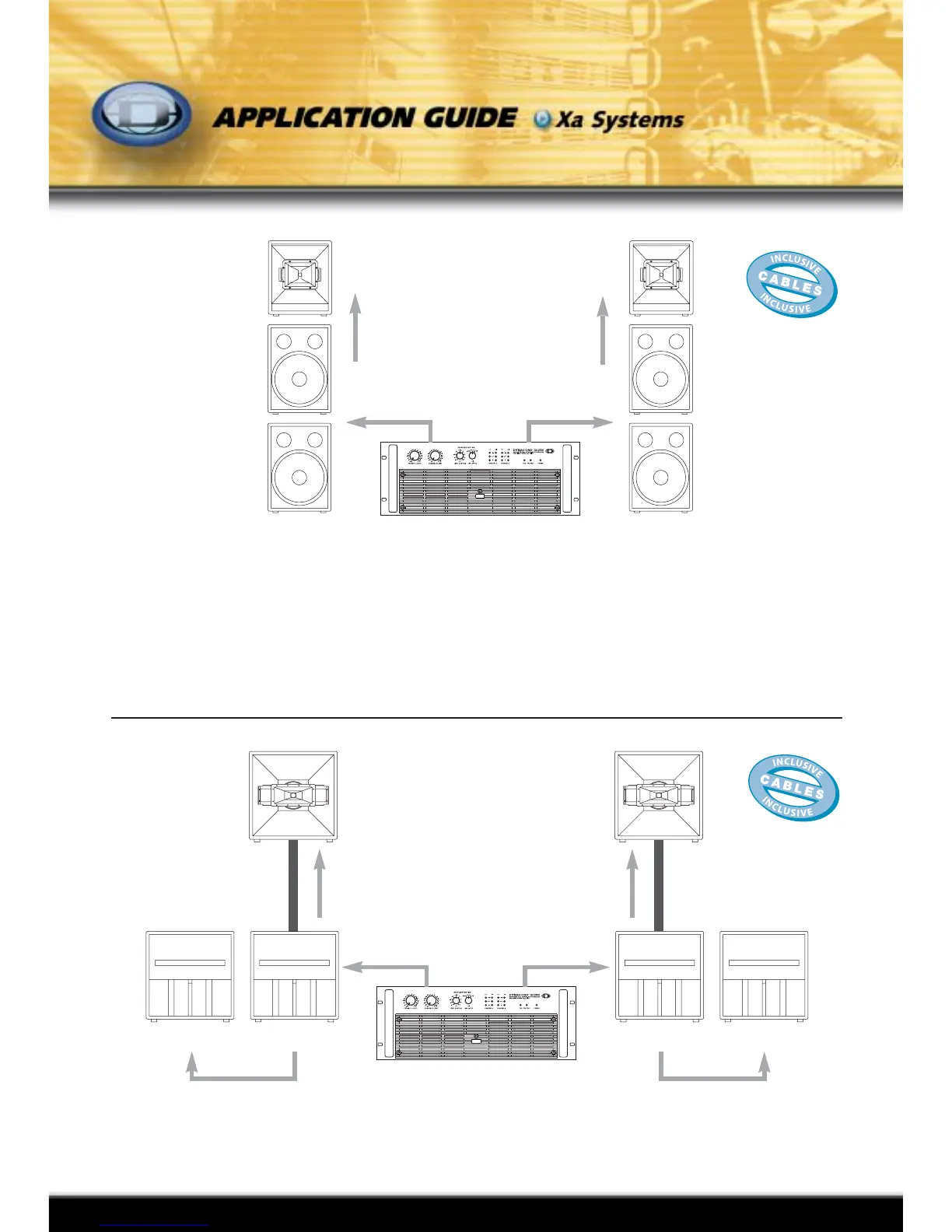

Lo + Hi
Xa 2600
F 12CWH F 12CWH
F 17PWH F 17PWH F 17PWH F 17PWH
Lo + Hi
Hi
Lo
Hi
Lo
Xa 28 System
Standard Configuration
Lo + Hi
Xa 2600
F 5
F 5
F 9
F 5
F 5
F 9
Lo + Hi
Hi
Hi
Xa 5 System
Micro
Medium / Long-Throw
Audio System
