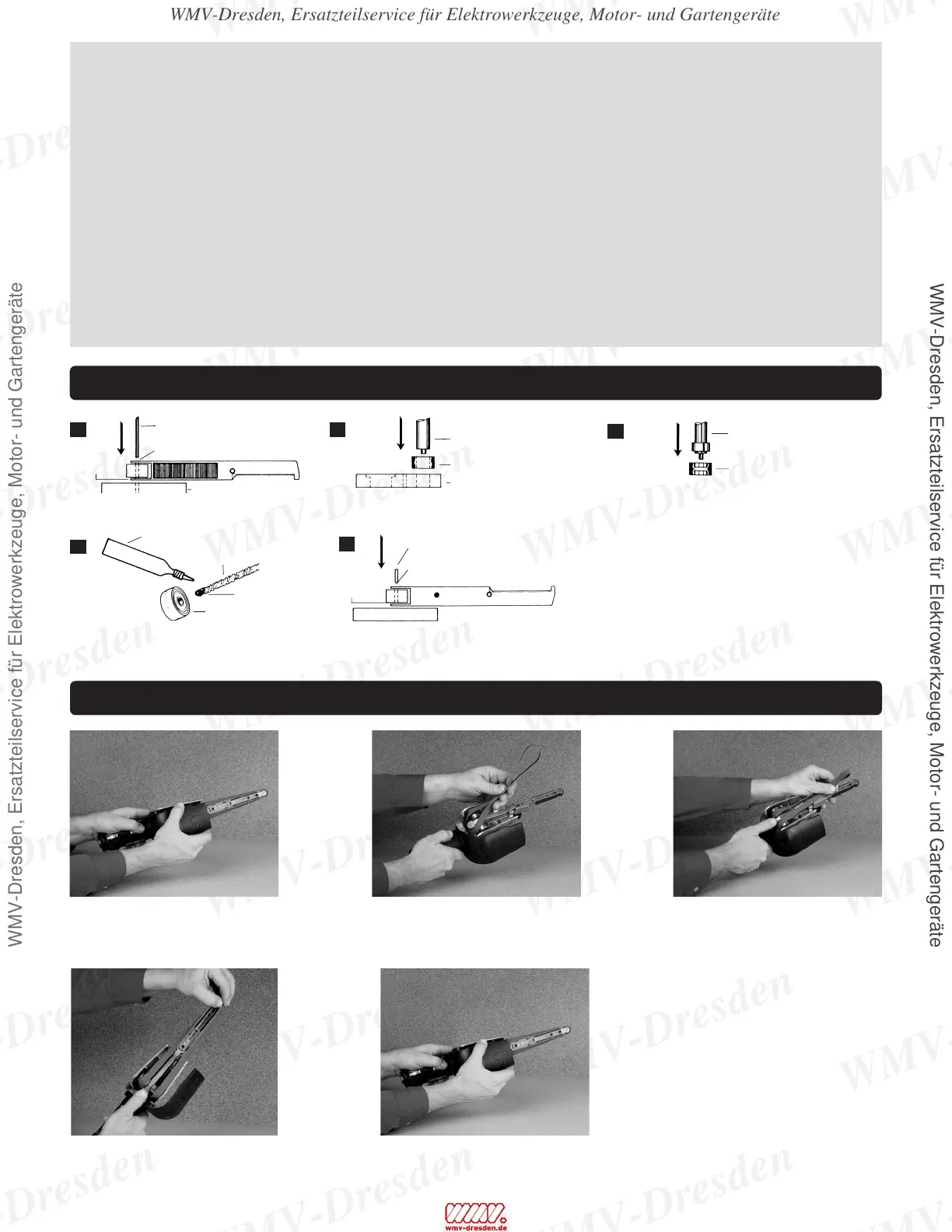

Contact Arm Assembly/Disassembly Instructions
Abrasive Belt Exchange Instructions
11275 CONTACT WHEEL SHAFT
REMOVAL TOOL
11271 WHEEL POSITION BLOCK
11271 WHEEL POSITION BLOCK
11276 BEARING REMOVAL TOOL
FOR 1/4" ID CONTACT WHEEL
11277 BEARING REMOVAL TOOL FOR
3/8" ID CONTACT WHEEL
11274 CONTACT WHEEL BEARING
MOUNT TOOL
11279 CONTACT WHEEL SHAFT
ADHESIVE
CONTACT WHEEL SHAFT
SLIP FIT
PRESS
FIT HERE
BEARING
PRESS FIT
SLIP FIT
CONTACT WHEEL
CONTACT WHEEL
REMOVE OLD BEARING FROM WHEEL
PRESS BEARING INTO EACH SIDE OF WHEEL
INSTALL NEW SHAFT
REMOVE CONTACT ARM FROM MACHINE.
PRESS CONTACT WHEEL SHAFT OUT OF CONTACT ARM.
MOISTEN TIP OF PIPE CLEANER WITH CONTACT WHEEL
SHAFT ADHESIVE AND APPLY TO ID OF BEARINGS BEFORE
INSTALLING PROPER SHAFT.
DO NOT GET ADHESIVE ON FACE OF BEARING.
INSERT INTO
BORE OF BEARING
PIPE CLEANER
11271 WHEEL POSITION BLOCK
5
4
1
2
3
2
OPERATING INSTRUCTIONS (continued)
• Keep hand and clothing away from working end of the air tool.
• Be sure that any loose clothing, hair and all jewelry is properly restrained.
• Secure inlet bushing on air tool with a wrench before attempting to install the air fitting to avoid damaging housing assembly.
• Check tool RPM (speed) with tachometer with air pressure set at 90 PSIG while the tool is running. If tool is operating at a higher speed than the RPM marked on the tool
housing, or operating improperly, the tool must be serviced and corrected before use.
Caution: Tool RPM must never exceed abrasive/accessory RPM rating. Check accessory manufacturer for details on maximum operating speed or special
mounting instructions.
• Disconnect air hose from tool when changing belts and contact arms.
• Connect air tool to power source. Be careful NOT to depress throttle lever in the process. Do not expose air tool to inlet pressure above 90 PSIG or (6.2 Bars).
Caution: After installing the accessory, before testing or use and/or after assembling tool, the Dynafile
®
must be started at a reduced speed to check for good balance.
Gradually increase tool speed. DO NOT USE if tool vibration is excessive. Correct cause, and retest to insure safe operation.
• Make sure that work area is uncluttered, and visitors are at a safe range from the tools and debris.
• Use a vise or clamping device to hold work piece firmly in place.
• Do not apply excessive force on tool or apply “rough” treatment to it.
• Always work with a firm footing, good posture and proper lighting.
• Make sure that work area is uncluttered, and visitors are at a safe range from the tools and debris. Potentially explosive atmospheres can be caused by dust and fumes
resulting from sanding or grinding. Always use dust extraction or suppression systems which are suitable for the material being processed.
Report to your supervisor any condition of the tool, accessories, or operation you consider unsafe.
1
2
4
5
3
With your thumb, pull and slide
guard open in a clockwise direction.
Form a loop in belt keeping the belt splice
between fingers as shown in photo above.
Slip lower loop of belt under the drive wheel.
Depress idler arm lever and pull belt
toward the contact wheel.
Slip belt over contact wheel. Release
idler arm lever. Operate on the contact
wheel or on the return side of the belt.
Completely close the guard.
